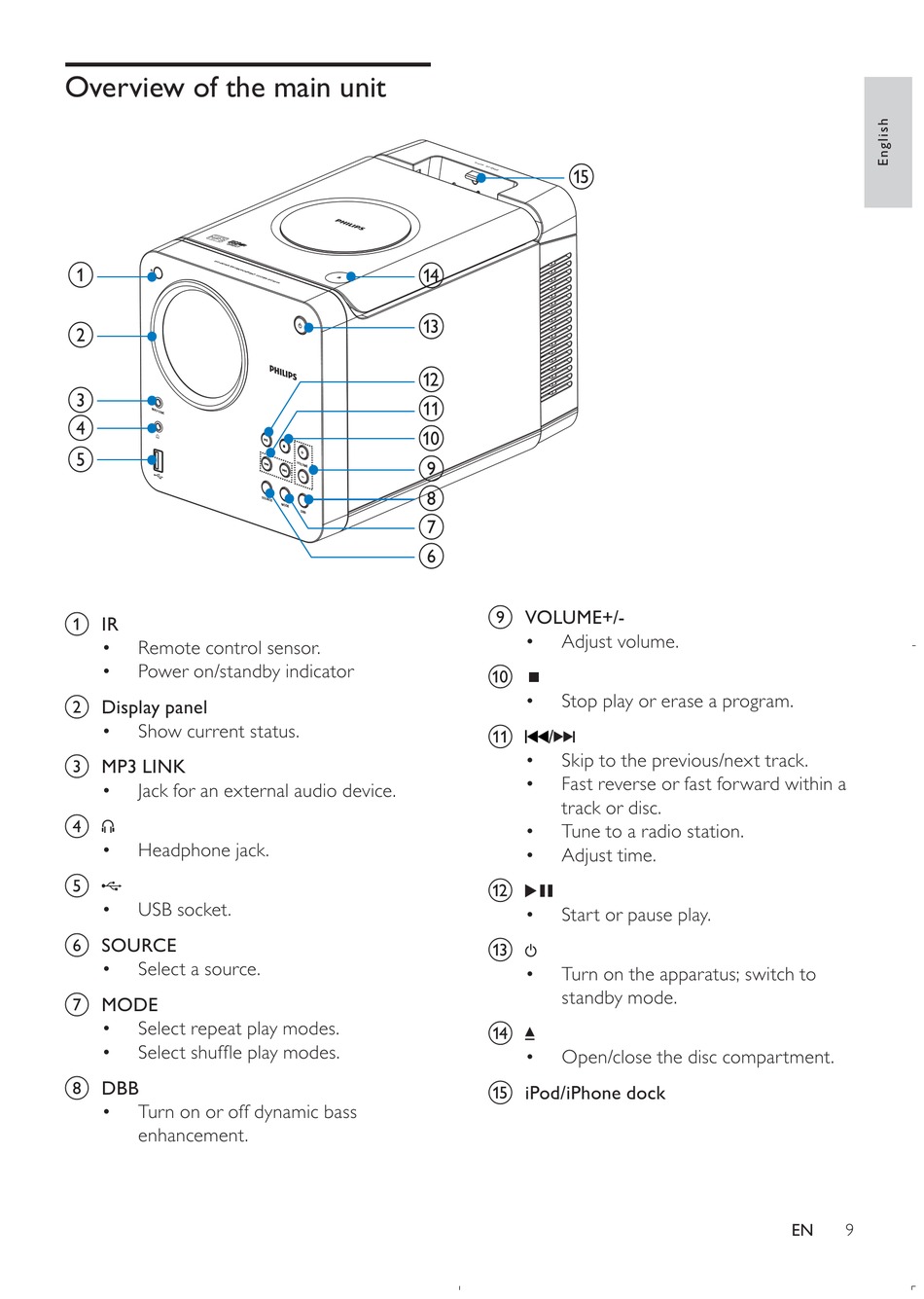

Overview of the main unit

a
b
c
d
e
a IR
Remote control sensor.
Power on/standby indicator
b Display panel
Show current status.
c MP3 LINK
Jack for an external audio device.
d
Headphone jack.
e
USB socket.
f SOURCE
Select a source.
g MODE
Select repeat play modes.
h DBB
Turn on or off dynamic bass
enhancement.
o
n
m
l
k
j
i
h
g
f
i VOLUME+/-
Adjust volume.
j
Stop play or erase a program.
k
/
Skip to the previous/next track.
Fast reverse or fast forward within a
track or disc.
Tune to a radio station.
Adjust time.
l
Start or pause play.
m
Turn on the apparatus; switch to
standby mode.
n
Open/close the disc compartment.
o iPod/iPhone dock
EN 9
