aspenhome IUAB-301-1 Assembly Instructions

LIFT DESK ASSEMBLY INSTRUCTIONS FOR
LIFT MECHANISM MODEL # IUAB-301-1

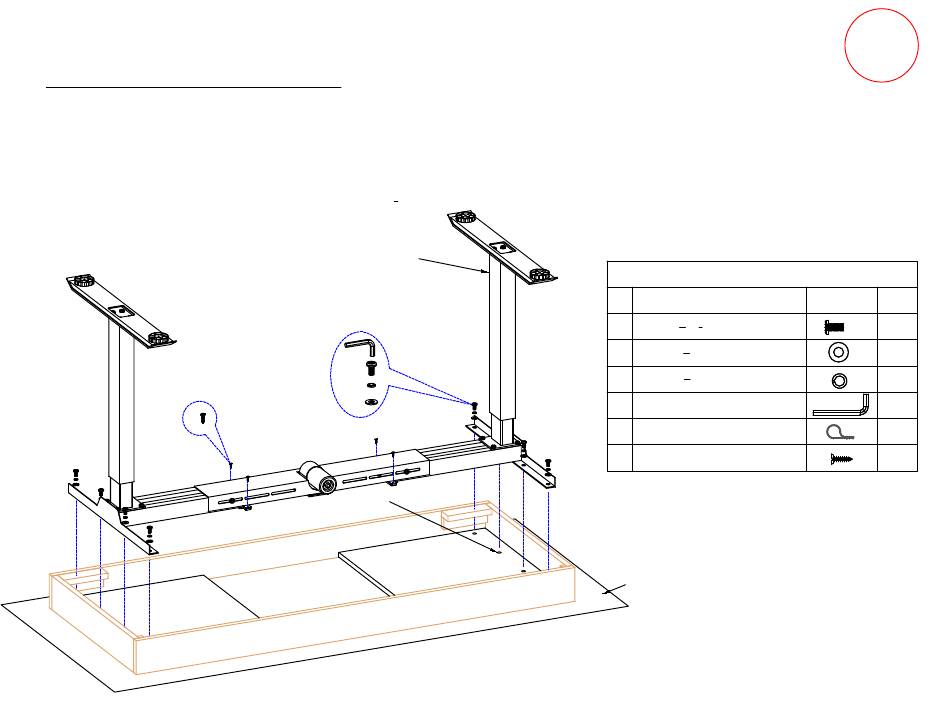

ATTACHING ADJUSTABLE DESK BASE TO DESK TOP
1. TO AVOID SCRATCHING DESK TOP & FLOOR SURFACE, BEFORE OPENING BOXES, PLACE A PROTECTIVE BLANKET DOWN.
2. UN-BOX THE ADJUSTABLE DESK BASE AND FOLLOW THE ASSEMBLY INSTRUCTIONS PROVIDED
3. UN-BOX DESK TOP AND WITH THE AID OF A SECOND PERSON, ROTATE DESK TOP AND PLACE ONTO BLANKET.
4. WITH THE AID OF A SECOND PERSON, ROTATE ADJUSTABLE DESK BASE, PLACE IT ON BOTTOM OF DESK TOP AND LINE UP ADJUSTABLE DESK BASE HOLES WITH
DESK TOP INSERTS (FOR ADJUSTING DESK BASE WIDTH READ ASSEMBLY INSTRUCTIONS PROVIDED)
5. SECURE ADJUSTABLE DESK BASE TO DESK TOP USING THE (8)
DO NOT OVER TIGHTEN!)
F
079HWPACK-74-1 INST
5
CAP SCREWS PROVIDED IN THIS DESK TOP HARDWARE PACK. (TIGHTEN CAP SCREWS UNTIL SNUG,
8
ADJUSTABLE DESK BASE
(SOLD SEPARATELY)
E
A
C
B
THREADED
INSERTS
DESK TOP
(BOTTOM VIEW)
HARDWARE LIST
No. Description
5 5
A " X " CAP SCREWS
16 8
5
B " WASHERS
16
5
C " LOCK WASHERS
16
D ALLEN HEAD KEY
E PLASTIC WIRE CLIPS
F WOOD SCREWS
PROTECTIVE BLANKET
74-1
Sketch Quantity
8 PCS
8 PCS
8 PCS
1 PCS
6 PCS
10 PCS
PAGE 1 OF 2
