Adjustments - Dynamic Mounting Center Speaker Bracket Installation Directions

1. The Center Speaker Bracket is designed to attach a Center Speaker or Sound Bar to the TV Mount
above or below a TV attached to the Down and Out Mount. See Page 4 for "Size Restrictions"
2. The bracket comes assembled for mounting the speaker below the TV.
3. See Figure 2 for mounting the speaker above the TV.
4. It is recommended to layout the TV, Down and Out Mount, Speaker Bracket and Speaker on the floor
before drilling holes in the wall. Remember Mantel Clearances still apply for the Speaker.

Adjustments

1. The Speaker Bracket has a lot of adjustment to account for most TV-speaker combinations; it will take
careful planning to find the best setup for you. See Page 4 for "Size Restrictions"
2. Horizontal Adjustment is made by moving the Speaker Hook Arms along the TV Mount Hook Plate; it is
also possible to angle the Speaker Bracket side to side as needed.
3. Vertical Adjustment is made by removing the #10x2in Carriage Screws as needed and sliding the
Vertical Support up and down on the Speaker Hook Arms. For the sturdiest setup keep the Carriage
Screws as far away from each other as possible.
4. The Depth Support can be adjusted by loosening the #10 Locknuts with a 3/8in wrench. They can also
be swapped around to get more adjustment, see Figure 1 for more details.
5. There are 2 options to attaching the speaker to the bracket;
The first and recommended if possible, is to use a Phillips head screw to thread directly into
o
the back of the speaker. Use the #10 washer if it fits on the screw.
The Second is to use the #6 screw in the TearDrop Slot. Thread the screw in a little ways
o
and then hang the speaker on it.
counterclockwise to tighten) the speaker to the bracket. Double check that the connection
is solid.
Use the Hex Key supplied to attach (turn the screw

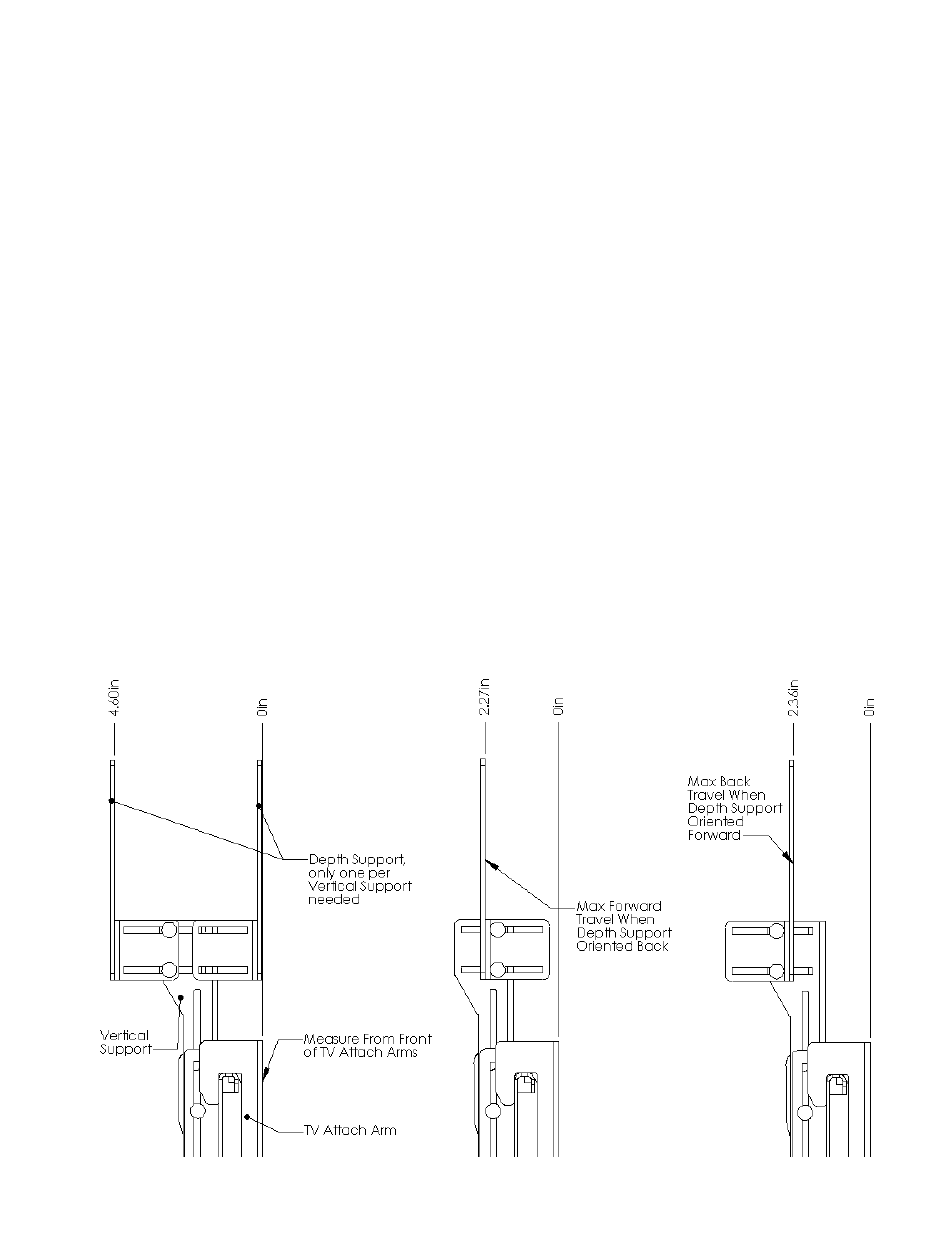

Figure 1 Depth Adjustment
- 2 –
