DeLonghi EO141164 Manual

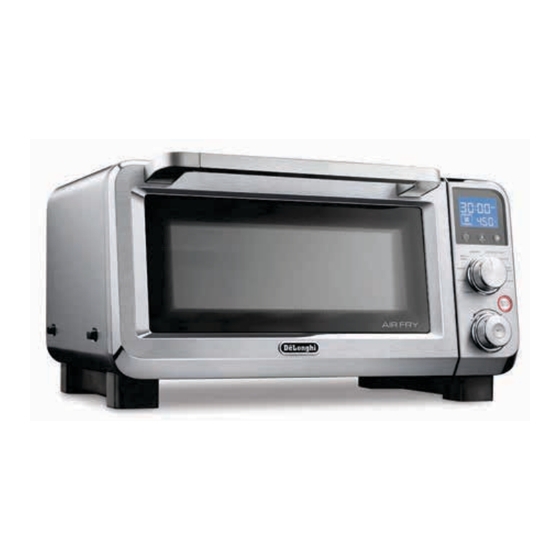

Air fry convection oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.delonghi.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EO141164 and is the answer not in the manual?

Questions and answers

Related Manuals for DeLonghi EO141164

Summary of Contents for DeLonghi EO141164

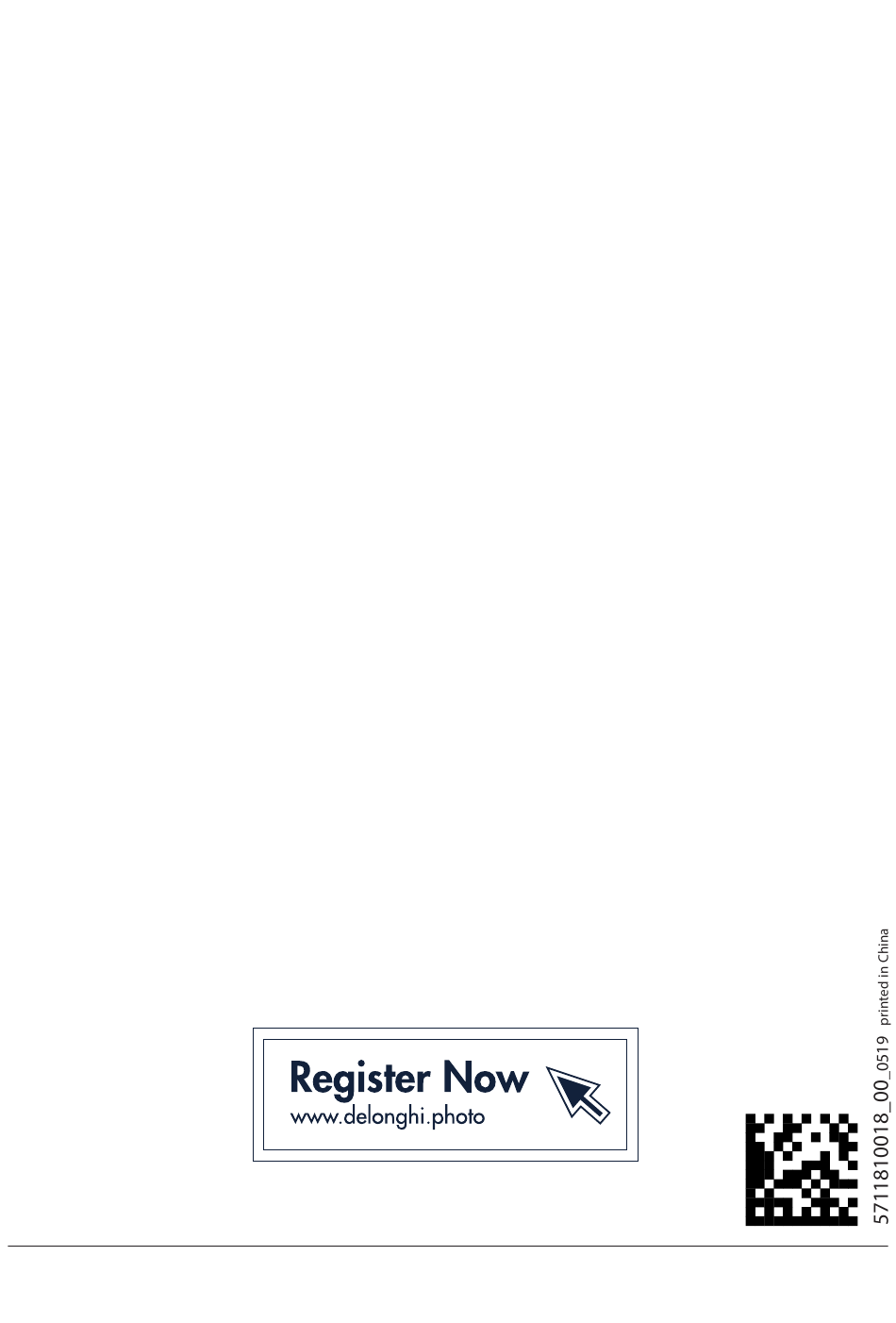

  • Page 1 www.delonghi.com...
  • Page 2 EO141164 AIR FRY CONVECTION OVEN FOUR À CONVECTION AIR FRY HORNO DE CONVECCIÓN AIR FRY...
  • Page 3 page 10 page 30 pág. 57...

  • Page 5: Table Of Contents

    CONTENTS ELECTRICAL CONNECTION Only use a three-pin, 120 Volt, 60 Hz power outlet ELECTRICAL CONNECTION ............4 GROUNDING INSTRUCTIONS IMPORTANT SAFEGUARDS ............5 TECHNICAL SPECIFICATION .............6 DESCRIPTION OF THE APPLIANCE ...........6 INSTALLATION .................6 ERROR MESSAGE ..............7 SETTING THE CLOCK ..............7 OVEN FUNCTION ..............7 FUNCTION SUMMARY TABLE ...........8 TOAST ..................10 CAUTION: MAKE SURE THAT THE PLUG IS CORRECTLY...

  • Page 6: Important Safeguards

    IMPORTANT SAFEGUARDS 11. Do not place the appliance above or near a gas or electric cooker. When using electrical appliances, a number of funda- 12. Use maximum care when moving the appliance or mental safety rules must be observed, including the accessories if they contain hot oil or other hot liquids.

  • Page 7: Technical Specification

    SAVE THESE INSTRUCTIONS DISPLAY WARNING: After having removed the appliance from its Toast color packaging, check that the door is intact. Timer/clock level indicator The door is made from glass and is therefore fragile. If Function icon it is visibly chipped, scored or scratched, it should be re- Temperature/ size/slices placed.

  • Page 8: Error Message

    ERROR MESSAGES If ERR message is shown on display, with relevant acoustic sig- nal, the oven had a malfunction. Press START/STOP button (M) for 5 seconds to reset the control and disconnect the plug from wall outlet. Check troubleshooting section. Set the minutes with Time/temperature/toast color/pizza size/ slices/ tray dial (N).

  • Page 9: Function Summary Table

    FUNCTIONS SUMMARY TABLE WIRE RACK AND BAKE FUNCTION TEMPERATURE TIMER RECIPES PAN POSITION Speci c for toasting slices of bread. (Auto selected) (Auto selected) TOAST wire rack in position 2 Ideal for: cakes 170°F - 450°F 1:00 (minutes) - lasagna 75°C - 230°C 2:00 (hours) BAKE...
  • Page 10 WIRE RACK AND BAKE FUNCTION TEMPERATURE TIMER RECIPES PAN POSITION Automatic program for perfect cookies. (Auto selected (Auto selected) and adjustable) wire rack in position 2 Automatic program for COOKIES cookies for the entire family. (Auto selected 2tr (*) (Auto selected) and adjustable) wire racks in position 1 and 3 Ideal for:...

  • Page 11: Toast

    TOAST Place the slices to toast (2, 4 or 6) on the wire rack (P) and insert in the oven in position 2. Set the desired level of toasting by turning the Time/tempera- ture/toast color/pizza size/slices/tray dial (N). For a better toasting result place the slices as shown. Press the START/STOP button (M) to start cooking.

  • Page 12: Bake

    Press the START/STOP button (M) to start cooking. BAKE The red ON light (T), that is located around the edge of the Turn the Function selection dial (L) in BAKE position. START/STOP button (M) , turns on. The oven starts the preheating phase. pre heat message is shown on display.

  • Page 13: Convection

    Press the START/STOP button (M) to start cooking. CONVECTION The red ON light (T), that is located around the edge of the Turn the Function selection dial (L) in CONVECTION position. START/STOP button (M) , turns on. The oven starts the preheating phase. pre heat message is shown on display.

  • Page 14: Broil/Grill

    The oven starts the cooking process. BROIL/GRILL Turn the food halfway through cooking. Place the food on the wire rack (P) and insert in the oven. No preheat is needed. The wire rack (P) and the bake pan (Q) must be positioned as shown in the gure (position 3 and over the lower heating el- ement).

  • Page 15: Pizza

    Turn the Time/temperature/toast color/pizza size/slices/tray PIZZA dial (N) to set the desired pizza size. Pizza is special automatic function that incorporates preset programs. Temperature, cooking time and cooking mode are automatically selected. Cooking time is extendable to desired cooking results, at the end of cooking process. Place the pizza on the pizza pan (R) and insert in the oven in position 1.
  • Page 16 level at maximum. Close the door and complete the cooking process. At half cooking time, rotate the two pizzas, placing the top one At the end of the set time the appliance will play a sound signal on the bottom rack and vice-versa. and the display will show 00:00 ashing.

  • Page 17: Air Fry

    AIR FRY Turn the Function selection dial (L) in AIR FRY position. NOTE: When cooking fatty foods (e.g. chicken wings) use the bake pan to prevent the oil dripping. Fit the air fry basket (V) with the bake pan (Q) as shown in the gure and turn the food halfway through cooking.

  • Page 18: Cookies

    COOKIES Cookies is special automatic function that incorporates preset programs. Temperature and cooking mode are automatically The oven starts the preheating phase and the display will show selected. Cooking time is adjustable for the desired cooking pre HEAT. When the oven reaches the set temperature, an results.

  • Page 19: Keep Warm

    If START/STOP button (M) is not pressed within 15 minutes, the WARM position. oven will automatically restart the function. At the end of the set time the appliance will play a sound signal and the display will show 00:00. Turn the Time/temperature/toast color/pizza size/slices/tray dial (N) to set the desired time.

  • Page 20: Reheat

    Press the START/STOP button (M) to start cooking. Slow cooker The red ON light (T), that is located around the edge of the The keep warm function, thanks to its low and accurate tem- START/STOP button (M), turns on. perature, it can also be used as a slow cooker. In this function the time can be set up to 6 hours.

  • Page 21: Care And Cleaning

    CARE AND CLEANING Frequent cleaning prevents the formation of smoke and bad odors during cooking. Do not let fat and food residues accumu- late inside the appliance. Before any maintenance or cleaning operation, unplug the oven and wait for it to cool down. Clean the door, the inside walls and surfaces of the oven with a soap and water solution;...

  • Page 22: Recipes List

    RECIPES LIST WIRE RACK FOOD ITEM QUANTITY AND BAKE PAN FUNCTION TEMPERATURE TIME POSITION 1.1 lb 450 °F AIR FRY 25-30min 500g 230°C Frozen potatoes 1 pound AIR FRY 425ºF 12-15 min 450g Beer Batter Shrimp 1 pound AIR FRY 400ºF 15 min 450g...
  • Page 23 WIRE RACK FOOD ITEM QUANTITY AND BAKE PAN FUNCTION TEMPERATURE TIME POSITION salt salt 1.5 lb 390 °F CONVECTION 30-35 min 700g 200 °C Quiche 1.0 lb 360 °F CONVECTION 35-40 min 500g 180 °C Bread 2.2 lb 360 °F BAKE 35-40 min 1000g...
  • Page 24 WIRE RACK FOOD ITEM QUANTITY AND BAKE PAN FUNCTION TEMPERATURE TIME POSITION 2.2 lb 400 °F CONVECTION 45-50 min 1000g 200 °C Fresh potatoes 2.2 lb 400 °F BAKE 25-30 min 1000g 200 °C Tomato gratin 360 °F CONVECTION 20-25 min 180 °C Frozen brioche 1.5 lb...

  • Page 25: Troubleshooting

    TROUBLESHOOTING ERROR POSSIBLE MESSAGE ON DESCRIPTION SOLUTION PROBLEMS DISPLAY Record the error number. The electronic control Disconnect the plug from wall outlet. E0:11 Temperature probe detected a malfunc- The temperature probe need to be replaced. malfunction tion on temperature Contact a De’Longhi customer service reporting the error probe number.
  • Page 26 ERROR POSSIBLE MESSAGE ON DESCRIPTION SOLUTION PROBLEMS DISPLAY Record the error number. Disconnect the plug from wall outlet. Check that vent openings located on bottom side or top The electronic control side of the oven are not obstructed by foreign objects E0:28 Electronic control cool- detected a malfunc-...

  • Page 27: Recipes

    RECIPES Directions Combine the panko, olive oil, salt, and garlic powder in a large bowl until well mixed. Whisk together the flour and ROSEMARY CHICKEN & POTATOES seltzer in another large bowl until smooth. Add the cau- Serves 4 liflower and toss until well coated. Toss the cauliflower, a Preparation Time: 10 minutes few pieces at a time, in the panko mixture until coated.
  • Page 28 PIZZA MARGHERITA WITH OLIVES small saucepan over medium-low heat. Cook, stirring oc- casionally, until the chocolate is melted and smooth. Re- Serves 6 move from the heat; stir in the vanilla. Cool 10 minutes. Preparation Time: 10 min 3. Whisk together the flour, baking powder, and salt in a Total Time: 30 min small bowl.
  • Page 29 JAM TART stantly, 1 minute. Add the milk and 1/2 tsp salt; bring to a boil. Reduce the heat and simmer, stirring occasionally, until the Serves 8 sauce thickens, about 8 minutes. Cover and set aside. Preparation Time: 15 min Turn the function dial to bake.
