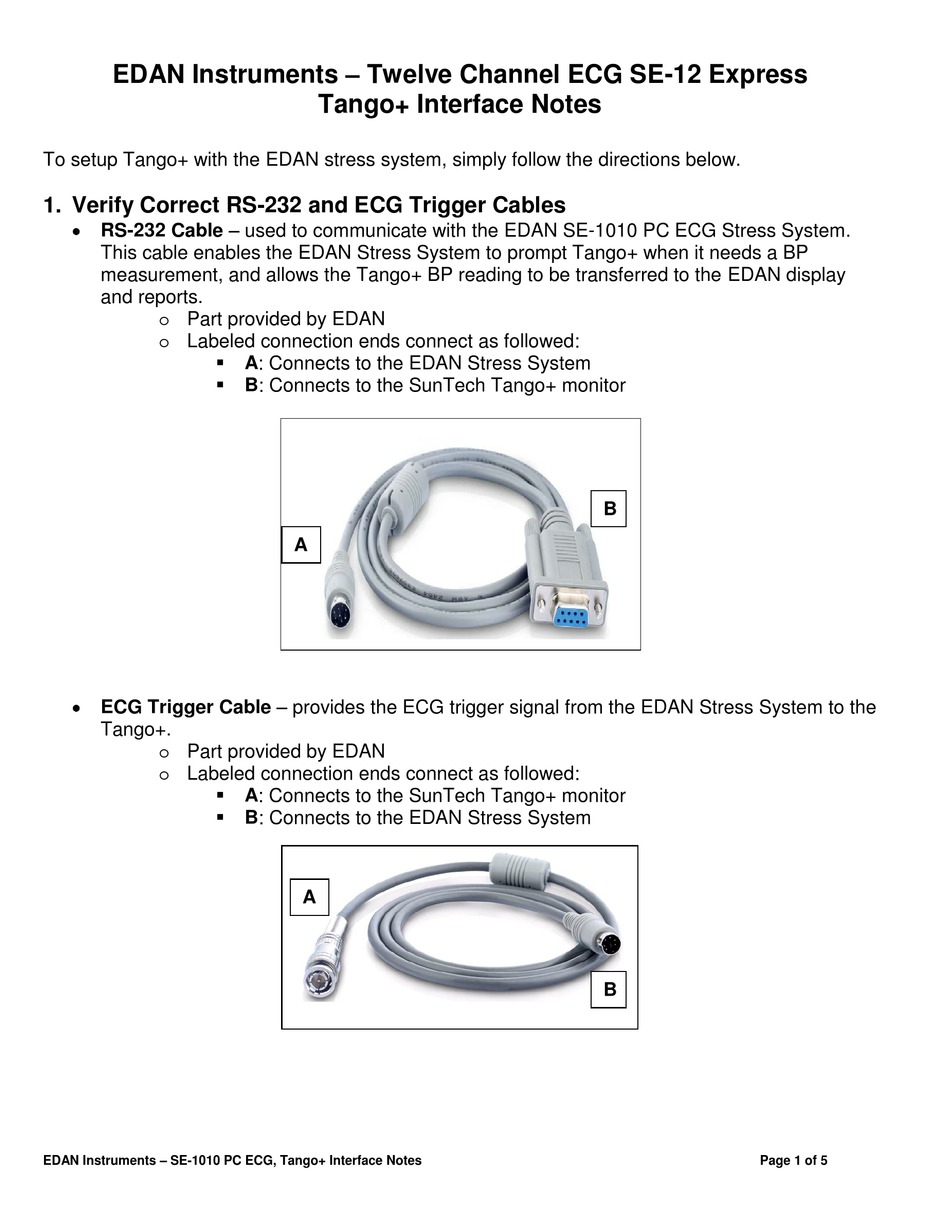

EDAN Instruments – Twelve Channel ECG SE-12 Express
To setup Tango+ with the EDAN stress system, simply follow the directions below.

1. Verify Correct RS-232 and ECG Trigger Cables

RS-232 Cable – used to communicate with the EDAN SE-1010 PC ECG Stress System.
This cable enables the EDAN Stress System to prompt Tango+ when it needs a BP
measurement, and allows the Tango+ BP reading to be transferred to the EDAN display
and reports.
o Part provided by EDAN
o Labeled connection ends connect as followed:
ECG Trigger Cable – provides the ECG trigger signal from the EDAN Stress System to the
Tango+.
o Part provided by EDAN
o Labeled connection ends connect as followed:
EDAN Instruments – SE-1010 PC ECG, Tango+ Interface Notes
Tango+ Interface Notes
 A: Connects to the EDAN Stress System
 B: Connects to the SunTech Tango+ monitor
A
 A: Connects to the SunTech Tango+ monitor
 B: Connects to the EDAN Stress System
A
B
B
Page 1 of 5
