MT-206/MT-207
Trolley 台车
           
Assembling Instruction
安装指南
EDAN INSTRUMENTS, INC.
深圳市理邦精密仪器有限公司
Manual Ver: 1.2
Release Date: Jan. 2010
Part Number: 01.54.101957-12

Advertisement

loading
Need help?

Need help?

Do you have a question about the MT-206 and is the answer not in the manual?

Questions and answers

Summary of Contents for EDAN INSTRUMENTS MT-206

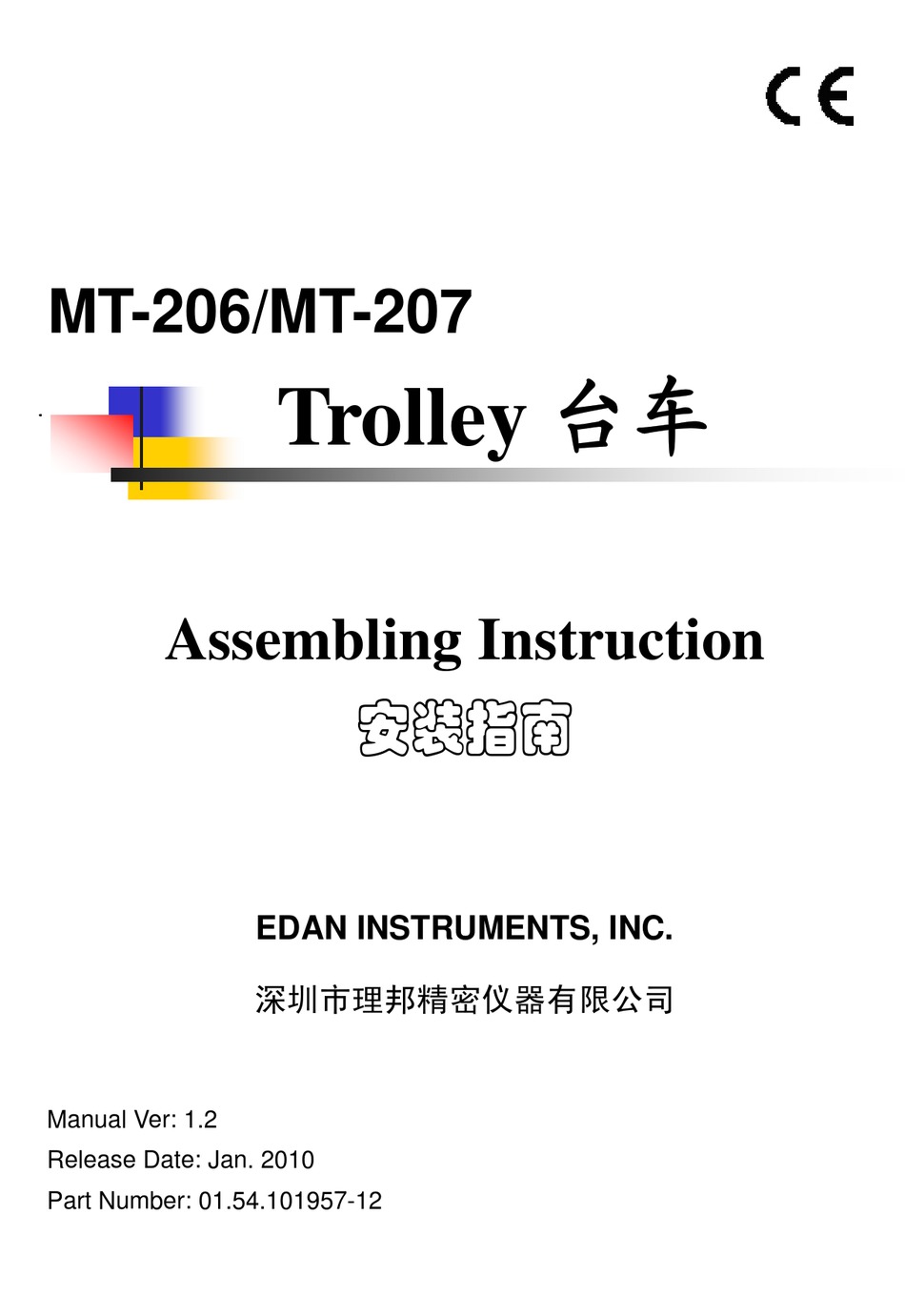

  • Page 1 MT-206/MT-207 Trolley 台车             Assembling Instruction 安装指南 EDAN INSTRUMENTS, INC. 深圳市理邦精密仪器有限公司 Manual Ver: 1.2 Release Date: Jan. 2010 Part Number: 01.54.101957-12...
  • Page 2 P/N: 01.54.101957-12 Table of Contents 目 录 Assembly Instruction..................1 装配说明 ....................9...
  • Page 3 MT-206/MT-207 Trolley Assembly Instruction WARNINGS 1 Assembling or disassembling of the Trolley should be performed by service personnel authorized by the manufacturer. 2 The maximum load of the top splint is 8 kg. Do not put heavy objects on it or lean on it.
  • Page 4 MT-206/MT-207 Trolley Assembly Instruction Caster Chassis Handrail basket Top splint and link board Stand post - 2 -...
  • Page 5 MT-206/MT-207 Trolley Assembly Instruction Major Parts M3/M3B top splint assembly M9/M8 series top splint assembly M3/M3B link board assembly M9/M8 series link board assembly Handrail basket Lower basket (optional) Basket flange(optional) Stand post Accessories D.E.F I (M3) I (M9) - 3 -...
  • Page 6 Cross recessed countersunk head screw M4×25 (only available for MT-207 fixed with M9/ M8 series monitors) Cross recessed pan head screw M3×12 (only available for MT-206 fixed with M3/ M3B monitors) 17# normal open spanner NOTE: 1 The I screws used for M3/M3B and M9/M8 series monitors are different.
  • Page 7 MT-206/MT-207 Trolley Assembly Instruction Procedure for Assembling Trolley: 1 Open the package and collate all the parts with the packing list. 2 Take the chassis assembly out and upturn it on the packing foam. Put an A washer and then a B washer on the bolt for each caster.
  • Page 8 MT-206/MT-207 Trolley Assembly Instruction 5 The top splint and link board are assembled together in package. Pull downwards the pin on the top splint, hold to slide them apart. Angle adjustment 6 Loosen two screws on the top splint to take off the rotary axis, then pull the rotary axis through the flange hole of lifter rod.
  • Page 9 MT-206/MT-207 Trolley Assembly Instruction 8 Level the handrail basket at the top two concave blocks and fix them with four H screws. NOTE: The edge of the handrail basket can be used as a handle to move the Trolley. 9 The lower basket and its concave are optional.
  • Page 10 MT-206/MT-207 Trolley Assembly Instruction 2 Lift the monitor and slide the link board into the groove of the top splint sideways. When the board goes halfway, pull down the pin on the back of the top splint to allow the board to go through. Keep pushing the board in until the pin rebounds and clicks into the hole.
  • Page 11 MT-206/MT-207 台车装配指南 警告 1 台车的装配和拆卸应由专业的售后服务人员进行。 2 台车顶托板最大承受重量是 8kg,请勿在上面放置其他重物或直接倚靠。 3 每 6 个月或者在每次维修后,必须由专业维修人员对台车进行一次全面性 检查,包括安全性检查。 4 本台车和可循环使用部件在有效的生命期限后必须按当地法律规定进行处 理或返回给制造商循环利用。 5 组装台车时请用十字螺丝刀拧紧所有螺钉。 小心 调节立管组件时,请小心不要夹到手。 注意: 1 以下安装步骤图以 M3 为例,台车还可通过不同的螺钉和转接板来安装至 M3B, M9, M9A, M9B, M8, M8A 和 M8B 监护仪。 2 安装前请确认脚轮是否转动正常。 3 在将监护仪安装到台车前,要确保台车已经正确且稳固地安装。 - 9 -...
  • Page 12 MT-206/MT-207 台车装配指南 脚轮 扶手篮子 底盘 顶托板和转接板 立管组件 - 10 -...
  • Page 13 MT-206/MT-207 台车装配指南 主要部件 M3/M3B 顶托板 M9/M8 系列顶托板 M3/M3B 转接板 M9/M8 系列转接板 扶手篮子 下篮子 (选配) 篮子法兰 (选配) 立管组件 附件 D.E.F I (M3) I (M9) - 11 -...
  • Page 14 MT-206/MT-207 台车装配指南 附件列表: 编号 名称 数量 (个) Ф12 标准弹簧垫圈 Ф12 标准平垫圈 3 寸医用脚轮 M10×50 螺栓 Ф10 弹簧垫圈 Ф10 平垫圈 M6×25 限位螺钉 M5×14 十字槽盘头螺钉 M4×25 十字槽沉头螺钉(仅适用于 M9/M8 系列监护仪) M3×12 十 字 槽 盘 头 螺 钉 ( 仅 适 用 于...
  • Page 15 MT-206/MT-207 台车装配指南 组装台车 1 打开纸箱,对照装箱单检查所有部 件; 2 将底盘翻过来平放在纸箱内的珍珠 棉上;在脚轮的螺杆上先放一个 A 垫圈,再放一个 B 垫圈,然后用供 的扳手分别把 5 个 C 脚轮锁到底座 上; 3 侧过底座,将立管组件插入底座槽 内,确保立管底部法兰上的凸出部 位对准底座槽内的小凹槽,将 D 螺 栓、1 个 E 垫圈和 1 个 F 垫圈装 好,然后从底座底部中轴小孔位置 将向上锁紧。 4 MT-207 台车底盘配有一个配重块, 旋转配重块的 3 颗螺钉将其取下。...
  • Page 16 MT-206/MT-207 台车装配指南 5 顶托板组件和转接板组件是包装在一起 的,将它们分开;稍微向下拉动顶托板 底部的销钉,同时顺着托板边缘凹槽的 方向推动转接板,直到与顶托板分离。 6 松开顶托板组件的上的 2 颗螺钉取下旋 转轴,将旋转轴穿过升降杆顶部法兰上 的通孔; 将 L 形角度调节手柄和 G 螺钉分别旋 入法兰上相对的两个螺钉孔,但不拧 紧。 注意: L 形角度调节手柄应位于法兰壁较薄的一 侧,G 螺钉位于较厚一侧。 7 把顶托板放到升降杆顶部法兰上,对准 旋转轴的螺钉孔位,并用步骤 6 中从顶 托板拆下的 2 颗螺钉锁紧; 然后拧紧 L 形角度调节手柄和 G 螺 钉。 - 14 -...
  • Page 17 MT-206/MT-207 台车装配指南 8 对准扶手篮子和升降杆上两个凹块 的螺钉孔,用 4 颗 H 螺钉锁紧。 注意: 扶手篮子的边缘即为扶手,可以用来 推动台车。 9 如果选配了下篮子及其凹块,先用 2 颗 H 螺钉将凹块锁到立管的适当 高度上,再对准下篮子和凹块上的 螺钉孔位,并用 2 颗 H 螺钉锁紧。 台车安装完成。 将监护仪安装到台车 1 将监护仪底面朝上,将带有安装孔和螺 钉孔的转接板放置好,用 3 颗 I 螺钉固 定好。 - 15 -...
  • Page 18 MT-206/MT-207 台车装配指南 2 抬起监护仪,将转接板从侧面对准 顶托板边缘凹槽并推入,推至一半 时用手拉下顶托板背面的销钉,使 转接板组件能顺利插入槽内,继续 推进直至销钉复位,此时转接板和 顶托板边缘应恰好完全对齐。 调节台车高度 : 销钉 角度调节手柄 警告: 为安全起见,调节台车高度时,建议 先取下监护仪(带转接板) ,再扶稳 松开螺钉 升降杆,以防手被夹伤或人被砸伤。 锁紧螺钉 1 扶稳升降杆,逆时针旋转调节手柄 松开升降杆,这时可以根据需要调 节升降杆高度。 2 最后顺时针旋转调节手柄,将升降 杆锁紧。 调节顶托板角度 : 1 扶稳顶托板,逆时针旋转顶托板下 的 L 形角度调节手柄以松开螺钉。 如果手柄受到顶托板阻挡而不能转 动,请将它往外拉出约 2mm 再逆 时针旋转,然后调整托盘到适当角 松开螺钉...
  • Page 19 EDAN INSTRUMENTS, INC. 3/F-B, Nanshan Medical Equipment Park, Nanhai Rd 1019#, Shekou, Nanshan Shenzhen, 518067 P.R. CHINA TEL: +86-755-26882220 FAX: +86-755-26882223 EC REPRESENTATIVE Shanghai International Holding Corp. GmbH (Europe) Eiffestrasse 80, D-20537 Hamburg Germany TEL: +49-40-2513175 FAX: +49-40-255726 E-mail: antonjin@yahoo.com.cn 深圳市理邦精密仪器有限公司...
