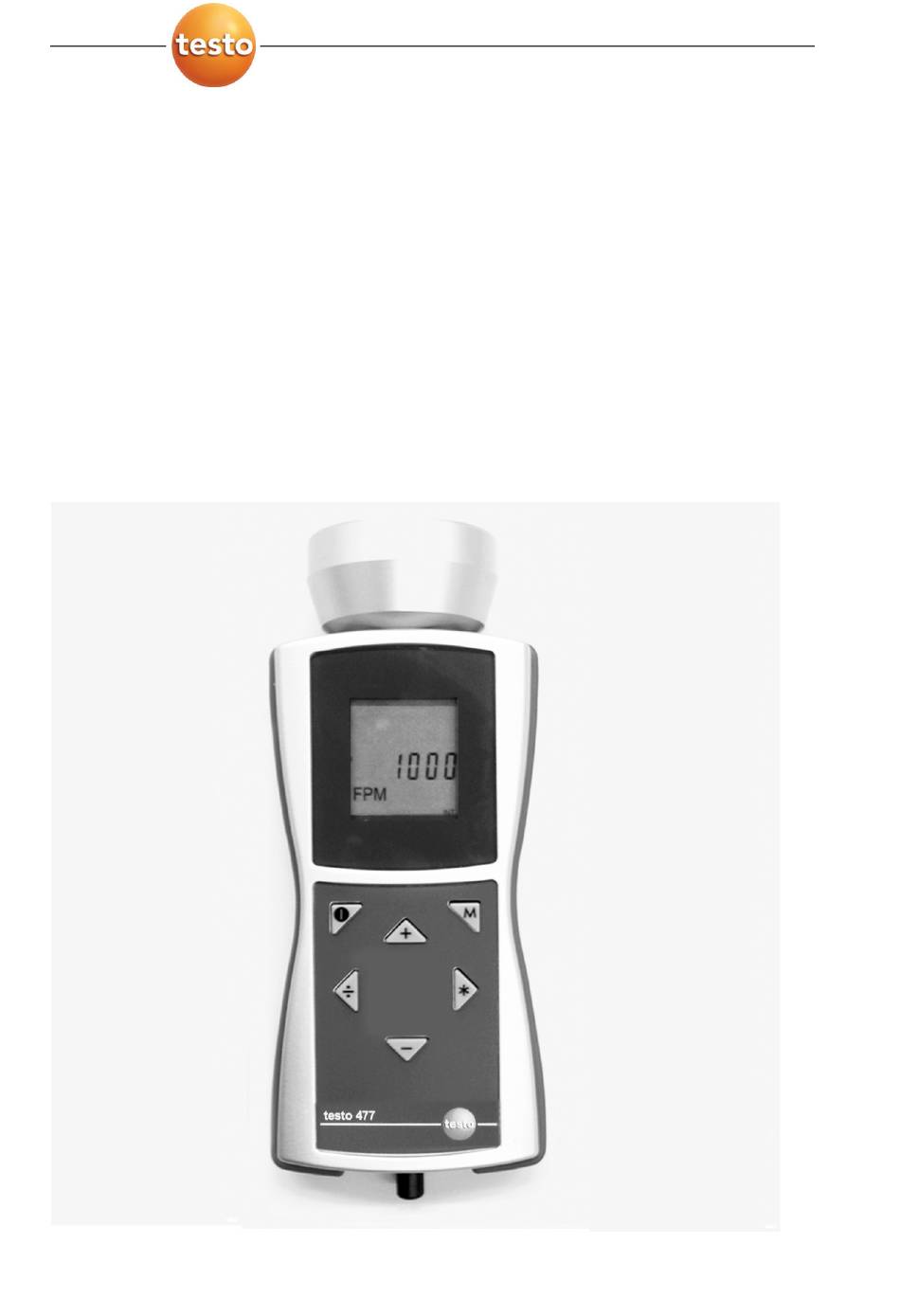

- Page 1 477 LED hand stroboscope Instruction manual...
-
Page 3: Table Of Contents
1 Contents Pos: 1 /TD/Überschriften/1. Inhalt @ 0\mod_1177587817070_79.doc @ 1243 @ 1 Contents Contents ....................25 Safety and the environment..............26 2.1. About this document ..............26 2.2. Ensure safety.................27 2.3. Protecting the environment............28 Specifications ..................29 3.1.....................29 3.2. Scope of delivery ................29 3.3. -
Page 4: Safety And The Environment
2 Safety and the environment Pos: 3 /TD/Überschriften/2. Sicherheit und Umwelt @ 0\mod_1173774719351_79.doc @ 292 @ 1 Safety and the environment Pos: 4 /TD/Überschriften/2.1 Zu diesem Dokument @ 0\mod_1173775252351_79.doc @ 346 @ 2 2.1. About this document Pos: 5 /TD/Sicherheit und Umwelt/Zu diesem Dokument/Verwendung (Standard) @ 0\mod_1173775068554_79.doc @ 337 @ 5 >... -
Page 5: Ensure Safety
> Only operate the product properly, for its intended purpose and within the parameters specified in the technical data. Do not use any force. Pos: 9 /TD/Sicherheit und Umwelt/Sicherheit gewährleisten/testo 477/Epileptischer Anfall @ 4\mod_1249047250843_79.doc @ 46948 @ WARNING Danger of injury! >... -
Page 6: Protecting The Environment
> At the end of its useful life, send the product to the separate collection for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. Pos: 16 /TD/--- Seitenwechsel --- @ 0\mod_1173774430601_0.doc @ 283 @... -
Page 7: Specifications
Pos: 18 /TD/Leistungsbeschreibung/Verwendung/testo 477 @ 4\mod_1249031406678_79.doc @ 46665 @ 2 3.1. The testo 477 can be used in many areas of industry, research & development, in laboratories and universities. Normally, the testo 477 is used when the aim is to show fast- moving objects in slow motion. -
Page 8: Technical Data
3 Specifications 3.3. Technical data General parameters Protection class IP 65 Frequency range 30 - 300,000 FPM (flashes per minute) Display LCD, multiline Accuracy 0.02 % (+/- 1 digit) Resolution +/- 0.1 (30 to 999 FPM) +/- 1 (1000 to 300,000 FPM) Flash parameters Flash duration adjustable... - Page 9 Short-circuit and overvoltage-proof transistor Principle output Level NPN, max. 32 V Pulse length adjustable Maximum power 50 mA Reverse voltage protection Warranty Warranty period 2 years Warranty conditions see website www.testo.com/warranty Pos: 21 /TD/Überschriften/4. Produktbeschreibung @ 0\mod_1173774846679_79.doc @ 310 @ 1...
-
Page 10: Product Description
4 Product description Product description Pos: 22 /TD/Produktbeschreibung/Übersicht/Übersicht 477 @ 4\mod_1249033237734_79.doc @ 46727 @ 2 4.1. Overview 1 LCD display shows flash sequence (flashes per minute = FPM). For different parameters that can be shown in the display, see Setting options (page 36). -
Page 11: Status Displays
Pos: 24 /TD/Überschriften/5. Erste Schritte @ 0\mod_1173774895039_79.doc @ 319 @ 1 First steps Pos: 25 /TD/Überschriften/5.1 Inbetriebnahme @ 0\mod_1185342823812_79.doc @ 1885 @ 2 5.1. Commissioning Pos: 26 /TD/Erste Schritte/testo 477/Batterien einlegen @ 4\mod_1249037621082_79.doc @ 46759 @ 3 5.1.1. Inserting batteries/rechargeable batteries Only operate and store instrument with battery compartment cover. -
Page 12: Switching The Instrument On
For more information on the visual slowing down of the movement of an object as well as the use of your testo 477 as a rev counter can be found under Instructions for use for the special functions of the instrument (page 42). -
Page 13: Using The Product
Pos: 30 /TD/Überschriften/6.1 Einstellungen vornehmen @ 0\mod_1184584321421_79.doc @ 1863 @ 2 6.1. Performing settings Pos: 31 /TD/Produkt verwenden/testo 477/Einstellungen vornehmen @ 4\mod_1249460650835_79.doc @ 47183 @ 3333 ✓ The instrument is switched on. 1. Press [M]. > Setting option (e.g. Hz) is shown (for settings, see following section Setting options). -
Page 14: Setting Options
6 Using the product 6.1.1. Setting options For status displays see Status displays (page 33). All setting options in the display are shown in the image. The numbering corresponds to the sequence in which they succeed one another by pressing the button. -
Page 15: Factory Reset
6 Using the product 6.1.2. Factory reset ✓ The instrument is switched on. 1. Press + [–]. Instrument is reset to the factory settings. Instrument returns to Measuring Mode. 6.1.3. Key lock ✓ The instrument is switched on. 1. Press + [–]. -
Page 16: Application Information
General application information 7.1.1. Slowing down motion As discussed, the primary use of the testo 477 is to slow down or “freeze” the apparent motion of moving objects. This allows you to analyse their run-time performances safely and easily. To make an object appear to move in slow motion, you need to strobe it at a rate slightly above or slightly below its actual speed (or any harmonic of its speed as discussed below). -
Page 17: Harmonics
7.1.4. Determing an object’s true RPM The testo 477 can be used as a digital tachometer to determine the true RPM and/ or the reciprocation rate of an object. This is done by visually “freezing” the object’s movement and then reading the LCD display. - Page 18 7 Application information reflective tape or equivalent) in order to differentiate its orientation. • A singular image always appears at exactly one half of the object’s true RPM! Example 1 (mark needed): This example shows why identifying marks are important. Suppose you want to determine the true RPM of this fan.
- Page 19 7 Application information Image No.: Flash 3,300 2,200 1,650 1,320 Rate: Image No.: Flash 1,100 733.3 Rate: Using the orientation mark, it is now clear that the images appearing at 3,300, 1,650 and 825 RPM are multipleimage harmonics. In each of these cases, three identification marks appear.
-
Page 20: Instructions For Use For The Special Functions Of The Instrument
A singular image does appear at 3,000 and again at 1,500 RPM. 1,500 is one half of 3,000. Therefore, the rate is 3,000 RPM. Pos: 34 /TD/Überschriften/x.x. Spezielle Anwendungshinweise 477 @ 4\mod_1249399750136_79.doc @ 47113 @ 2 7.2. Instructions for use for the special functions of the instrument Pos: 35 /TD/Produkt verwenden/testo 477/Anwendungshinweis 477 @ 4\mod_1249399957795_79.doc @ 47145 @ 55555... -
Page 21: Maintaining The Product
Pos: 36 /TD/Überschriften/7. Produkt instand halten @ 0\mod_1173789831362_79.doc @ 397 @ 1 Maintaining the product Pos: 37 /TD/Produkt instand halten/testo 477/Batterien wechseln @ 4\mod_1249038428877_79.doc @ 46791 @ 2 8.1. Changing batteries/rechargeable batteries Only operate and store instrument with battery compartment cover. - Page 22 8 Maintaining the product...
- Page 23 AG Postfach 1140, 79849 Lenzkirch Testo-Straße 1, 79853 Lenzkirch Telefon: (07653) 681-0 Fax: (07653) 681-100 E-Mail: info@testo.de Internet: http://www.testo.com 0970 4770 de en fr es 01...
