Summary of Contents for Connect Tech Xtreme/GPU

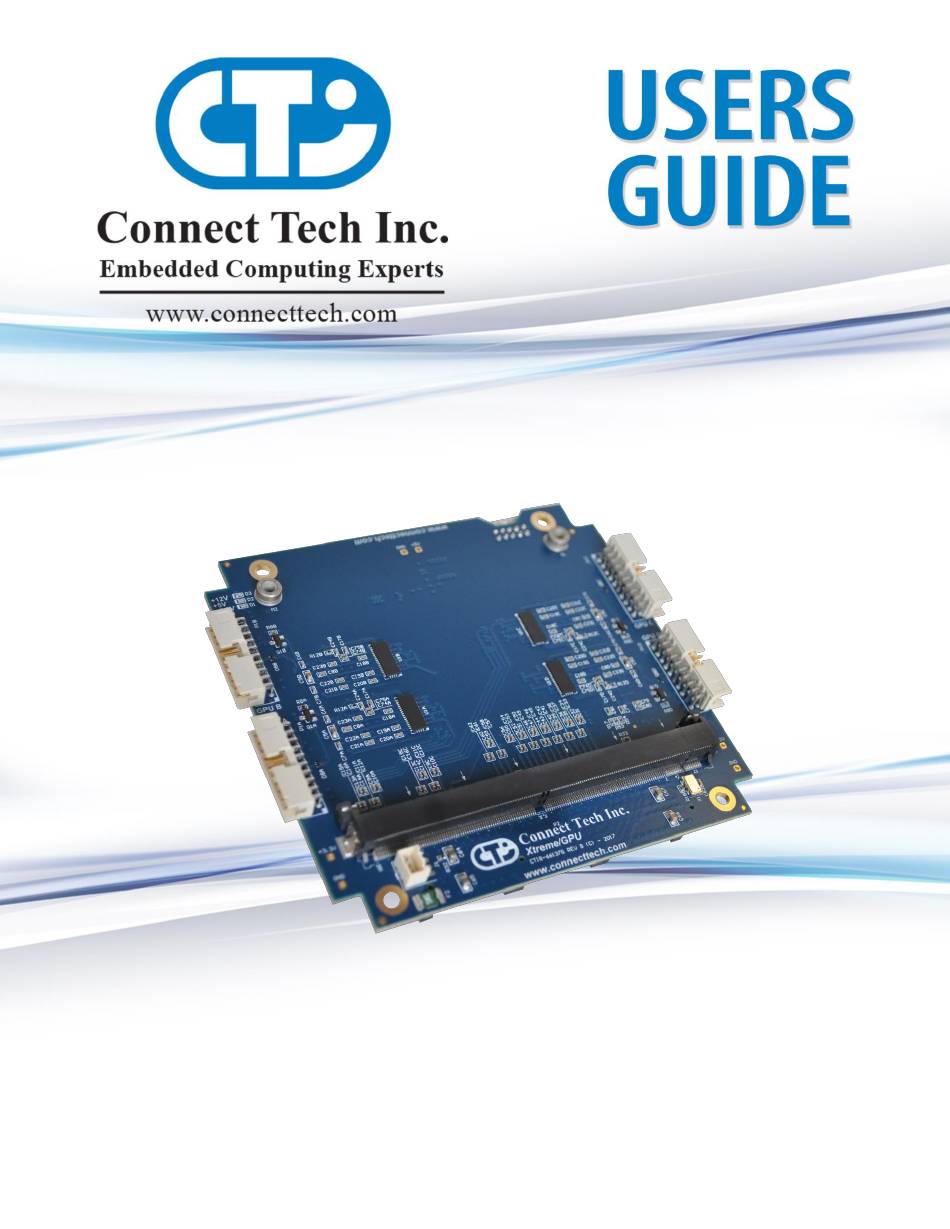

- Page 1 Xtreme/GPU Users Guide Connect Tech Inc. 519-836-1291 Tel: 42 Arrow Road 800-426-8979 (North America only) Toll: Guelph, Ontario 519-836-4878 Fax: N1K 1S6 sales@connecttech.com Email: support@connecttech.com www.connecttech.com CTIM-00490 Revision 0.00 2019/01/24...
-
Page 2: Table Of Contents
Mechanical Details ..........................23 Top Stacking (XGGBASE-01) Top View ..................... 23 Bottom Stacking (XGGBASE-02) Bottom View ..................24 Cables ..............................25 Cable Kits ..............................25 Document: CTIM-00490 Page 2 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 3: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 4: Limited Product Warranty
Connect Tech Inc. provides a one-year Warranty for the Xtreme/GPU. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: ... -
Page 6: Introduction
GPU processing power to the PCIe/104 form factor; with the ability to attach a NVIDIA® graphical solutions for unequal performance. With Connect Tech’s NVIDIA® solution, the Xtreme/GPU transforms into a processing powerhouse. With access to the NVIDIA® CUDA™ Cores, the GPU can become a parallel computational CPU for non-graphical applications. -
Page 7: Product Features And Specifications
Note [1]: The number of simultaneous display outputs and the video format per port may be limited by the GPU. Please confirm with Sales what your selected GPU capabilities are. Note [2]: Provided from On-Board Power Supply. Sourced from +5V Rail. Note [3]: Not intended for use with Xtreme/GPU boards that included the NVIDIA GTX1050/1050Ti Note [4]: Excluding 1050/1050Ti Xtreme/GPU Document: CTIM-00490... -
Page 8: Product Overview
Xtreme/GPU Users Guide www.connecttech.com Product Overview Block Diagram Document: CTIM-00490 Page 8 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 9: Connector Locations - Top Stacking (Xggbase-01) Top Side
Xtreme/GPU Users Guide www.connecttech.com Connector Locations – Top Stacking (XGGBASE-01) Top Side Document: CTIM-00490 Page 9 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 10: Connector Locations - Bottom Stacking (Xggbase-02) Top Side
Xtreme/GPU Users Guide www.connecttech.com Connector Locations – Bottom Stacking (XGGBASE-02) Top Side Document: CTIM-00490 Page 10 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 11: Connector Summary
MXM 3.0 GPU Card Slot for MXM 3.0 GPU Cards Connector PCIe/104 Bus Top Stacking (XGGBASE-01) Connector PCIe/104 Bottom Connector to allow for Xtreme/GPU to be on Top of PCIe/104 Stack Bottom Stacking (XGGBASE-02) PCIe/104 Top Connector to allow for Xtreme/GPU to be on Bottom of PCIe/104 Stack... - Page 12 Location P3 (Bottom Stacking (XGGBASE-02)) Type Samtec Fine Pitch Stacking Connector Connector ASP-129637-03 Manufacturer: Samtec Pinout Refer to PCI/104-Express & PCIe/104 Specification, Rev 2.01 Document: CTIM-00490 Page 12 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 13: Mxm 3.0 Gpu Connector
JAE Electronics Fine Pitch MXM 3.1 Connector Connector MM70-314-310B1-2-R300 Manufacturer: JAE Electronics Pinout Refer to MXM Graphics Module Mobile PCI Express Module Electromechanical Specification Version 3.1, Rev 1.0 Document: CTIM-00490 Page 13 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 14: Displayport/Hdmi/Dvi Connector
DP/TMDS SEL DisplayPort/HDMI/DVI Switching The Xtreme/GPU has on board DisplayPort to HDMI/DVI/TMDS Switching circuity. This allows the Xtreme/GPU Video output to be configured to display DisplayPort or HDMI/DVI/TMDS signaling. The selection between DisplayPort and HDMI/DVI/TMDS is made with the mating cable which toggles Pin-20. - Page 15 Note [5]: With regards to the GTX1050/150Ti enabled Xtrems/GPU, this connection may be required to reduce the voltage drop at load. MXM 3.0 GPU Fan Function MXM 3.0 GPU Fan Control Location Molex Pico-SPOX Header Type 87437-0343 87439 Series Connector Mating Pinout Description +12V Document: CTIM-00490 Page 15 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 16: Software And Drivers
NVIDIA GPUs, as such the system may not produce a display or become unstable. Prior to using your Xtreme/GPU adapter you may install the NVIDIA Proprietary Driver for full support or attempt to update the built-in Nouveau Driver. -
Page 17: Typical Installation
Thermal Solution (If one was requested) is firmly in place. a) Active Thermal Solution: Please make sure that the three pin connector for the Fan is plugged in Install the Xtreme/GPU on to the PCIe/104 stack. Install the necessary cables for the application. -
Page 18: Current Consumption Details
These values also include the power consumption of the test system that the Xtreme/GPU was installed in. Some values will change depending on what mode the Xtreme/GPU is running in and what MXM Module is installed. -
Page 19: Thermal Design
GPU will shut down. With the Connect Tech supplied XHG Thermal Solutions, it is still possible to push the GPU into the throttling and shutdown temperature range. As such it is up to the system designer to ensure that the GPU remains within the safe operating temperature range. -
Page 20: Thermal Solutions
Thermal Solutions The Active thermal design for the NVIDIA GTX1050/1050Ti based Xtreme/GPU with the XHG009 Active Thermal Heatsink w/ Fan solution is intended for development purposes for Lab use, as such is at the discretion of the system designer to ensure that the GPU remains within the safe operating temperature range when used in a production system. -
Page 21: Active Thermal Solution (Xhg001)
Function Active Cooling of Xtreme/GPU Type Active Fan Power +12V Note [3]: Not intended for use with Xtreme/GPU boards that included the Nvidia GTX1050/1050Ti Document: CTIM-00490 Page 21 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 22: Passive Thermal Solution (Xhg002)
Passive Heat Sink Function Passive Cooling of Xtreme/GPU Type Passive Heat Pipe 8mm Copper Heat Spec Pipe Min Bend Radius: 24mm Min Bend Angle: 90 Degrees Document: CTIM-00490 Page 22 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 23: Mechanical Details
Xtreme/GPU Users Guide www.connecttech.com Mechanical Details A complete 3D STEP Model file of Xtreme/GPU can be downloaded here: http://www.connecttech.com/ftp/3d_models/XGG014_3D_MODEL.zip 2D Mechanical Dimensioned Drawing (Top View) - PCB and Mounting Hole Dimension are in mil. Top Stacking (XGGBASE-01) Top View Document: CTIM-00490... -
Page 24: Bottom Stacking (Xggbase-02) Bottom View
Xtreme/GPU Users Guide www.connecttech.com Bottom Stacking (XGGBASE-02) Bottom View Document: CTIM-00490 Page 24 of 25 Date: 2019/01/24 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 25: Cables
Xtreme/GPU Users Guide www.connecttech.com Cables The following table summarizes the Xtreme/GPU cables available. Cable Kits Drawing No. Part No. Description DisplayPort Female Panel Mount to 20-Pin CTIC-00432 CBG113 MiniTek HDMI Female Panel Mount to 20-Pin CTIC-00461 CBG145 MiniTek Cable drawings are available upon request. Send an email request to: support@connecttech.com...
