Summary of Contents for Connect Tech MPG110

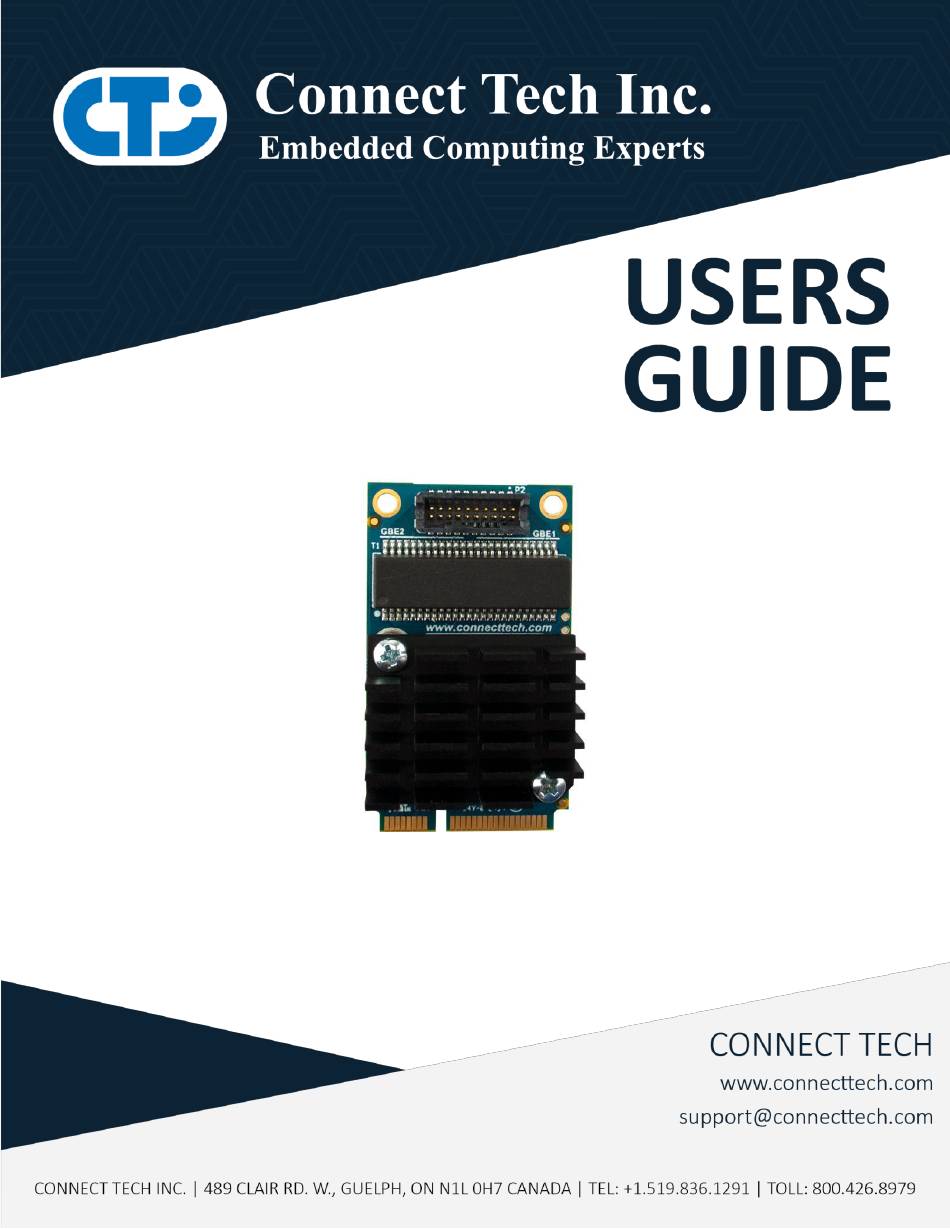

- Page 1 Dual Port Mini PCIe GbE CTIM-00074 Revision 0.00 2021-11-03...
-
Page 2: Table Of Contents
Dual Port Mini PCIe GbE Users Guide www.connecttech.com TABLE OF CONTENTS Table of Contents ............................2 Preface ................................3 Disclaimer ................................ 3 Customer Support Overview ........................... 3 Contact Information ............................3 Limited Product Warranty ..........................4 Copyright Notice .............................. 4 Trademark Acknowledgment .......................... -
Page 3: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 4: Limited Product Warranty
Connect Tech Inc. provides a 1-year Warranty for this product. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: •... -
Page 6: Introduction
INTRODUCTION Connect Tech’s MPG110 series board is a rugged, low-cost dual Gigabit Ethernet Mini PCIe module that is ideal for adding extra Ethernet capabilities to any system with minimal increase in overall system size and power consumption. The module utilizes PCIe signaling which allows it to be used in any Mini PCIe socket that supports PCIe. -
Page 7: Product Overview
Dual Port Mini PCIe GbE Users Guide www.connecttech.com PRODUCT OVERVIEW Block Diagram Connector Summary & Locations Document: CTIM-00074 Page 7 of 12 Date: 2021-11-03 Revision: 0.00... -
Page 8: Interface Pin-Outs
Dual Port Mini PCIe GbE Users Guide www.connecttech.com INTERFACE PIN-OUTS Mini PCIe Edge Connector The Mini PCIe GbE pin-out is compliant to the PCI Express Mini Card Electromechanical Specification Rev. 2.0. Please note that this module does not require the +1.5V power provided to a standard Mini PCIe connector. -
Page 9: Ethernet Connector Pinout
Dual Port Mini PCIe GbE Users Guide www.connecttech.com Ethernet Connector Pinout Function Dual Ethernet Connector Location Type 20 Pin TFML Connector Part Number: TFML-110-02-L-D-A Manufacturer: Samtec Mating Part Number(s): Connector SFML-110-01-L-D (Board-Board Mate) ISDF-10-D-L (Cable Housing), CC03 (Cable Contacts) Manufacturer: Samtec Pinout Connector Function... -
Page 10: Detailed Feature Description
10/100/1000Base-T Port The MPG110 two Ethernet interface ports supporting 1000BASE-T, 100BASE-TX, and 10BASE-T (IEEE 802.3, 802.3u, 802.3ab). This multi-speed port can operate in Half or Full duplex and includes flow control support compliant with IEEE 802.3X as well as VLAN support compliant with IEEE 802.3q. -
Page 11: On-Board Indicator Leds
Intel States the the Tcase temperature of the I350 must remain below 110°C with use of a heatsink The MPG110 can be operated in natural convection using a CTI passive heatsink to 60°C and up to 85°C using a minimum airflow of 50CFM. -
Page 12: Mechanical Drawings & Models
Dual Port Mini PCIe GbE Users Guide www.connecttech.com MECHANICAL DRAWINGS & MODELS CABLES Available Cables The following table shows the available cables for the Dual Port Mini PCIe GbE. Click below to view the drawing. Drawing No. Part No. Description CTIC-00717 CBG501 Dual RJ-45 to 20-pin TFML Cable...
