- Page 1 Xtreme/GPU Users Guide Connect Tech Inc. 519-836-1291 Tel: 42 Arrow Road 800-426-8979 (North America only) Toll: Guelph, Ontario 519-836-4878 Fax: N1K 1S6 sales@connecttech.com Email: support@connecttech.com www.connecttech.com CTIM-00410 Revision 0.02 2017/08/04...
-
Page 2: Table Of Contents
Cables ..............................17 Cable Kits ..............................17 Thermal Solutions ..........................18 XHG001 - Active Thermal Solution ......................18 XHG002 - Passive Thermal Solution ......................19 Document: CTIM-00410 Page 2 of 19 Date: 2017/08/04 Revision: 0.02 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 3: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 4: Limited Product Warranty
You may obtain warranty service by delivering this product to an authorized Connect Tech Inc. business partner or to Connect Tech Inc. along with proof of purchase. Product returned to Connect Tech Inc. must be pre-authorized by Connect Tech Inc. with an RMA (Return Material Authorization) number marked on the outside of the package and sent prepaid, insured and packaged for safe shipment. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: ... -
Page 6: Introduction

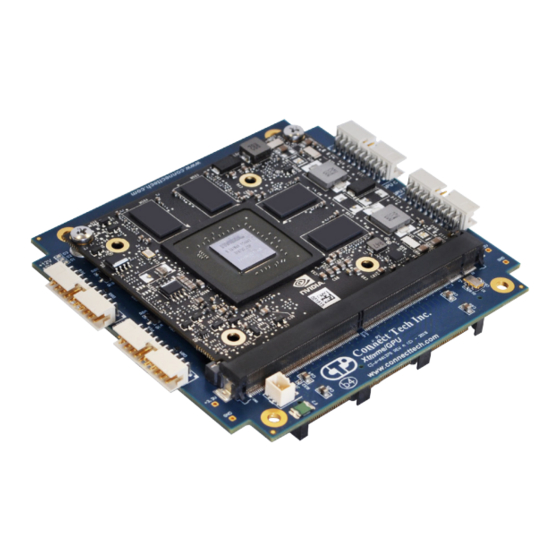

GPU processing power to the PCIe/104 form factor; with the ability to select either AMD or NVIDIA graphical solutions. Connect Tech’s AMD version of the Xtreme/GPU is a high end graphics unit, used to drive up to four video connections for either independent use, or leveraging AMD Eyefinity technology, as a single large surface. On- board passive circuitry allows for the use of HDMI, or Dual-Mode DisplayPort, enabling the use of DVI dongles if DisplayPort or HDMI is not preferred. -
Page 7: Part Numbers
Temperature Range: -40°C to +70°C Processor Clock: 914MHz Memory: 2GB DDR3 XGG018 Interface: PEG (x16 PCIe) Display Outputs: Up to 3 displays Additional Features: OpenGL 4.5, OpenCL 1.2 Document: CTIM-00410 Page 7 of 19 Date: 2017/08/04 Revision: 0.02 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 8: Product Overview
Xtreme/GPU Users Guide www.connecttech.com Product Overview Block Diagram Document: CTIM-00410 Page 8 of 19 Date: 2017/08/04 Revision: 0.02 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 9: Connector Locations - Top Side
Xtreme/GPU Users Guide www.connecttech.com Connector Locations – Top Side Document: CTIM-00410 Page 9 of 19 Date: 2017/08/04 Revision: 0.02 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 10: Connector Locations - Bottom Side
Xtreme/GPU Users Guide www.connecttech.com Connector Locations – Bottom Side Document: CTIM-00410 Page 10 of 19 Date: 2017/08/04 Revision: 0.02 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 11: Connector Summary
MXM 3.0 GPU Card MXM 3.0 GPU Card Slot for MXM 3.0 GPU Cards Connector PCIe/104 Bottom PCIe/104 Bottom Connector to allow for Xtreme/GPU to be on Connector top of PCIe/104 Stack GPU Fan Connector Fan Connector for Controlling GPU Fan... -
Page 12: Mxm 3.0 Gpu Connector
JAE Electronics Fine Pitch MXM 3.0 Connector Connector MM70-314-310B1-2-R300 Manufacturer: JAE Electronics Pinout Refer to MXM Graphics Module Mobile PCI Express Module Electromechanical Specification Version 3.1, Rev 1.0 Document: CTIM-00410 Page 12 of 19 Date: 2017/08/04 Revision: 0.02 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 13: Displayport/Hdmi/Dvi Connector
DP/TMDS SEL MXM 3.0 GPU Fan Function MXM 3.0 GPU Fan Control Location Molex Pico-SPOX Header Type 87437-0343 Mating 87439 Series Connector Pinout Description +12V Document: CTIM-00410 Page 13 of 19 Date: 2017/08/04 Revision: 0.02 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 14: Typical Installation
Thermal Solution (If one was requested) is firmly in place. a) Active Thermal Solution: Please make sure that the three pin connector for the Fan is plugged in Install the Xtreme/GPU on to the PCIe/104 stack. Install the necessary cables for the application. -
Page 15: Current Consumption Details
Below are measurements taken with the Xtreme/GPU running in various configurations. These values also include the power consumption of the test system that the Xtreme/GPU was installed in. Some values will change depending on what mode the Xtreme/GPU is running in and what MXM Module is installed. -
Page 16: Mechanical Details
Xtreme/GPU Users Guide www.connecttech.com Mechanical Details A complete 3D STEP Model file of Xtreme/GPU can be downloaded here: http://www.connecttech.com/ftp/3d_models/XGG014_3D_MODEL.zip 2D Mechanical Dimensioned Drawing (Top View) - PCB and Mounting Hole Dimension are in mil. Top View Document: CTIM-00410 Page 16 of 19 Date: 2017/08/04 Revision: 0.02... -
Page 17: Cables
Xtreme/GPU Users Guide www.connecttech.com Cables The following table summarizes the Xtreme/GPU cables available. Cable Kits Drawing No. Part No. Description DisplayPort Female Panel Mount to 20-Pin CTIC-00432 CBG113 MiniTek HDMI Female Panel Mount to 20-Pin CTIC-00461 CBG145 MiniTek Document: CTIM-00410... -
Page 18: Thermal Solutions
Xtreme/GPU Users Guide www.connecttech.com Thermal Solutions The following are thermal solutions for the Xtreme/GPU. XHG001 - Active Thermal Solution Active Heat Sink Function Active Cooling of Xtreme/GPU Type Active Fan Power +12V Document: CTIM-00410 Page 18 of 19 Date: 2017/08/04 Revision: 0.02... -
Page 19: Xhg002 - Passive Thermal Solution
Passive Heat Sink Function Passive Cooling of Xtreme/GPU Type Passive Heat Pipe 8mm Copper Heat Spec Pipe Min Bend Radius: 24mm Min Bend Angle: 90 Degrees Document: CTIM-00410 Page 19 of 19 Date: 2017/08/04 Revision: 0.02 Connect Tech Inc. 800-426-8979 | 519-836-1291...
