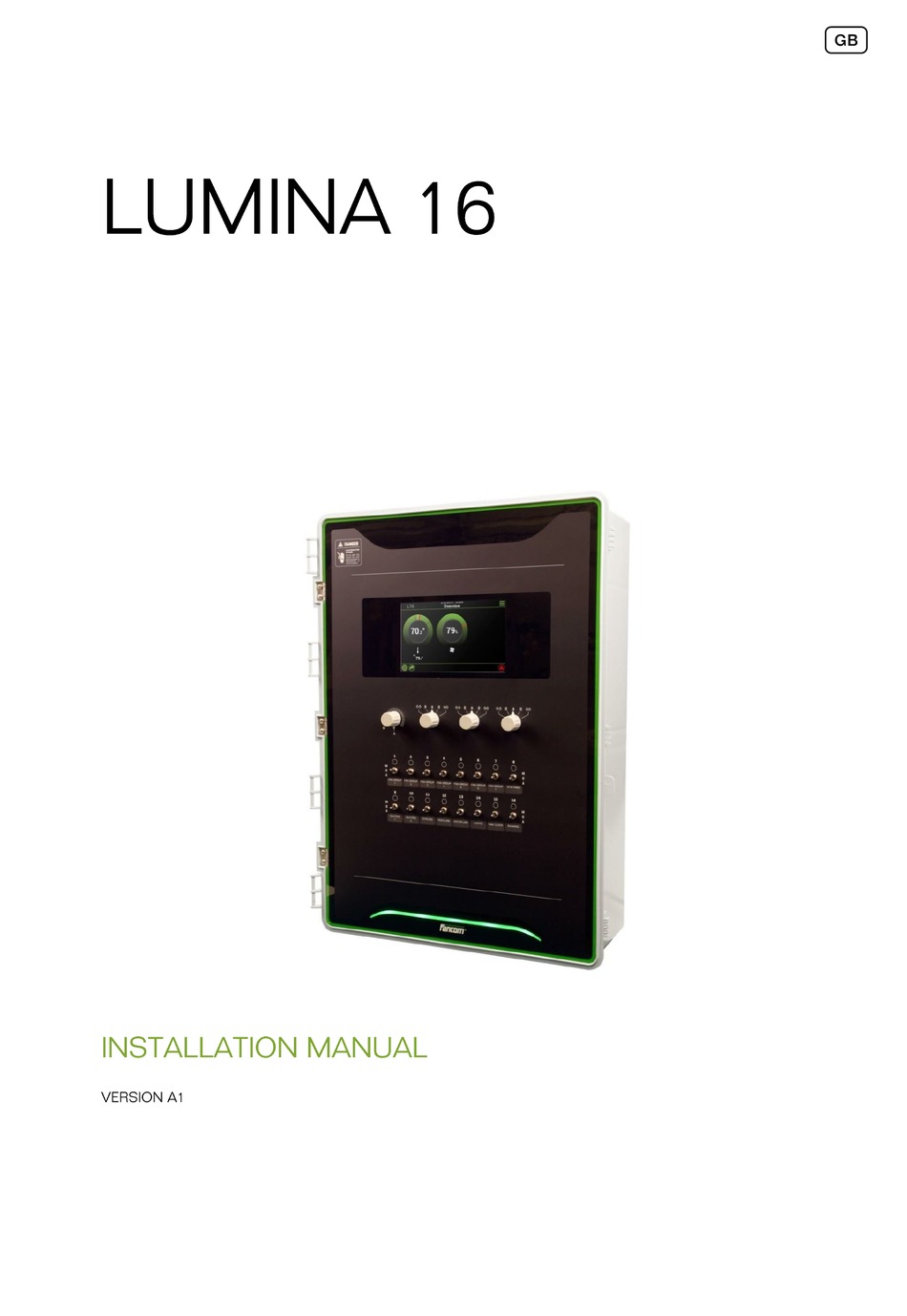

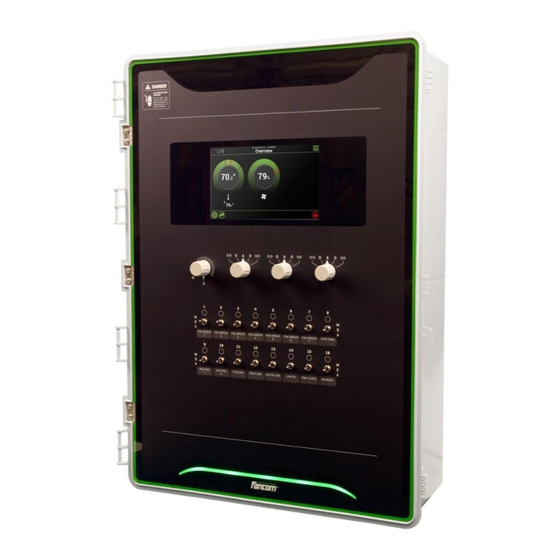

Fancom LUMINA 16 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

g

Advertisement

Table of Contents
loading

Related Manuals for Fancom LUMINA 16

Summary of Contents for Fancom LUMINA 16

  • Page 2 N.B.: The original, authentic version of this manual is the English version produced by Fancom B.V. or one of its daughter companies (referred to further as Fancom). Any modifications introduced to this manual by third parties have neither been checked nor approved by Fancom. Modifications are taken by Fancom to include translations into languages other than English and the insertion and/or deletion of text and/or illustrations to/from the original contents.

  • Page 3: Table Of Contents

    Heating ............................12 Cooling ............................14 Humidifying ........................... 15 HumiTemp ............................ 16 Optisec ............................17 Installing the Lumina 16 ........................... 18 Determine location ........................18 Mount the Lumina 16 ........................18 Connect the Lumina 16......................... 19 Installing the control computer ....................... 20 Installation menu ..........................
  • Page 4 Lumina 16 Table of contents Technical specifications .......................... 57 11.2 Interior control computer ....................... 59 11.3 FDP45 ............................59 11.4 IOB.12 ............................60 11.5 FDP45 ............................60 11.6 FDP45 ............................61 11.7 FDP45 ............................61 11.8 Connection FNet and I/O-net ......................62...

  • Page 5: General Introduction

    Operation and safety instructions These subjects are covered in a separate manual. This manual also applies to other control computers in the Fancom F2000-line. Always read the safety instructions and warnings carefully before using the control computer. Always keep this manual close to the Lumina 16.

  • Page 6: F-Central Farmmanager

    Lumina 16 General introduction Virtually all Fancom equipment can be controlled and managed from a central location. This requires the F- Central FarmManager software package and a communication module. The screens in the control computers are also used in F-Central FarmManager. This means you can start working immediately.
  • Page 7 Lumina 16 Explanation control functions Please refer to the user's manual for an explanation of the basic principles of climate management. This chapter describes the working of a number of specific control functions that the installer should set. Ventilation is used to create the most pleasant climate possible in the house. Ventilation also extracts harmful substances from the house and introduces fresh air into the house.

  • Page 8: Explanation Control Functions

    Lumina 16 Explanation control functions Part of the ventilation demand can be met using natural ventilation. During natural ventilation the fans are off. The outside wind provides the air flow through the house. The entire combi-table is deactivated in the natural ventilation phase.

  • Page 9: Ventilation

    Lumina 16 Explanation control functions Transition Natural ventilation → Power ventilation (1) With falling temperatures the control computer switches over to low ventilation when the curtains are open minimum and the temperature falls below Natural start (1). The inlets for natural ventilation (curtains) are closed.
  • Page 10 Lumina 16 Explanation control functions The control computer can control controllable fans and extra fans. Controllable fans can be controlled by the control computer at a certain percentage. The control computer controls the fans from, for example, 30% to 100%. This enables the control computer to increase ventilation precisely up to the required level.
  • Page 11 Lumina 16 Explanation control functions Extra fans can only be switched on or off via a relay. They are usually used when the controllable fans are running at maximum or in combination with controllable fans to achieve a gradual increase in ventilation.
  • Page 12 Lumina 16 Explanation control functions The ventilation level is expressed as a percentage. Using this percentage the control computer can locate the required level of control of the fan(s) in the combi-table. Extra fans are shown in the combi-table as value ‘0’ (off) or ‘1’ (on).
  • Page 13 Lumina 16 Explanation control functions The settings that have to be made for the tunnel part (T-part) correspond broadly with the settings for the Power- part. Instead of the ventilation position in % you enter the offset temperature for the positions. At the first position this offset temperature is linked to start temperature ventilation + calculated bandwidth.
  • Page 14 Lumina 16 Explanation control functions Determining the ventilation position The control computer determines the use of air inlets, extra inlets and fans based on the combi-table. The example below shows a combi-table with modulating fans. The relay fans will do 20.000 m3 each.
  • Page 15 Modulating control allows minimum ventilation to be achieved using, for example, a large fan. Fancom differentiates between the following types of modulating control:  Modulating control with fixed modulation times ...

  • Page 16: Heating

    Lumina 16 Explanation control functions Example - Optimum modulating control (2) Modulate below Control value ventilation: 3% The control computer assumes an optimum ON-time of 2 minutes. This means that the optimum ON- time of 2 minutes must be a tenth (=3/30) of the total cycle time. The control computer calculates a cycle time of 10 x 2 minutes = 20 minutes (2 minutes on and 18 minutes off).
  • Page 17 Lumina 16 Explanation control functions The control computer activates heating if the house Setpoint – temperature drops below hysteresis. If the house temperature rises, the heating will stay on until the control value heating is reached. A set Repeat time can be used to prevent unnecessary activation/deactivation of the heating.

  • Page 18: Cooling

    Lumina 16 Explanation control functions With analog heating control the heating is controlled by a P- or PI-control. Use Repeat time to determine the type of heating control. If the Repeat time is less than 10 seconds, a P-band control is concerned. In other cases PI- control applies.

  • Page 19: Humidifying

    Lumina 16 Explanation control functions Time modulating ON/OFF control This type of control can be selected if the cooling capacity is large and the cooling system is suitable for modulating control. Cooling is continually on, if the temperature of the cooling control is higher than Setpoint + hysteresis.

  • Page 20: Humitemp

    Lumina 16 Explanation control functions Example: Time modulating humidity control Inside Hysteresis the control computer controls humidity during a part of the Repeat time. The control computer calculates this on/off time as follows:  Setpoint:  Measured RH:  Hysteresis: ...

  • Page 21: Optisec

    Lumina 16 Explanation control functions OptiSec = Optimum Setpoint Control The control computer uses a neutral zone, with minimum ventilation and no heating. This lowers energy costs. The neutral zone is the area between control value heating and start temperature ventilation. If OptiSec is not...

  • Page 22: Installing The Lumina 16

    Takes into account the following guidelines: Figure 8: required edge distances Never place the Lumina 16 in a place where the weather has direct influence (not in the sun, not in places where the temperature can rise sharply etc.). Never mount the Lumina 16 near water pipes, drainage pipes etc.

  • Page 23: Connect The Lumina 16

    Connect other (signal wires) to the Lumina 16, see chapter Technical specifications. Close the cover. Always use the cable swivels when connecting the Lumina 16. Use the sealing discs supplied to seal off any unused swivels. Use a sealant to seal all swivels, after the computer has been connected, to prevent the entry of moisture, dust and/or aggressive gasses.

  • Page 24: Installing The Control Computer

    Lumina 16 Installing the control computer The installer can configure the control computer using the installation menu. This menu also contains screens for standard system settings and diagnoses. To call up the installation menu: press the navigation keys UP and DOWN simultaneously for a few seconds.

  • Page 25: System

    Lumina 16 System SYSTEM   tab page SYSTEM SYSTEM Common Clock type Setting of the 12 or 24 hour time indication. Time and Date Setting of the current time and date Computer name Setting of the name of the control computer.
  • Page 26 Lumina 16 System   tab page SYSTEM SYSTEM Units Unit of measurement Setting to simultaneously set all units to METRIC or NON-METRIC. Use the + and – key on the alpha-numeric keyboard to change individual values.   tab page...

  • Page 27: Sd Card Menu

    Lumina 16 System   tab page SYSTEM SYSTEM Sharing Share animal data Setting for sending or receiving animal data. The control computers in the network can share data. In this way the animal data only has to be entered once, at the sender.

  • Page 28: Application

    Lumina 16 System Data saved on one control computer can only be loaded into another control computer if both computers are of the same type. In addition, the set control computer numbers must be identical. If both these conditions are not met, loading will fail.

  • Page 29: Communication

    If no IO-net modules are connected, the control computer doesn't give alarms during the Simulation Mode. FNet is the Fancom Network. Several control computers can be linked via this network. FNet is also used to operate the connected control computers from a PC.

  • Page 30: Io Test

    Lumina 16 System Tab page Slaves shows the connected I2C modules and IO-Net modules and additional diagnostic data. It is intended to be used as a service tool to find communication errors.   tab page SYSTEM COMMUNICATION Slaves Reset counters Setting used to reset all data to zero simultaneously.

  • Page 31: House Setup

    Lumina 16 House setup This chapter explains all the options in the HOUSE SETUP menu. HOUSE SETUP select the parts of the control computer you intend to use. The control computer will only display data relevant to you in the screens. Parts not used, will not be shown. Most codes are self explanatory.
  • Page 32 Lumina 16 House setup  tab page HOUSE SETUP Outside Measurement outside Setting indicating if outside temperature measurement is used. If outside temperature temp. measurement is used the outside temperature can influence a number of controls. Measurement outside Setting indicating if outside RH measurement is used. Using absolute moisture calculation, the control computer determines if the outside air is suitable for dehumidification.
  • Page 33 Lumina 16 House setup Setting indicating which ventilation system is used in the house: –N–, –NP, –NT, PNT, Ventilation system or others (P=Power, N=Natural, T=Tunnel, ‘–’=Not Used). PN-, House type Setting indicating which type of ventilation is used in the house: CROSS, STAIR, RIDGE or LENGTH.
  • Page 34 Lumina 16 House setup  tab page HOUSE SETUP User Apply temperature curve Setting indicating if the house temperature is to be controlled based on the curve. Apply ventilation curve Setting indicating if the minimum and maximum ventilation levels are to be controlled based on the curve.
  • Page 35 Lumina 16 House setup  tab page  ZOOM HOUSE SETUP User Age Factor Setting used to determine how much correction is permitted:  Early  Normal  Late Min Correctie Setting of the allowed maximum compensation below the average house temperature: ...
  • Page 36 Lumina 16 House setup  tab page HOUSE SETUP OptiSec Band Setting of the maximum correction (Band). The control computer can increase the setpoint heating until this equals the setpoint house temperature. Delay Setting of the Delay to minimise the influence of temperature fluctuations.

  • Page 37: Installer

    Lumina 16 Installer This chapter explains all the options in the INSTALLER menu. In the combi-table the relationship between ventilation and air inlets for the entire ventilation course is entered. For more information about the combi-table, see “Combi-table”. All the positions in the combi-table must be fully entered. Even if natural ventilation is used, the relays at these positions must be assigned.
  • Page 38 Lumina 16 Installer Con. Mod. % The entry depends on the system setting Power-part HOUSE SETUP, tab page Combi.  Con.: Enter the positions of the linear controllable fans.  Mod. %: The control computer uses the set ventilation percentage to calculate the on and off times for the modulating fans.
  • Page 39 Lumina 16 Installer     tab page INSTALLER VENTILATION COMBI POWER TUNNEL POWER Cap. Position % Setting of the ventilation percentage at which fans should activate/deactivate and air inlets open/close. The ventilation percentages must increase from the lowest to the highest position.
  • Page 40 Lumina 16 Installer    tab page INSTALLER VENTILATION SETTINGS Miscell. When using Tunnel-inlets, the house sizes are required to be able to calculate the airspeed during Tunnel-phase. House length Setting of the length of the house. House width Setting of the width of the house.
  • Page 41 Lumina 16 Installer    tab page INSTALLER VENTILATION SETTINGS Power Description Setting of the name of the function. Output address Setting of the analog output address. Analog type Setting indicating the analog control type Extra analog Setting of the analog output address.
  • Page 42 Lumina 16 Installer Modulating: FIXED TIME Modulate under % Setting of the ventilation percentage, below which the control computer will apply modulating control to the linearly controlled part. This applies to fans that cannot be controlled below this percentage. Linearly controllable fans usually have a minimum ventilation level.
  • Page 43 Lumina 16 Installer Output address Setting of the combi relay addresses. Rotate Setting indicating if fans, controlled by the combi-relays, rotate in a certain sequence.    tab page INSTALLER VENTILATION INLETS Inlet Description Setting of the name of the function.
  • Page 44 Lumina 16 Installer Position lee side Setting of the compass positions, which represent the lee side of the house. If the wind comes from this direction (positions) under wind side, the ventilation control may be influenced.    tab page...

  • Page 45: Ventilation

    Lumina 16 Installer    tab page INSTALLER VENTILATION INLETS Tunnel Description Setting of the name of the function. Output address Setting of the analog output address. Analog type Setting indicating the analog control type During mech.vent. Setting if the air inlet is open or closed during this phase.
  • Page 46 Lumina 16 Installer  INSTALLER HEATING Description Setting of the name of the function. Temp. inputs Setting the addresses of the analog inputs. If the temperature sensors have not been assigned, the control computer will use the house temperature. Control...
  • Page 47 Lumina 16 Installer Relay type Setting of the type of relay control. ON/OFF or MODULATING.  INSTALLER COOLING Description Setting of the name of the function. Temp. inputs Setting the addresses of the analog inputs. If the temperature sensors have not been assigned, the control computer will use the house temperature.
  • Page 48 Lumina 16 Installer In the clocks and registration menu enter the settings for the clocks used per house. In the menu HOUSE SETUP the clocks to be used have already been entered. The data for these clocks can be set here.

  • Page 49: Clocks

    Lumina 16 Installer Time clock type Setting indicating how the user can use the clock:  ON/OFF: User enters on/off times.  ON/DURATION: User enters time and duration of activation.  INTERMIT: Intermittent repeat clock. An intermittent light clock can be used to periodically repeat a certain light pattern.
  • Page 50 Lumina 16 Installer The feed clock controls the feeding of the animals in the house. One feed clock can be used per house.   INSTALLER TIME CLOCKS FEED Description Setting of the name of the function. Time clock type Setting indicating how the user can use the clock: ...

  • Page 51: Registration

    Lumina 16 Installer Time clock type Setting indicating how the user can use the clock:  ON/OFF: User enters on/off times.  ON/DURATION: User enters time and duration of activation. Registration via Setting of the registration input used to measure the amount of water. The volume of water can be measured by a flow meter.

  • Page 52: Inside Climate

    Lumina 16 Installer Amount per min. Setting of the number of 'units' measured per minute. This option is only available if Display=AMOUNT. (only with measurement type: CONTACT) Display amount Setting how the unit is displayed:  AMOUNT: number 'units' per minute (Amount per min.).

  • Page 53: Outside Climate

    (COMM). Only enter the address of the input if INT is selected. Input wind speed Setting of the address of the digital input. Type wind measure Setting of the type of anemometer used. Fancom uses the following types of weather meters:  GREEN_2P (default) ...

  • Page 54: Stir Fans

    Lumina 16 Installer  INSTALLER Stir fans Description Setting of the name of the function. Temp. inputs Setting the addresses of the analog inputs. If the temperature sensors have not been assigned, the control computer will use the house temperature.

  • Page 55: External Alarm

    Lumina 16 External alarm The control computer can connect to external alarm contacts and respond appropriately.  tab page EXTERN.ALARM External Description Setting of the name of the function. Input address Setting of the address of the digital input. The readout of the input value is between brackets.

  • Page 56: Basic Principle Thermo Differential

    Lumina 16 Basic principle thermo differential An extreme rise in house temperature can be caused by fire. In such a case, it is important that an alarm is raised quickly. The sensors (assigned to the house temperature) in the zones can detect sudden rises in temperature. A sensor issues an alarm if: ...
  • Page 57 Lumina 16 Basic principle thermo differential Reset Button for resetting the thermo differential alarms.

  • Page 58: Inputs And Outputs

    Lumina 16 Inputs and outputs When controls are assigned, the I/O settings are filled in automatically. When Fancom equipment is used these settings will normally ensure correct control. These settings can be adjusted using the zoom function ( The input and output settings can be readout, and changed in the INPUT / OUTPUT menu. However, we advise you not to make changes here but to do these changes in the setup screens.

  • Page 59: Analog Inputs

    Lumina 16 Inputs and outputs Analog inputs have the following settings: Input address The address of the analog input. Type Setting of the type of measurement being carried out:  NONE  TEMPERATURE  CO2 3000 PP  CO2 30000 PP ...
  • Page 60 Lumina 16 Inputs and outputs Max. buffer The control computer repeatedly determines the difference between the actual control value and the required setpoint. It places these difference values in a buffer, until the Max. buffer is reached. The adjustment to the setpoint is the average of the values in the buffer. The control...

  • Page 61: Digital Outputs

    1 – 8 connection for FRM.8 printed circuit board 9 – 16 connection for FRM.8 printed circuit board Alarm contact Relay: make-and-break contact, voltage free Max. 2A 60Vdc/30Vac Communication I/O-Net for extra inputs and outputs using I/O-modules. FNet, Fancom network for intercommunication of control computers and PC connection.

  • Page 62: Fdp45

    Lumina 16 Technical specifications FDP45 90Vac – 264Vac Mains voltage Mains frequency 50/60Hz Maximum power consumption 45VA IMSPower supply Mains voltage 1-phase: 230Vac (-10% till +6%) 3-phase: 400Vac (-10% till +6%) Mains frequency 50/60Hz Maximum power consumption 45VA Fuse electronics (5 x 20mm)

  • Page 63: Fdp45

    Lumina 16 Technical specifications Housing Plastic housing with screw-on lid IP54 Dimensions (l×w×h) 430×620×200mm (17"x24"x8") Weight (unpacked) 8.0kg (18lb.) Ambient climate Operating temperature range 0°C to +40°C / 32°F to 104°F –10°C to 50°C / 14°F to 122°F Storage temperature range Relative humidity <...
  • Page 64 Lumina 16 Technical specifications AI type Type analog input  Voltage measurement (U:  Resistance measurement (R: 6 Analog outputs 12 Analog inputs 8 Digital inputs 2×8 digital outputs...
  • Page 65 Lumina 16 Technical specifications...
  • Page 66 The control computer and the second I/O network module require a terminal resistor. The first I/O network module is looped. This does not require a terminal resistor. The Fancom Greenlink cable (UTP 1x2x0.8mm, unshielded twisted pair) used to wire the FNET and I/O net. Maximum cable length = 1200 meters.

  • Page 67: Appendix: Eg-Declaration Of Compliance

    Lumina 16 Appendix: EG-declaration of compliance Manufacturer Fancom B.V. Address: Industrieterrein 34 Place: Panningen (the Netherlands) Hereby declares that: Lumina 16 Satisfies the conditions of: The Low Voltage Directive 2014/35/EU according to EN-61010 the EMC Guideline, directive 2014/30/EU Emission and immunity according to NEN-EN-IEC 61326...
