Summary of Contents for Dentsply Maillefer X-SMART

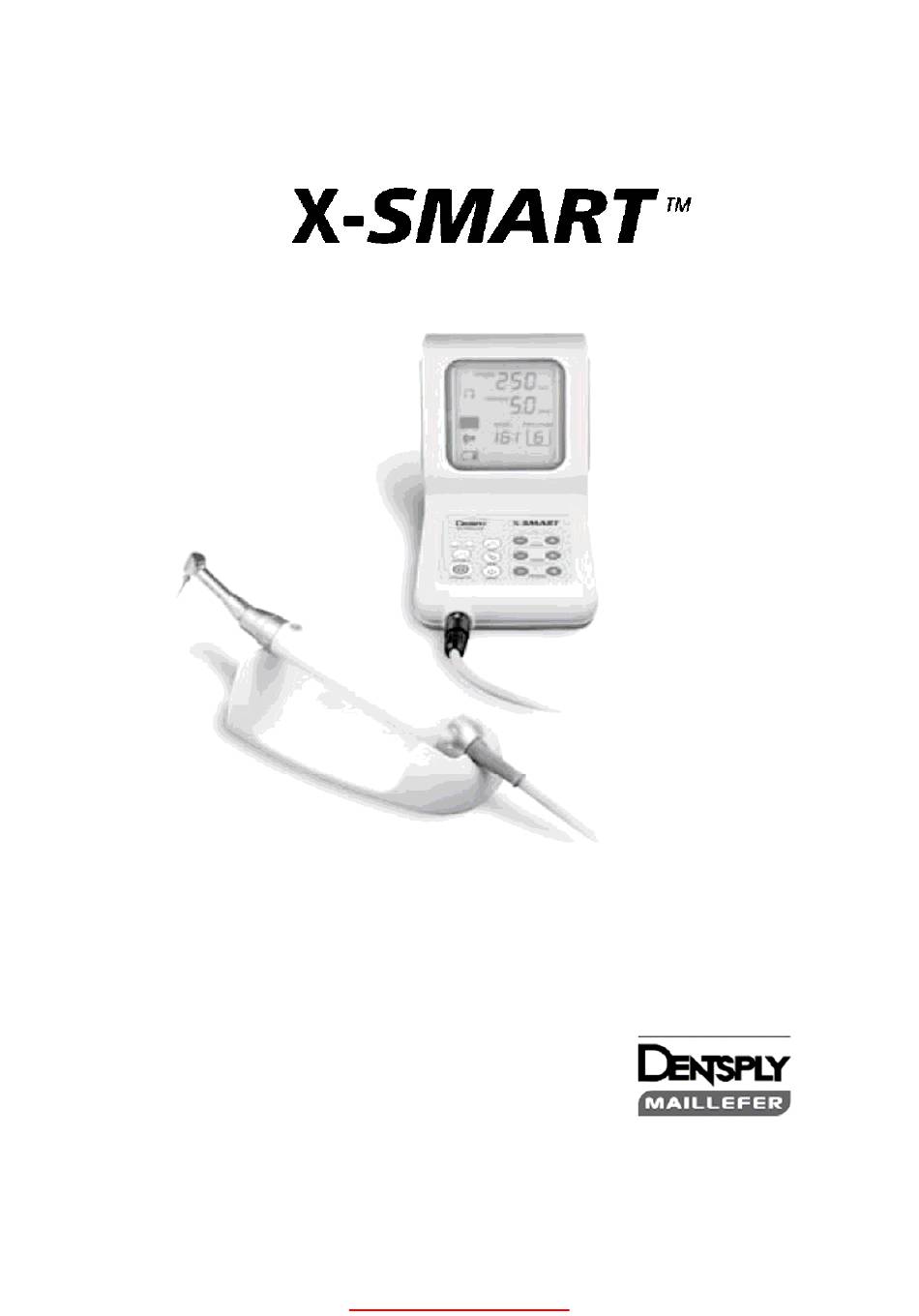

  • Page 1 www.enversaltan.com www.enversaltan.com...
  • Page 2 Introduction - Indications - Contra-indications - Warnings - Precautions - Notice - Adverse reactions A> Contents B> Product Main Specifications C> Product Description D> How to connect each part E> Main Directions For Use F> Additional Directions For Use G> Cleaning H>...
  • Page 3 Thank you for purchasing the X-SMART Indications X-SMART is an endodontic micromotor to drive NiTi instruments. This motor has to be used only in hospital environments, clinics or dental offices by qualified dental personnel. Read this Operation Manual carefully before use for operation instructions, care and maintenance. Keep this Operation Manual for future reference.
  • Page 4 Precautions The appliance must only be used with the manufacturer's original accessories Use the Dentsply Maillefer AC adapter for this product. Never use any other AC adapters. The RPM number indicates true instrument speed when the appropriate reduction rate is selected.
  • Page 5 - Foot Pedal (Option) : IPX1 (Protected against vertically falling water drops) Degree of safety of application in the presence of a flammable anesthetic mixture with air or with oxygen or nitrousoxide: - X-SMART complies to IEC60601-1 safety standard and the requirement of CE Marking of Conformity. www.enversaltan.com...
  • Page 6 A> Contents Before use, please refer to the packaging labels B> Product Main Specifications X-SMART control unit Rated input DC20V 0.5A Output DC7V 0.4A Charging time 5 hours approx. Dimensions W98 x D152 x H139mm Weight 456g X-SMART AC adapter...
  • Page 7: Control Unit

    C> Product Description option www.enversaltan.com Fig. 1 1) Control Unit 5) Foot Pedal Connector 6) Motor Handpiece Connector 2) Operation Panel 7) AC Adapter See Fig. 2 “Operation Panel and LCD Panel.” 8) Motor Handpiece 9) Contra Angle 3) LCD Panel 10) Handpiece Stand See Fig.
  • Page 8 * Operation Panel and LCD Panel. Operation Panel (LCD Panel) AC IN CHARGE REVERSE SPEED AUTO REVERSE TORQUE POWER PROGRAM GEAR RATIO MEMORIZE Fig. 2 • POWER www.enversaltan.com Holding down the POWER key for more than one second turns on the power and the LCD panel lights.
  • Page 9 The present torque limit value is displayed. The unit is (Ncm). When it reaches the max- imum value, “ ” is displayed • PROGRAM The present program number is displayed. The program number is available from 1 to 9. The Program button is also used to manage the alarm sound. •...
  • Page 10 • AUTO REVERSE The auto reverse mode can be selected by this key. (See “Auto Reverse Function.”) The present auto reverse mode mark is displayed. If the load is removed after auto reverse rotation, it AUTO REVERSING returns to the normal rotation again. If the load is removed after autoreverse rotations, it AUTO STOP stops.
  • Page 11 Full charge Approximately 30-80% remains Less than 30% remains. In case of this condition, the auto reverse function may not activate. (See “*Auto Reverse Function”) Batteries are drained or in a remarkably low voltage. Charge the batteries NOTICE The remaining amount of batteries mark indicates a voltage. When load is applied to the motor handpiece, the remaining amount of batteries mark appears to become lower.
  • Page 12: Connecting Foot Pedal (Optional)

    D> How to connect each part (1) Connecting Motor Handpiece Align the mark of the cord plug of the motor handpiece with the mark of the motor hand- piece connector and insert the plug until it locks. (Fig. 3) Motor Handpiece connection Fig.
  • Page 13 E> Main Directions For Use REVERSE SPEED AC IN TORQUE CHARGE PROGRAM AUTO REVERSE POWER MEMORIZE GEAR RATIO www.enversaltan.com Fig. 6 (1) Charge (if batteries are used) 1. Securely insert the plug of the AC adapter into a power supply. 2.
  • Page 14 When charging a battery, the temperature of the battery is measured. Therefore, if this product is placed in an environment where the temperature changes rapidly (for example, near to a window exposed to sunlight, near the outlet of a air conditioner, or heater), the battery cannot be properly charged. Put this product in a place where the temperature varies little.
  • Page 15: Mounting And Removing File

    (3) Mounting and Removing File 1. Insert the file into the chuck until it stops. 2. Lightly turn the file until it engages with the latch mechanism. Push inwards to click. File Removal: Depress the push-button and pull out the file. Fig.
  • Page 16: Operation

    (5) Operation ON/OFF Button If you press the ON/OFF button briefly, the motor handpiece starts. If you re-press the button, it stops. If you hold down the ON/OFF button for more than one second, the motor hand- Fig. 9 piece starts while the button is pressed. If you release the button, it stops.
  • Page 17 AUTO REVERSING The motor handpiece rotates in reverse. When a load is removed, the motor handpiece returns to normal rotation (forward rotation) automatically. Fig. 10 AUTO STOP The motor handpiece starts in reverse. When a load is removed, the motor handpiece stops. If you want it to rotate (forward-rotate) again, re-press the ON/OFF button or re-step on the foot pedal (Optional).
  • Page 18 NOTICE When the reverse rotation (R) is set, this auto reverse function is not activat- When the batteries go down (when the remaining amount of the batteries mark indicates “ ”), the actual load may not reach the preset torque limit value.
  • Page 19 F> Additional Directions For Use (1) Program This product is programmed in advance with 1 to 9 programs according to various files to be used. You can change any preset values and have them saved to your desired settings (rotation speed, torque limit value, gear ratio and auto reverse mode).
  • Page 20 NOTICE This function is not activated unless this product is powered by the AC adapter. If this function is used, all programs will disappear and return to the original set values. Record the present program details accordingly, as needed. (3) Battery Refresh Nickel-metal-hydrate batteries may result in a decrease in charging capacity, if additional charg- ing (repeating a cycle of short-time use and recharging) is made.
  • Page 21 (4) Calibration This function is to decrease fluctuation in the rotation speed of the motor handpiece and the dif- ference in torque by the contra angle. 1. Lubricate the contra angle with an appropriate spray (see “Lubricating Contra Angle Head”). 2.
  • Page 22 G> Cleaning (1) Lubricating Contra Angle Lubricate the contra angle head only. After each use and/or before each autoclaving. 1. Screw the spray nozzle onto the Spray can by approx. 10 turns. 2. Insert the spray nozzle into the rear part of the contra angle head and lubricate the head for 2-3 Fig.
  • Page 23 H> Sterilization Sterilize the contra angle only. For the sterilization method, we recommend the autoclave sterilization method. Autoclaving 1. Brush the dirt off the surface of the contra angle head, and wipe off with a cotton cloth mois- tened with rubbing alcohol. Do not use metal brush. 2.
  • Page 24 I> Changing batteries X-SMART uses rechargeable batteries. They can be recharged 300-500 times, depending on the conditions of the motor handpiece. If the operating time or recharging time becomes shorter or the rotation power becomes weaker, although the “memory effect” described in “...
  • Page 25 4. Insert the connector of the cord of new batteries into the connector in accordance with the polarity indication label inside the battery chamber, and place the batteries into the cham- ber with care so as not to catch the cord. CAUTION In case of difficult to insert the connector onto the battery, the polarity may be incorrect.
  • Page 26 J> Error Code If the motor handpiece stops due to an abnormality such as a malfunction, overload, breakage of misuse, it automatically checks the state of the control unit and detects the cause of the abnormality, displaying an error code on the LCD panel. If an error code is displayed, turn on the power again and check whether the same error code is displayed.
  • Page 27 Error code Error Cause Check/Remedy The voltage of batteries is Put the batteries Low voltage of too low (The batteries are into the battery batteries flat or not inserted.) chamber, or replace with new batteries. The voltage of batteries is At the High voltage of too high.
  • Page 28 When trouble is found, check the following again before contacting your dealer. If none of these are applicable or the trouble is not remedied even after action has been taken, the product may have failed. Contact your dealer. X-SMART Control unit and AC adapter Problem Cause Solution The power is not turned on.
  • Page 29 Problem Cause Solution The battery charger does No batteries are inserted. Insert batteries. not work. The batteries are fully charged or in a (The CHARGE lamp does No problem state near full charge. not light.) The temperature of batteries is low. If the temperature of bat- teries is less than 0°C (32°F), the batteries are...
  • Page 30 X-SMART motor handpiece Problem Cause Solution The motor handpiece The motor handpiece cord is not con- Check the connection. does not rotate. nected. The foot pedal (Optional) is not con- Check the connection. nected. There is a break in the motor hand- Contact your dealer.
  • Page 31 Manufacturers warrant products to the original purchaser against defects in material and work- manship under normal practices of installation, use and servicing. The X-SMART control unit, motor handpiece and contra angle are guaranteed for 24 months from the date of purchase.
