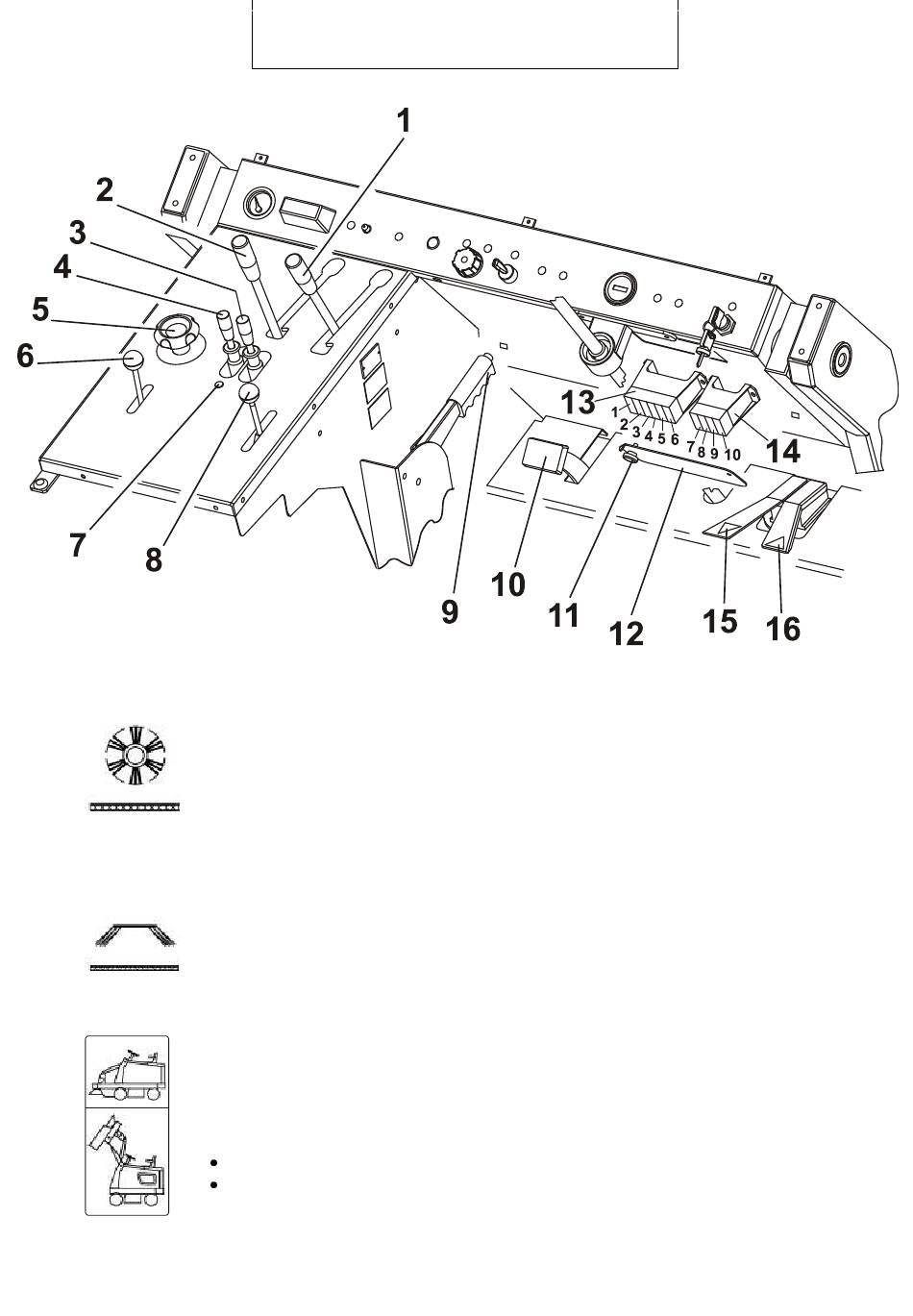

LEFT SIDE DASHBOARD
AND DRIVING COMPARTMENT
MAIN BRUSH CONTROL LEVER :
When the lever is pulled down, the main brush will start working and the green led will be on.
NOTE: The main brush works only and exclusively when:
A) When the hopper is down;
B) The hopper door is open.
C) The main brush lever is pulled down.
SIDE BRUSH LEVER:
The side brush rotates only when lowered to the floor.
To adjust the pressure turn the knob in a clockwise way to increase pressure and anit-clockwise
to decrease.
NOTE: The side brush works only and exclusively when:
A) When the main brush is working
B) The side brush lever is lowered.
RAISING AND LOWERING HOPPER LEVER.
A) To lower the hopper, lift secure and push lever forward;
B) To lift hopper lift secure and pull lever backwards:
NOTE : The hopper lifts and lowers only and exclusively when:
The lever of the main brush is lifted
The main brush is at a stand.
