American Standard MONTERREY 7500 Series Installation Instructions

CENTERSET LAVATORY FAUCETS
WITH GOOSENECK SPOUT
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
1
Turn off water at
CAUTION
main supply.

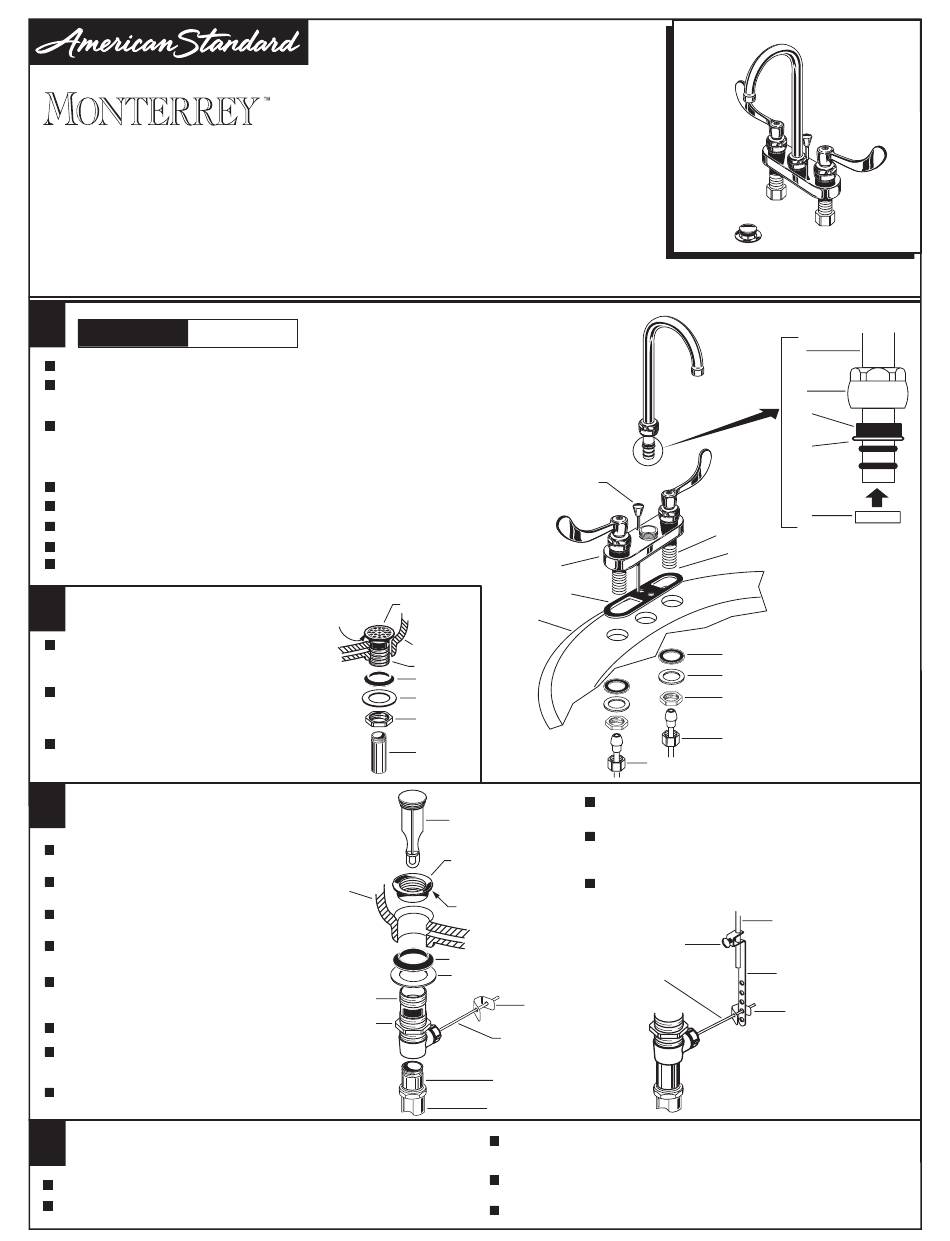

Asesemble GASKET (1) to SHANKS (2) and insert FAUCET SHANKS through holes of SINK.
Assemble RUBBER (3) and BRASS WASHERS (4), and LOCKNUTS (5) from underside of SINK. Drop
UPPER LIFT ROD (6) through hole in BODY (models 7501 only), align BODY as far forward as possible
and secure position by tightening LOCKNUTS (5).
Connect the HOT water supply to the left SHANK and the COLD water supply to the right
SHANK using sealant, appropriate connectors, and COUPLING NUTS (7).
To change spout to a swivel spout: (7500, 7501 & 7502)
Unscrew SPOUT NUT (8) and remove SPOUT (9).
Take SPOUT CLIP (10) off SPOUT (9) and remove RUBBER RING (11).
Replace RUBBER RING (11) with seperate PLASTIC RING (12) packed with faucet.
Put SPOUT CLIP (10) on SPOUT.
Reassemble SPOUT (9) to BODY.
2
GRID DRAIN ASSEMBLY
(Model 7502 only)
Apply a bead of PUTTY around underside
of DRAIN PLUG FLANGE (1). Insert DRAIN
PLUG (2) into SINK drain hole.
Hold DRAIN PLUG (2) to prevent turning
and assemble GASKET (3), WASHER (4)
and LOCKNUT (5) from underneath sink.
Insert threaded end of TAILPIECE (6)
into lower end of DRAIN PLUG (2).
Connect other end to trap.
3
INSTALL POP-UP DRAIN
(Model 7501 only)
Push TAILPIECE (1) down into TRAP
(threaded end up).
Thread LOCKNUT (2), WASHER (3) and
GASKET (4) onto DRAIN BODY (5).
Apply a bead of PUTTY to underside
of FLANGE (6).
Feed DRAIN BODY (5) up through SINK
and thread FLANGE (6) fully onto BODY (5).
Tighten LOCKNUT (2) firmly, keeping the
PIVOT ROD (7) pointed towards the back
of the SINK.
Drop STOPPER (8) into DRAIN BODY (5).
Pull TAILPIECE (1) up and thread tightly
into DRAIN BODY (5).
Position EXTENSION ROD (9) onto POP-UP
ROD (10) and tighten THUMBSCREW (11).
4
TEST INSTALLED FAUCET
Remove AERATOR.
With handle in OFF position, turn on water supplies and check
all connections for leaks.
Installation
Instructions
1
PUTTY
SINK
2
3
4
5
2
8
6
SINK
PUTTY
4
3
5
2
1
TRAP
7500 Series
7501 Series
7502 Series
7545 Series
6
BODY
1
SINK
HOT
7
Remove one end of CLIP (12) from PIVOT ROD (7)
by squeezing ends together while sliding.
Insert PIVOT ROD (7) into second or third hole
in EXTENSION (9) and reassemble CLIP (12).
(EXTENSION may need to be bent.)
Adjust STOPPER (8) height by repositioning
EXTENSION and tightening THUMBSCREW (12).
11
7
12
7
Operate both handles to flush water lines thoroughly. Check
spout mounting and hose connections for leaks.
Operate LIFT ROD and check DRAIN for leaks.
Turn handles into OFF position and replace AERATOR.
