Summit Treestands Hex SU82097 Manual page 7

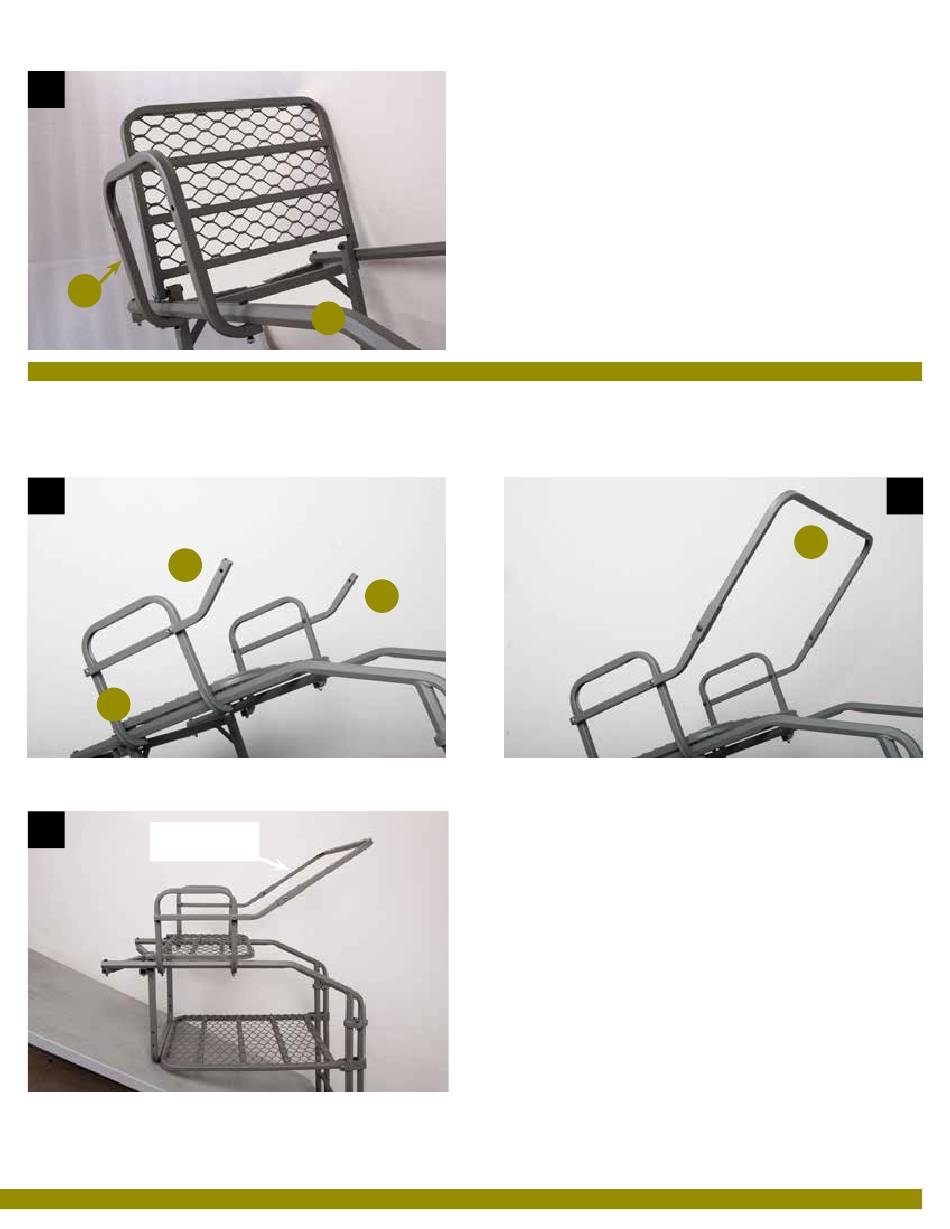

8. Place the Arm Rest (item G) onto the BOTTOM side of the Connection Tube (item F) and secure using (2) 65mm bolts with
lock nuts. See figure 11. Repeat for the other Arm Rest.
11
G
SHOOTING RAIL ASSEMBLY
9. Insert Gun Rest Rail 1 (item K) onto the OUTSIDE of the Arm Rest (item G) and secure using two 55mm bolts with wing nuts
on each side. See figure 12. Repeat for the other side.
10. Slide the Gun Rest Rail 2 (item L) onto the each Gun Rest Rail 1 and secure using (2) 40mm bolts with lock nuts as shown in
figure 13.
12
K
G
Your finished Gun Rest should look like figure 14.
14
SHOOTING RAIL
ASSEMBLY
F
K
13
L
PG 7
