Artisan

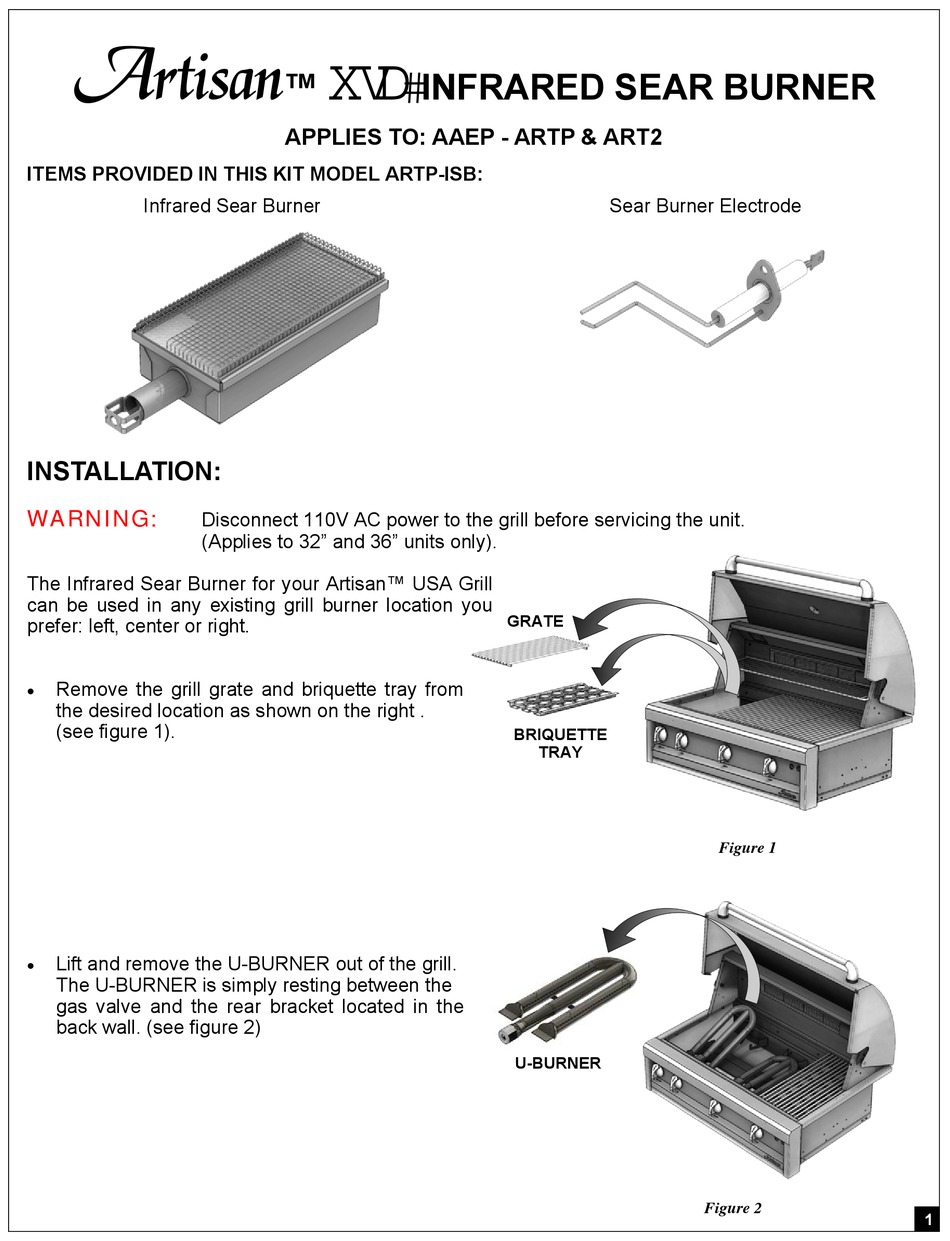

ITEMS PROVIDED IN THIS KIT MODEL ARTP-ISB:
Infrared Sear Burner
INSTALLATION:
WARNING:
Disconnect 110V AC power to the grill before servicing the unit.
(Applies to 32" and 36" units only).
The Infrared Sear Burner for your Artisan™ USA Grill
can be used in any existing grill burner location you
prefer: left, center or right.
Remove the grill grate and briquette tray from
the desired location as shown on the right .
(see figure 1).
Lift and remove the U-BURNER out of the grill.
The U-BURNER is simply resting between the
gas valve and the rear bracket located in the
back wall. (see figure 2)
86 $
™
INFRARED SEAR BURNER
APPLIES TO: AAEP - ARTP & ART2
Sear Burner Electrode
GRATE
BRIQUETTE
TRAY
U-BURNER
Figure 1
Figure 2
1
Advertisement
Table of Contents
Related Manuals for artisan ARTP-ISB
Summary of Contents for artisan ARTP-ISB
- Page 1 WARNING: Disconnect 110V AC power to the grill before servicing the unit. (Applies to 32” and 36” units only). The Infrared Sear Burner for your Artisan™ USA Grill can be used in any existing grill burner location you GRATE prefer: left, center or right.
- Page 2 Using a screwdriver, remove the electrode screw SCREW and pull the U-BURNER electrode out SLOWLY. (see figure 3) Remove the electrical wire connected to the back of the U-BURNER Electrode by gently pulling and moving from side to side. To reposition the wire to the SEAR BURNER ...
- Page 3 To adjust the gas valve LOW setting, please refer to the grill’s care and use manual. Artisan ™ USA Grills • 1085 Bixby Drive • City of Industry, CA 91745 • 888-383-8800 • 323-722-7900 • Fax 323-726-4700...
