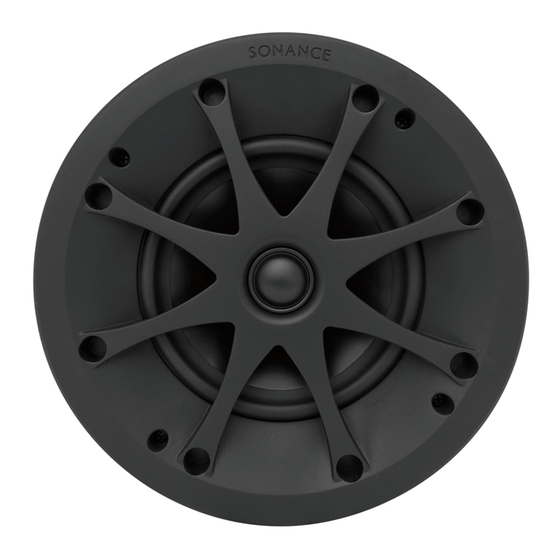

VPXT6R / VPXT6R SST
VISUAL PERFORMANCE
INSTALLATION QUICKSTART GUIDE
1. Connect speaker wires to spring terminals.
2. Double check that the positive wire (+) is connected
to the positive connector (+) and the negative wire (-)
is connected to the negative connector (-).
3. Insert speaker into the hole.
®
4. Tighten Roto-Lock
on your screw gun. NEVER OVER TIGHTEN.
5. Attach grille.
Note: Please see manual for grille painting instructions
at www.sonance.com
®
EXTREME
screws using low-torque setting
Advertisement
Table of Contents
Related Manuals for Sonance VPXT6R
Summary of Contents for Sonance VPXT6R
- Page 1 VPXT6R / VPXT6R SST VISUAL PERFORMANCE ® EXTREME INSTALLATION QUICKSTART GUIDE 1. Connect speaker wires to spring terminals. 2. Double check that the positive wire (+) is connected to the positive connector (+) and the negative wire (-) is connected to the negative connector (-).
- Page 2 VPXT6R / VPXT6R SST CUT-OUT TEMPLATE 1. Perform an obstruction survey to be certain that there are no joists, conduit, pipes, heating ducts, high-voltage electrical wires, gas lines, pocket doors, or air returns in the walls or ceiling cavities that will interfere with the speaker.
