I N S T R U C T I O N M A N U A L
L S 4 8 S AT & L S 6 8 S AT S P E A K E R S
Introduction
Thank you for purchasing SLS Speakers. When properly installed,
these speakers will provide you with years of outdoor entertainment
pleasure. To get the most out of your new speakers, please read this
manual thoroughly before you begin installation.

Box Contents

SLS Satellite box contains:
(1) Satellite speaker
(2) Silicone filled wire nuts

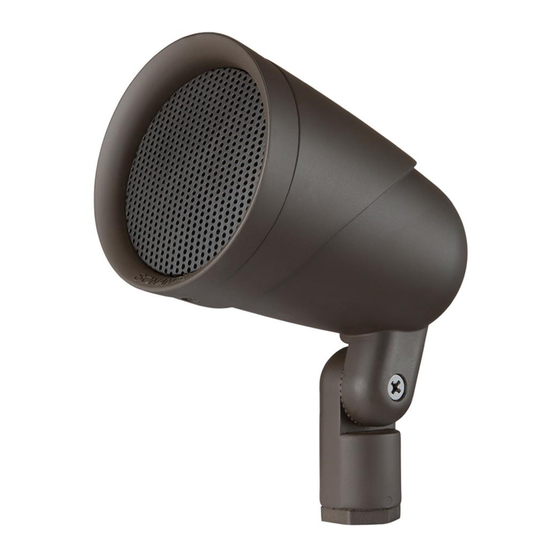

Landscape Series Satellite Speaker
Satellite Location Selection
The SLS is designed to deliver a seamless, evenly dispersed sound
field in an 'open air' environment. An array of multiple Satellite
speakers and Subwoofers should be strategically placed to minimize
'hot spots' and 'nulls' as you move around the outdoor entertainment
area. See Figure 1.
1
Figure 1
AS A GENERAL GUIDELINE, (1) SATELLITE WILL COVER ABOUT
250 SQUARE FEET OF LISTENING AREA
Select locations for the satellites that are as close as possible to the
same distance from the main listening area. When possible use high
and low locations to centralize the acoustic stage. See Figure 2.
LS48SAT
Figure 2
Sonamp DSP 2-750
Amplifier Power Planning
The maximum number of satellites and subwoofers that can
be used in a system will depend on the amplifier power,
refer to the SLS wattage calculator on the Sonance website
(www.sonance.com/outdoor/sonance-landscape-series/satellites).
