Summary of Contents for MB Connect Line mbSPIDER Series

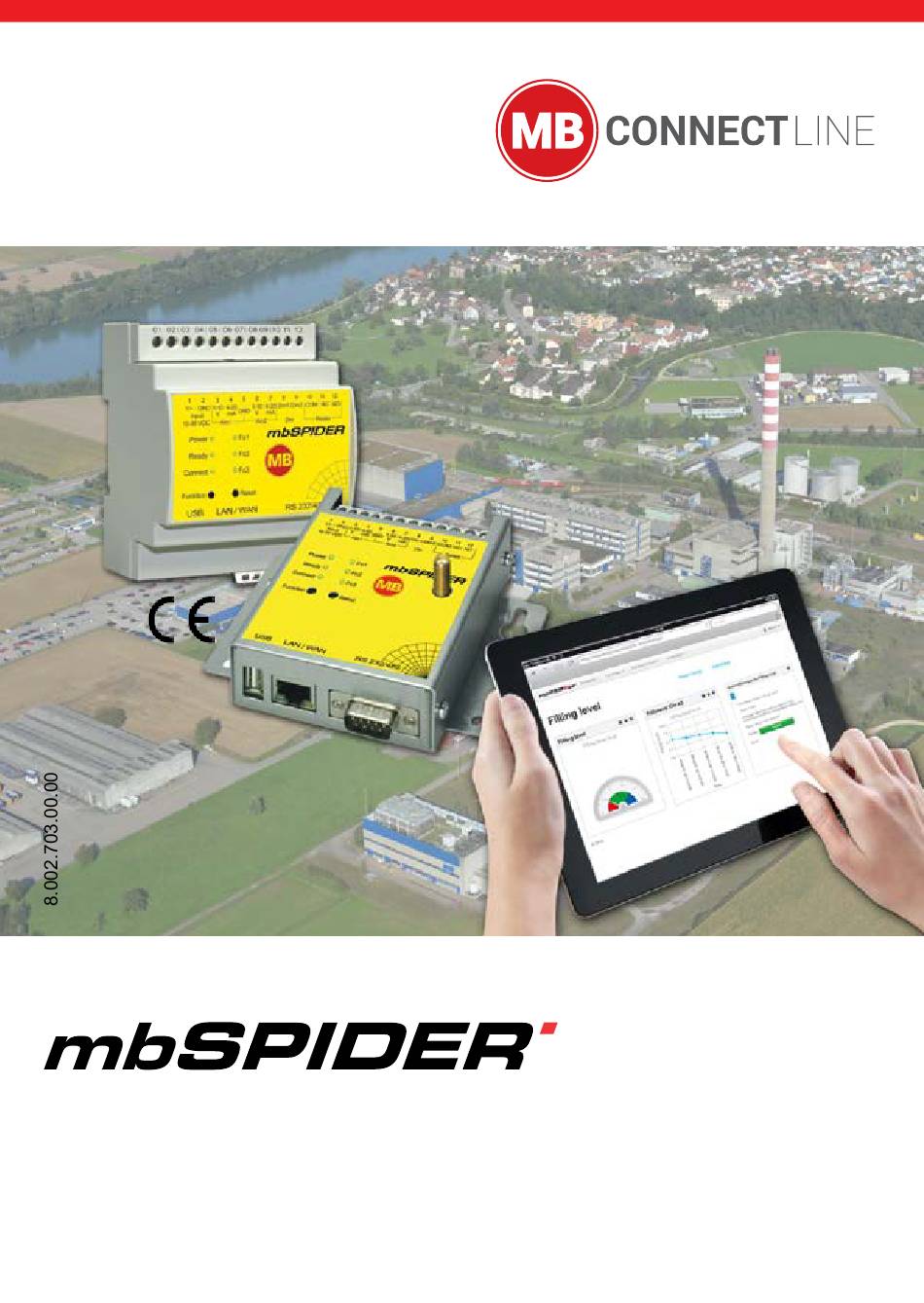

- Page 1 MDH 900, MDH 901, MDH 905, MDH 906, MDH 910, MDH 911, MDH 915, MDH 916 Quick start-up guide from firmware V 2.6.1) Dec 18 , 2018...
-
Page 2: Table Of Contents
This document is valid for the device mbSPIDER datamodem: MDH 900, MDH 901, MDH 905, MDH 906, MDH 910, MDH 911, MDH 915, MDH 916 This Quick Start Guide provides a quick overview of selected operating procedures and functions of the mbSPIDER datamodem. However, the detailed manual with the important Notes and safety instructions can NOT be replaced by this document. -
Page 3: Safety Instructions
Safety instructions ● The mbSPIDER datamodem is built to the latest technological standards and recognized safety standards (see Declaration of Conformity). ● Install the data modem in a dry location. Do not allow liquid to get inside the device, as this could result in electric shocks or short circuits. ●... -
Page 4: Using Open-Source-Software
Using Open-source-Software General Information Our products contain, amongst others, so-called open-source software that is pro- vided by third parties and has been published for free public use. The open-source software is subject to special open-source software licenses and the copyright of third parties. - Page 5 Requests must be directed to the following address, if possible under specification of the serial number: MB connectline GmbH Tel. +49 (0) 98 51 / 58 25 29 0 Fernwartungssysteme Fax +49 (0) 98 51 / 58 25 29 99 Winnettener Str.
-
Page 6: Include In Delivery
MDH 905 / 906 / MDH 901 / 911 all types 915 / 916 Should any of these parts are missing or damaged, please contact the following address: MB connect line GmbH Winnettener Str. 6 Tel.: +49 (0)9851/582529-0 91550 Dinkelsbühl Fax: +49 (0)9851/582529-99 GERMANY www.mbconnectline.com... -
Page 7: View Of Device Front Panel - Terminal Block
View of device front panel - terminal block Terminal Designation Description Power supply connection 10-30 VDC Input 10-30 VDC 0V DC connection 1-10 V Analog input 1 (voltage) Ain1 4-20 mA Analog input 1 (current) 0 V DC connection 1-10 V Analog input 2 (voltage) Ain2 4-20 mA... -
Page 8: Mounting
Mounting Switchgear cabinet hat rail mounting The mbSPIDER types MDH 900, -901, -905 and -906 are intended for switchgear cabinet installation. The devices are designed for mounting on hat rails (according to DIN EN 50 022). Put the unit to the top leadership of the DIN rail. Press the device down against the DIN rail until it clicks into place. -
Page 9: Inserting The Sim Card
Inserting the SIM card mbSPIDER types MDH 905, -906, -915 and -916 MDH 905 and MDH 906 MDH 915 and MDH 916... -
Page 10: First Time Operation
First time operation Depending on the device type, connect an antenna and insert a SIM card. Connection to the power source ATTENTION Before connecting the mbSPIDER to a network or PC, first ensure that it is properly connected to a power source, otherwise it may cause damage to other equipment. -
Page 11: Configuration Prerequisites
Configuration prerequisites • The configuration PC must have a network card. • An internet browser (for example, Google Chrome, Mozilla Firefox, etc.) must be installed on the computer. The required settings on your PC are as follows: As the mbSPIDER is delivered from the factory with the IP address 192.168.0.254, set the IP address of the computer in such a way that it is within the network 192.168.0.X (X = variable). -
Page 12: Opening The Mbspider Web Interface
Opening the mbSPIDER web interface Open your browser and enter the device‘s IP address in the address bar. The factory setting is: 192.168.0.254 Log into the device as follows: Username: admin Password: admin ADVICE Change unconditionally and without delay the default login information! -
Page 13: Loading The Factory Settings
Loading the factory settings ADVICE When the mbSPIDER is reset to the factory settings, all the data (log files, visua- lization configuration and system configuration) is lost. Ensure that no USB stick is connected to the device. Turn on the device or, if the device is on, press the Reset button.. Then immediately press the Function button and keep it pressed. -
Page 14: Factory Settings
Factory settings The mbSPIDER is delivered with the following factory settings: 192.168.0.254 IP address 255.255.255.0 Subnet mask admin Username admin Password ADVICE Change unconditionally and without delay the default login information! Technical specifications Voltage 10 - 30 V DC max. current consumption ●... - Page 15 3G-Modem (MDH906/916) GPRS | EDGE | UMTS | HSPA+ Supported networks 800, 850, 900, AWS 1700, 1900, 2100 MHz Supported frequency bands Downlink HSDPA Category 14 (21 Mbps), HSxPA category Uplink HSUPA Category 6 (5,76 Mbps) IEE802.11b/g & 802.11n (1T1R mode) up to WiFi (MDH901/911) 150 MBit/s EU (2.412GHz-2.472 GHz, 1-13 Channel)
- Page 16 SIMPLYFIED EU DECLARATION OF CONFORMITY Hereby, MB connect line GmbH declares that the radio equipment type MDH 905; MDH 915; MDH 906; MDH 916 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet www.mbconnectline.com...
