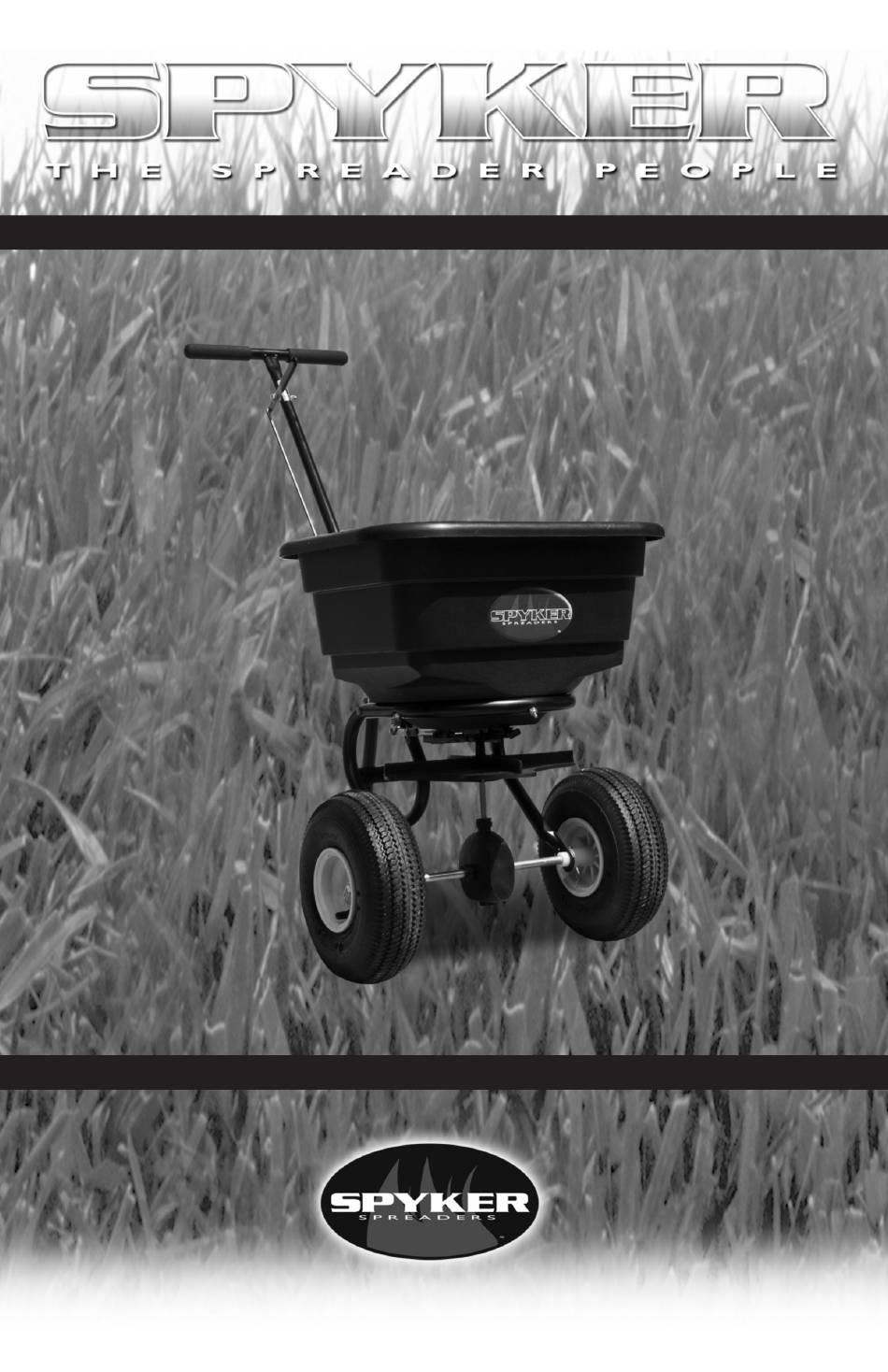

- Page 1 spread with confidence spread with confidence Spreading Chart Operation Guide Service Manual Parts List For Model: It’s the spread that counts It’s the spread that counts 3230 Industrial Parkway 1-800-972-6130 Jeffersonville, IN Fax: 888-619-2315 47130...
-
Page 2: Tools You Will Need
ssembly Instructions For Quick and Easy Assembly - First Read Entire Procedure Then Follow Carefully The Step by Step Instructions Tools you will need: 2 - 7/16” wrenches Parts you will use: • (1) Screen • (1) T Handle • (2) Handle Grips •... - Page 3 Spreader ssembly Attach wheels. Install a wheel (37) on the drive side of the axle (19). Install #10 Washer (52) onto clevis pin (20) and insert assembly through the holes in the wheel hub and axle. You may need to use Awl to align holes. Secure with #10 Washer (52) and Hairpin Cotter Pin (21).
- Page 4 (30). Insert on-off Lever Rod (46) into linkage assembly as shown. Insert other end of Lever Rod (46) into lever (47) and re-install to T-handle. Attach the end of linkage to Rate Gate Linkage with clevis pin (34) nylon spacer (45), washer (5) and hairpin cotter pin (38).
- Page 5 Spreader ssembly Spreader assembly complete. Grass Seed Spreading Chart Dial settings are approximate only. Spreading at one half rate in cross directions is usually recommended. Manufacturer’s Micro-Dial Settings Spread Bag Rate Width Full Rate Half rate (In feet Manufacturer based on Sq.
-
Page 6: Troubleshooting
Troubleshooting CONDITION Spreader pushes hard: LOOK FOR ..Dry bushings and corroded shafts. PROCEDURE..Oil these points: 1. Bearing in hopper bottom. 2. Axle bearings. 3. Idle wheel bushing. 4. -
Page 7: Exploded View
Exploded View Rotary Agitator Gear Box Washer Hopper Bottom Hopper Bottom Bearing Washer Spreading Spinner Spinner Shaft Gear Box... - Page 8 Exploded Rate Gate Assembly...
- Page 9 View Hopper & Frame Assembly...
-
Page 10: Parts List
Accuway™ SS-94-0010 Bevel Gear (nylon) SS-96-0003 Agitator Wire SS-94-0012-1 Spinner 05-46-0019 Spinner Shaft SS-90-0002 1/8” x 7/8” Roll Pin / Bevel Gear / Spinner SS-90-0001 1/8” x 3/4” Roll Pin / Bevel Gear / Pinion Gear SS-92-0002 Felt Washer / Above Gearbox & Below Agitator... -
Page 11: Read Before Using
Read Before Using SPEED - ACCURACY - FREEDOM FROM STRIPES AND STREAKS are yours - when you use this Spreader. The spread width ranges from 6 ft. to 12 ft. wide, depending on the volume/density, particle size of the material and the rate of travel. The spread thins or feathers at the outer edges, eliminating sharp, “Edge of spread”... - Page 12 Read Before Using Rotary gitator Use the rotary agitator only if needed. Free-flowing, lump-free materi- als will not require the agitator. The rotary agitator is easily installed or removed. Note the clockwise rotation & sweep. Place felt washer around spinner shaft before inserting agitator. OIL BEARINGS AND ALL MOVING PARTS Make certain the spreader is running freely Now You are Ready to Put Material in the Hopper...
- Page 13 Read Before Using NOTE: With the rotary agitator installed, the rate gate closed (not spreading) and with material in the hopper, the spreader will push harder than normal. (This is because the agitator is stirring the mater- ial and it has no place to go.) RECOMMENDATION: When not spreading and the spreader is being pushed some distance, tip the spreader so only the idle wheel is on the ground.
-
Page 14: Did You Know
Reliability - You can count on. Accuway spread control system is so innovative, ® it's patented. Is so successful it's used on all Spyker model 46 spreaders. Is so simple. A complicated problem is solved with a fundamental solution. (Newton's law of motion: To every action there is always an opposed and equal reaction.) -
Page 15: Limited Warranty
Spyker Spreaders LLC will not be liable for any loss, damage or expense including, but not limited to, consequential or incidental damages, arising from the operation, condition or use of the item. -
Page 16: Features And Benefits
High grade plastic non-corroding wheels with nylon bearings, no lubrication MODEL 299 Mulch Spreader required, ENSURES trouble free maintenance. 3230 Industrial Parkway • Jeffersonville, IN 47130 1-800-972-6130 • Fax 888-619-2315 © 2009 Spyker Spreaders 05-99-0101 Rev. E...
