TeleAlarm TA72 User Manual

Hide thumbs Also See for TA72:
Table of Contents

Advertisement

Quick Links

Download this manual
TA72 User Manual
TA72_UM_EN_V1.5_2019.09
en
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA72 and is the answer not in the manual?

Questions and answers

Related Manuals for TeleAlarm TA72

Summary of Contents for TeleAlarm TA72

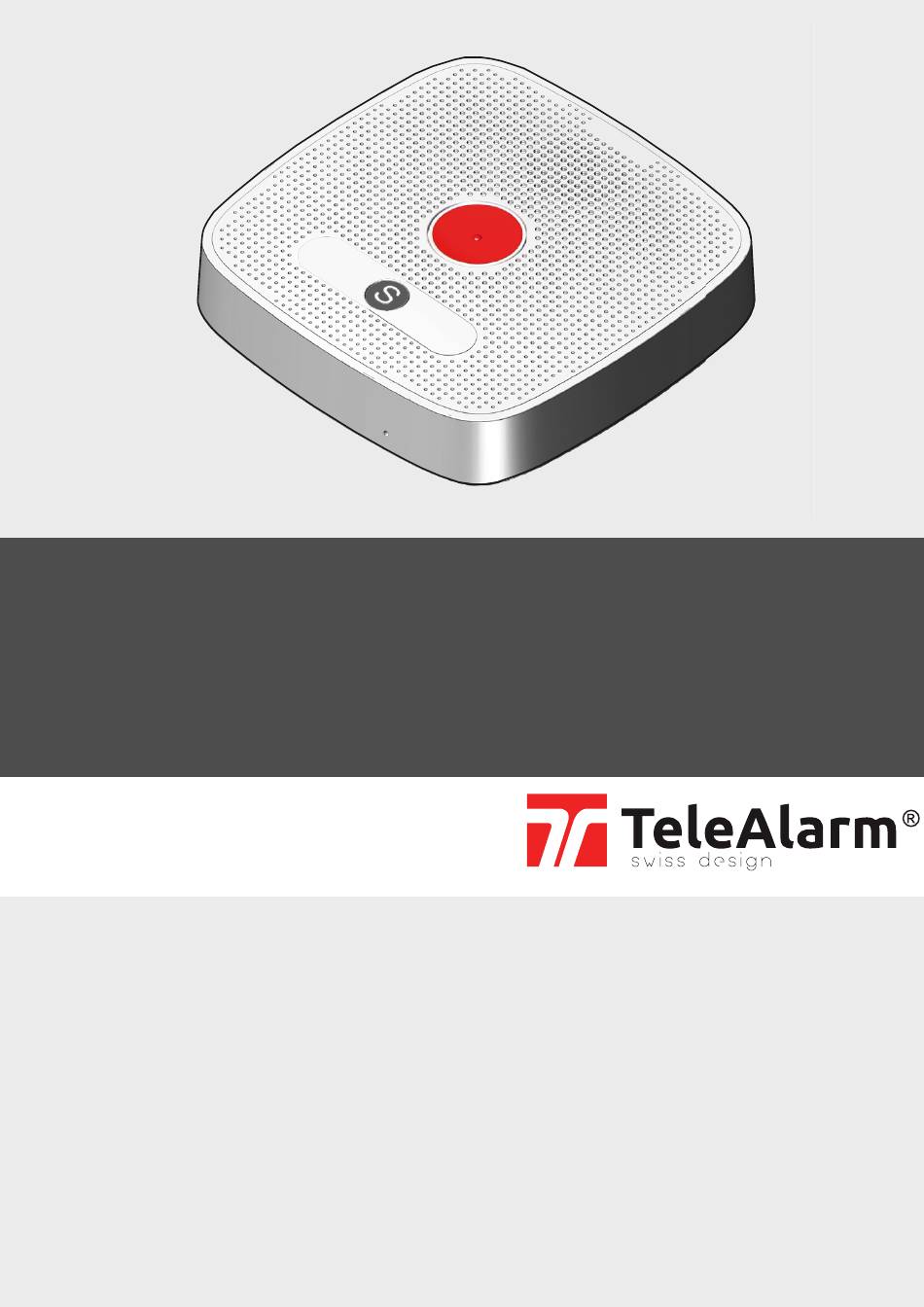

  • Page 1 TA72 User Manual TA72_UM_EN_V1.5_2019.09 User Manual...
  • Page 2 THIS PAGE IS LEFT INTENTIONALLY BLANK...

  • Page 3: Table Of Contents

    Local voice announcements from the device ..........14 4.4.3 Error messages ....................15 Installation ..............16 Installation recommendations ............16 Installing the TA72 ................ 17 Connecting the TA72 ..............18 5.3.1 PSTN connection .................... 18 5.3.2 External telephone connection (option) ............19 5.3.3...
  • Page 4 6.2.1 Maintenance button ..................24 6.2.2 Resetting the TA72 ..................24 6.2.3 Restoring the TA72 to default settings ............24 6.2.4 Entering Service mode ................... 25 6.2.5 Exiting Service mode ..................25 Registering wireless transmitters 1 and 2 ........26 Setting Dynamic Host Configuration Protocol (DHCP) and announcing IP address ..............
  • Page 5 Disposing of the device ..............38 Replacing the unit battery ............. 39 Replacing the battery of the wireless transmitter ......42 Appendix ............... 43 10.1 TA72 technical specifications ............43 10.2 Technical specifications of wireless transmitter ......44 10.3 Certifications and approvals ............45 10.4...

  • Page 6: Safety

    Intended use Intended use means that the TA72 may only be operated within the limits of its technical specifications and in conformity with the information given in these instructions. Any other use will be regarded as misuse and can result in malfunctions and damage.

  • Page 7: Warnings And Symbols Used

    When unplugging the device from the power outlet, never pull on the power cord but always grip the power adapter. – Connect the TA72 only to a professionally installed 230V AC /50 Hz power outlet with a fuse of up 16 A near the TA72. –...
  • Page 8 – Repairs may only be performed by an authorised service partner. – Be sure to allow the required space around the device. The TA72 must be easily accessible. – The wireless transmitter provided with the TA72 contains a button cell battery. If the button cell battery is swallowed, it can cause severe internal burns in just two hours and can lead to death.

  • Page 9: Features

    The device has two basic operating modes: 1. The TA72 is part of a carephone system that consists of an alarm receiving centre that can be reached at any time and the device itself. Calls are sent to this alarm receiving centre.

  • Page 10: Scope Of Delivery

    | Scope of delivery TA72 User Manual Scope of delivery 1. TA72 including pre-installed, rechargeable unit battery 2. Quick Guide for users 3. Optional manual for technicians/installers 4. Power adapter 5. Optional telephone cable and/or network connection cable 6. Necklace or bracelet 7.

  • Page 11: Product Description

    TA72 User Manual Product description | en Product description Device description 1. Cancel / Action button 2. Emergency call button 3. Maintenance button Emergency call button If you require help, press the Emergency call button to initiate a call. The call will be answered either by a person at the alarm receiving centre, a relative or other individual, according to the programmed destination.

  • Page 12: Cancel / Action Button (S Button)

    4.3.2 Take the first incoming call If your TA72 is delivered to you unprogrammed, this special function allows you to accept the first incoming call (PSTN connection only). ► Press the Action button 3 times within 3 seconds.

  • Page 13: Device Indications

    TA72 User Manual Product description | en Device indications 4.4.1 Light signals The TA72 has two indicator lamps that display the status of the device. The symbols have the following meanings: Lamp shines bright Lamp shines dull Lamp flashes (0.5 s) Lamp flashes quickly (0.1 s)

  • Page 14: Local Voice Announcements From The Device

    | Product description TA72 User Manual Status Description or action Blue Speak Speak (indication for the hearing impaired) Listen Listen (indication for the hearing impaired) Repeated call When a call is repeated Call activated If the call is not acknowledged, a new call will be sent.

  • Page 15: Error Messages

    TA72 User Manual Product description | en 4.4.3 Error messages Error messages are announced by the TA72 locally and/or by the telephone in phone protocols. When synthetic speech mode is disabled, error messages are only announced by beeps. Voice Media "Synthetic speech...

  • Page 16: Installation

    The power adapter of the TA72 must be at least 10 cm away from the device. – The power adapter must be plugged into a wall socket in the proximity of the TA72 and must remain easily accessible at all times.

  • Page 17: Installing The Ta72

    Installing the TA72 Placing on a surface The TA72 is designed for use at home. Many items of furniture are coated with a variety of paints, varnishes and plastics. The feet of the TA72 may leave marks on furniture as a result of chemical processes.

  • Page 18: Connecting The Ta72

    Connecting the TA72 5.3.1 PSTN connection 1. Insert the plug of the telephone cable into the corresponding socket (1) on the TA72. Feed the cable through the cable channel and through the opening on the back of the device. 2. Fit the plug of the telephone cable into the socket of the telephone outlet.

  • Page 19: External Telephone Connection (Option)

    External telephone connection (option) 1. Insert the plug of the external telephone cable into the corresponding socket (2) on the TA72. Feed the cable through the cable channel and through the opening on the back of the device. 2. Fit the other end of the external telephone cable into your telephone.

  • Page 20: Ethernet (Lan) Connection

    Ethernet (LAN) connection 1. Insert the plug of the network connection cable into the corresponding socket (3) on the TA72. Feed the cable through the cable channel and through the opening on the back of the device. 2. Depending on your installation configuration, fit the other end of the network connection cable into your router outlet or switch.

  • Page 21: Power Connection

    Reference Manual. INFO The unit battery will charge up when the TA72 is connected to the main power supply. The specified standby time is available when the battery is fully charged, after approx. 16 hours. If the device is disconnected and stored, connect it to the main power supply at least once every 6 months to allow the battery to charge.

  • Page 22: Switching Off

    | Installation TA72 User Manual Switching off To switch the TA72 off without battery operation, remove the plug of the power adapter from the corresponding socket (4). INFO If you remove the power adapter from your power outlet, the unit announces 'power failure'.

  • Page 23: Programming

    TA72 User Manual Programming | en Programming Before you program the TA72, you must be familiar with all of the device's functions. Programming may only be carried out by trained and authorised personnel. NOTE Correct programming of the TA72 is essential to ensure the full functionality of the device.

  • Page 24: Special Button Functions

    1. Press the Maintenance button for 0.5 to 2 seconds and then release it. 2. The device beeps and reboots. 6.2.3 Restoring the TA72 to default settings 1. Press the Maintenance button for at least 20 seconds. 2. The device announces <Setup reset>.

  • Page 25: Entering Service Mode

    The TA72 automatically exits Service mode after performing function 1, 2 or 3. Press any button on the TA72 to exit Service mode after performing function 4. INFO If no button is pressed for eight seconds, the TA72 will automatically exit Service mode. TA72_UM_EN_V1.5_2019.09_Final © TeleAlarm SA...

  • Page 26: Registering Wireless Transmitters 1 And 2

    1. Press the Maintenance button and use function 1 or 2. ► If necessary, see section 6.2.4 "Entering Service mode", page 25. ► It is possible to assign up to 2 wireless transmitters to the TA72 (the first with function 1 and the second with function 2).

  • Page 27: Wireless Transmitter Range Test

    Programming | en Wireless transmitter range test It is possible to switch the TA72 to test mode in order to test the radio range of the wireless transmitter. If you press the wireless transmitter button, the TA72 emits an acoustic signal without initiating an emergency call.

  • Page 28: Additional Devices

    1. Press the button on the wireless transmitter. ► The indicator lamp lights up once as confirmation. ► The TA72 announces <Radio button x> (x is the number of the wireless transmitter) and the call sequence starts. An emergency call made by mistake can be cancelled during the pre-alarm by pressing the Action button on the TA72.

  • Page 29: Installing Wireless Transmitter On Necklace

    TA72 User Manual Additional devices | en Installing wireless transmitter on necklace 1. Insert the thin wire in the hole of the ring. 2. Pass the necklace cord through the loop formed by the thin wire. 3. Pull the necklace cord until the thin wire is passed around the ring.

  • Page 30: Shortening The Necklace Cord

    NOTE Do not tie knots in the cord. Wireless detectors Up to 10 wireless transmitters can be registered to your TA72. In order to work correctly, they must be paired to your device. For more information, see the Reference Manual.

  • Page 31: Operation

    Communication is then established in full duplex. INFO If button 7 is not pressed, the TA72 hangs up after reading its message. The call sequence is then continued. 6. Once the call has been accepted, the following functions are available (see table in section 8.3 "Button functions on a landline telephone", page 32).

  • Page 32: Button Functions On A Landline Telephone

    Interrupt all announcements played by the TA72 and switch to duplex mode (two-way operation) 8+8 + Cancel the repeated call function for the call by pressing 8 twice, then 0 twice Reject the call and terminate. The TA72 dials the next number on the list. © TeleAlarm SA TA72_UM_EN_V1.5_2019.09_Final...

  • Page 33: Taking Phone Calls

    This function is only available with a PSTN connection. The TA72 can be programmed in order to answer phone calls using the emergency call button on the device or using the wireless transmitter. To do this, make sure that the programming step "Incoming call recognition"...

  • Page 34: Test Instructions

    Make sure you perform a test regularly by sending a manual test emergency call with the wireless transmitter. This will test the wireless connection between the wireless transmitter and the TA72 and the connection between the TA72 and the alarm receiving centre. WARNING! Risk to the person in need of assistance as a result of failed emergency calls.
  • Page 35 Voltage monitoring In the event of a voltage failure on the TA72, an acoustic error message is output on the device. If alarm receivers are configured, the error message and re-establishment of the mains voltage supply are transmitted automatically.

  • Page 36: Cleaning, Disinfection, Maintenance, Reuse

    Do not spray cleaning agents or disinfectants directly onto the TA72. If a liquid is spilled into the loudspeaker holes or the buttons of the TA72, simply hold the device upside down to remove the liquid from the device. Gently shake the device if necessary.

  • Page 37: Maintenance

    TA72 to offer maximum safety over its entire service life, maintenance must be carried out at least every five years without user changes. 1. Replace the unit battery of the TA72 after five years at the latest, see section 9.5 "Replacing the unit battery". TeleAlarm recommends replacing the battery with a replacement battery from TeleAlarm after only three years (order number T.200.001.296).

  • Page 38: Disposing Of The Device

    | Cleaning, disinfection, maintenance, reuse TA72 User Manual Disposing of the device Electrical or electronic devices that are no longer serviceable must be collected separately and sent for environmentally compatible recycling (in accordance with the European Directive on Waste Electrical and Electronic Equipment). To dispose of old electrical or electronic devices, you should use the return and collection systems established in the country concerned.

  • Page 39: Replacing The Unit Battery

    Cleaning, disinfection, maintenance, reuse | en Replacing the unit battery The unit battery of the TA72 has a limited lifetime and should be replaced after three years, or if the device announces the error <Unit battery empty>. Replace the battery even if the device is continually connected to the main power supply.
  • Page 40 | Cleaning, disinfection, maintenance, reuse TA72 User Manual 2. Unscrew the four screws on the bottom of the device and remove the lower cover. 3. Disconnect the plug of the backup battery from the device. 4. Lever off the battery with a screwdriver and release it from the two braces. Pull it out gently.
  • Page 41 8. Place the cover back on the device and screw in the four screws. 9. Reconnect all plugs to the device as described in section 5.3 "Connecting the TA72". 10. Perform a test as described in section 8.5 "Test instructions".

  • Page 42: Replacing The Battery Of The Wireless Transmitter

    | Cleaning, disinfection, maintenance, reuse TA72 User Manual Replacing the battery of the wireless transmitter The battery of the wireless transmitter should be replaced when the integrated LED flashes three times when the button is pressed. NOTE The wireless transmitter should be serviced by trained and authorised personnel only.

  • Page 43: Appendix

    8 levels Voice message Recordable, max. 10 seconds Hands-free range Min. 15 m to TA72 (voice possibility when telephone is on-hook) Self-test function/test call PSTN: Freely selectable from 1 to 28 days. LAN connection: Freely selectable from 1 to 999 hours...

  • Page 44: Technical Specifications Of Wireless Transmitter

    | Appendix TA72 User Manual Connectivity – Ethernet/LAN (10/100 MB/s) – Phone line (PSTN) – External telephone *) The first digit of the degree of protection IP32 or IP30 has the following meaning: 3 means protection against solid foreign objects with a diameter of ≥ 2.5 mm and against access with a tool.

  • Page 45: Certifications And Approvals

    TA72 User Manual Appendix | en 10.3 Certifications and approvals CE Directives LVD 2014-35-EU, EMC 2014-30-EU, RED 2014/53/EU, RoHS 2011/65/EU Standards complied with – EN 50134-1 – EN 50134-2 – EN 50134-3 – EN 50134-5 – EN 301489-1 V2.1.1 –...

  • Page 46: Licences

    10.4 Licences The TA72 firmware contains a library, called lwIP, which is licensed under the BSD licence: Copyright © 2001-2004 Swedish Institute of Computer Science. All rights reserved. Redistribution and use of the lwIP library in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1.

  • Page 47: Wall Mounting

    TA72 User Manual Appendix | en 10.6 Wall mounting For wall mounting, you will need two screws with a shank diameter of less than 5 mm and a head diameter between 7 and 9 mm, and two suitable wall plugs.
  • Page 48 TeleAlarm SA Rue du Pont 23 2300 La Chaux-de-Fonds Switzerland www.telealarm.com © Copyright TeleAlarm SA, 2019 TeleAlarm Europe GmbH Hertzstraße 2 04329 Leipzig Germany Contact in UK Tel: +44 (0) 333 0124392 info-uk@telealarm.com...
