TeleAlarm TA72 User Manual

Hide thumbs Also See for TA72:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
TA72
TA72-UM-EN | V1.0 | 2016.12
en
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA72 and is the answer not in the manual?

Questions and answers

Related Manuals for TeleAlarm TA72

Summary of Contents for TeleAlarm TA72

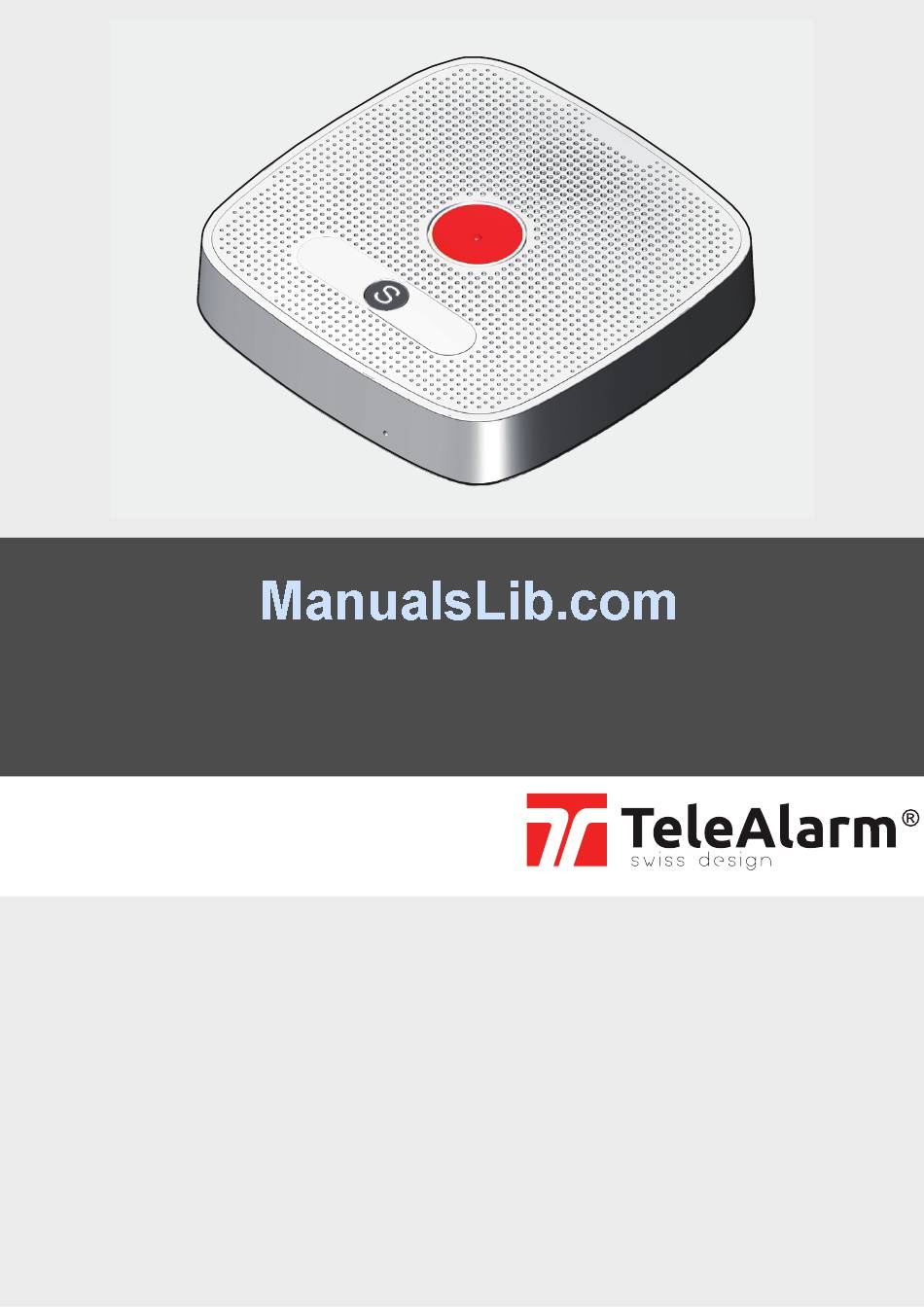

  • Page 1 TA72 TA72-UM-EN | V1.0 | 2016.12 User Manual...
  • Page 2 THIS PAGE IS LEFT INTENTIONALLY BLANK...

  • Page 3: Table Of Contents

    Local voice announcements from the unit ............12 4.4.3 Error messages ....................13 Installation ..............14 Installation recommendations ............14 Placing the TA72 ................14 Connecting the TA72 ..............15 5.3.1 PSTN connection .................... 15 5.3.2 External telephone connection (option) ............16 5.3.3...
  • Page 4 6.2.1 Maintenance button ..................20 6.2.2 Reset the TA72 ....................20 6.2.3 Restore the TA72 to factory settings .............. 20 6.2.4 Enter Service mode ..................21 6.2.5 Exit Service mode ................... 21 Wireless transmitters 1 and 2 pairing ........... 22...
  • Page 5 TA72 | en 10.2 Licences ..................37 10.3 Conformity ..................38 10.4 Wall mounting ................38 TA72_UM_EN_V1.0_2016.12_FINAL © TeleAlarm SA...

  • Page 6: Safety Instructions

    When unplugging the unit from the power outlet, never pull on the power cord but always grip the power adapter. – Connect the TA72 only to a professionally installed 230V AC /50 Hz power outlet with a 16 A fuse near the TA72. –...

  • Page 7: Features

    The device has two basic operating modes: 1. The TA72 is part of a social alarm system that consists of a monitoring centre that can be reached at any time and the device itself. Calls are sent to this monitoring centre.

  • Page 8: Scope Of Delivery

    | Scope of delivery TA72 Scope of delivery 1. TA72 including pre-installed rechargeable backup battery 2. Quick user guide 3. Power supply unit 4. Phone cable (optionally with a country-specific telephone plug) and / or Ethernet cable 5. Necklace or bracelet 6.

  • Page 9: Product Description

    If you require help, press the emergency call button to initiate a call. The call will be answered either by a person at the monitoring centre or a relative or other individual, according to the programmed destination. TA72_UM_EN_V1.0_2016.12_FINAL © TeleAlarm SA...

  • Page 10: Cancel / Action Button (S Button)

    4.3.2 Take the first incoming call If your TA72 is delivered to you unprogrammed, this special function allows you to accept the first incoming call (PSTN connection only). ► Press the action button 3 times within 3 seconds.

  • Page 11: Action Button: Unit Status

    The action button flashes if there is a malfunction. Press the action button to announce the status. Device indications 4.4.1 Light signals The TA72 has two indicator lamps that display the status of the unit. The symbols have the following meanings: Lamp shines bright Lamp shines dull Lamp blinks (0.5 s) Lamp flashes (0.1 s)

  • Page 12: Local Voice Announcements From The Unit

    When a repeated call is acknowledged on the unit. "Call ended" When a call back is acknowledged on the unit. "Radio button [x]" When a wireless transmitter button is pressed, x being the number of the transmitter, from 1 to 10. © TeleAlarm SA TA72_UM_EN_V1.0_2016.12_FINAL...

  • Page 13: Error Messages

    TA72 Product description | en 4.4.3 Error messages Error messages are announced locally by the TA72. When the TA72 is in synthetic speech disabled mode, error messages are only announced by beeps. Voice Synthetic speech Meaning and action needed announcement disabled mode "Power failure"...

  • Page 14: Installation

    Construction materials affect the range of the device. For example, concrete walls with steel reinforcements hamper the radio signal more than a brick wall. – Location of the TA72 affects the range of the transmitter. The best place to locate it is a central room. Placing the TA72 Placing on a surface The TA72 is designed for use at home.

  • Page 15: Connecting The Ta72

    5.3.1 PSTN connection 1. Insert the plug of the telephone cable into the socket (1) on the TA72. Feed the cord through the cable channel and through the opening on the back of the unit. 2. Fit the plug of the telephone cable into the socket of your telephone outlet.

  • Page 16: External Telephone Connection (Option)

    5.3.2 External telephone connection (option) 1. Insert the plug of the external telephone cable into the socket (2) on the TA72. Feed the cord through the cable channel and through the opening on the back of the unit. 2. Fit the other end of the external telephone cable into your telephone.

  • Page 17: Ethernet (Ip) Connection

    5.3.3 Ethernet (IP) connection 1. Insert the plug of the network connection cable into the socket (3) on the TA72. Feed the cord through the cable channel and through the opening on the back of the unit. 2. According to your installation, fit the other end of the network connection cable into your router outlet or switch.

  • Page 18: Power Connection

    5.3.4 Power connection 1. Insert the plug of the power supply into the socket (4) on the TA72. Feed the cord through the cable channel and through the opening on the back of the unit. 2. Plug the power adapter into the power outlet.

  • Page 19: Programming

    Before you program the TA72 you must be familiar with all of the unit's functions. Programming is specifically intended for authorized personnel only. NOTICE! Correct programming of the TA72 is important for the full function of the unit. Please refer to the Reference Manual for more information on programming. Programming methods Three programming methods are available to program your TA72: –...

  • Page 20: Special Key Functions

    1. Press the maintenance button for 0.5 to 2 seconds and then release it. 2. The unit beeps and reboots. 6.2.3 Restore the TA72 to default settings 1. Press the maintenance button for at least 20 seconds. 2. The unit announces: "Setup reset".

  • Page 21: Enter Service Mode

    The TA72 automatically exits the Service mode after performing feature 1, 2 or 3. Press any button on the TA72 to exit feature 4. NOTICE! If no button is pressed for 8 seconds the TA72 will automatically exit the Service mode. TA72_UM_EN_V1.0_2016.12_FINAL © TeleAlarm SA...

  • Page 22: Wireless Transmitters 1 And 2 Pairing

    1. Press the maintenance button and use feature 1 or 2. ► If needed see Section 6.2.4 Enter Service mode, Page 21. ► It is possible to assign up to 2 wireless transmitters to the TA72 (the first with feature 1 and the second with feature 2).

  • Page 23: Radio Frequency (Rf) Range Test

    Programming | en Radio Frequency (RF) range test It is possible to set the TA72 into test mode in order to test the RF range of the transmitter. Pressing the wireless transmitter button generates an acoustic signal without starting an alarm.

  • Page 24: Appendix

    1. Press the button on the wireless transmitter. ► The indicator lamp lights up once as confirmation. ► The TA72 announces "radio button [x]" (x being the number of the transmitter) and the call sequence starts. An emergency call made by mistake can be cancelled during the pre-alarm by pressing the action button on the TA72.

  • Page 25: Licences

    1. Insert the thin wire in the hole of the ring. 2. Pass the necklace cord in the loop formed by the thin wire. 3. Pull the necklace cord until the thin wire is passed around the ring. TA72_UM_EN_V1.0_2016.12_FINAL © TeleAlarm SA...

  • Page 26: Conformity

    CAUTION! Do not tie knots in the cord. Wireless detectors Up to 10 wireless transmitters can be registered to your TA72. They must be paired to your device to work correctly. For more information, refer to the Reference Manual. © TeleAlarm SA...

  • Page 27: Operation

    NOTICE! If the key "7" is not pressed on the phone, the TA72 hangs up after reading its message. 6. Once the call has been accepted, the following features are available (see table "Key functions on the private phone", Page 28).
  • Page 28 If the emergency call is not terminated by pressing "0" twice, or not extended by pressing "1" twice, the call will not be properly processed. The TA72 will automatically dial the next call number when the existing call has been cancelled.

  • Page 29: Taking Phone Calls

    NOTICE! This feature is only available on PSTN connection. The TA72 can be programmed in order to answer phone calls using the emergency call button on the unit or using the wireless transmitter. For this, the programming step "Incoming call recognition" must not be set to 0. Refer to the Reference Manual.

  • Page 30: Test Instructions

    Make sure you perform a test regularly, by sending a manual test alarm with the wireless transmitter. This will test the wireless connection between the transmitter and the TA72, and will also test the connection of the TA72 to the monitoring centre.

  • Page 31: Maintenance

    ® – If a liquid is spilled in the loudspeaker holes or the buttons of the TA72, simply hold the unit upside down to remove the liquid from the unit. Gently shake if necessary. Perform a test to check proper speech function (see Section 8.4 Test instructions).

  • Page 32: Replacing The Backup Battery

    TA72 Replacing the backup battery The backup battery of the TA72 has a limited operating life and should be replaced after 3 years, or if the device announces the error "unit battery empty" even if it is powered by the main power supply.
  • Page 33 2. Unscrew the 4 screws on the bottom side of the device and remove the back cover. 3. Disconnect the plug of the backup battery from the device. 4. Lever off the battery with a screwdriver and release it from the 2 braces. Pull it out gently from its location. TA72_UM_EN_V1.0_2016.12_FINAL © TeleAlarm SA...
  • Page 34 8. Place the cover back on the device and screw the 4 screws. 9. Reconnect all the plugs to the unit, as explained in Section 5.3 Connecting the TA72. 10. Perform a test as explained in Section 8.4 Test instructions.

  • Page 35: Replacing The Wireless Transmitter Battery

    6. Discard the old battery according to Section 9.2 Device disposal. DANGER! The wireless transmitter provided with the TA72 contains a button cell battery. If the button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.

  • Page 36: Appendix

    869.2125 MHz RF Receiver Complies with class 1 as specified in EN 300220-1 V2.1.1 Ingress protection class – TA72: IP32 (IP30 wall mounting) – Wireless transmitter: IP67 Environmental class Class 1 as specified in EN 50134-3 Max. number of wireless...
  • Page 37 10.2 Licences The TA72 firmware contains a library, called lwIP, which is licensed under the BSD licence: Copyright © 2001-2004 Swedish Institute of Computer Science. All rights reserved. The lwIP library redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1.
  • Page 38 10.3 Conformity All connected parts must meet the electric strength of TNV3, EN 60950. The TA72 is designed for operation on the public analogue telephone network and Ethernet network. The wireless transmitter that is supplied with the unit uses the frequency specially reserved for social alarm calls in Europe.
  • Page 39 TA72 Appendix | en THIS PAGE IS LEFT INTENTIONALLY BLANK TA72_UM_EN_V1.0_2016.12_FINAL © TeleAlarm SA...
  • Page 40 TeleAlarm SA Rue du Pont 23 2300 La Chaux-de-Fonds Switzerland www.telealarm.com © Copyright TeleAlarm SA, 2016 TeleAlarm Europe GmbH Hertzstraße 2 04329 Leipzig Germany Tel: +44 (0)74 14 69 72 95 info-uk@telealarm.com...
