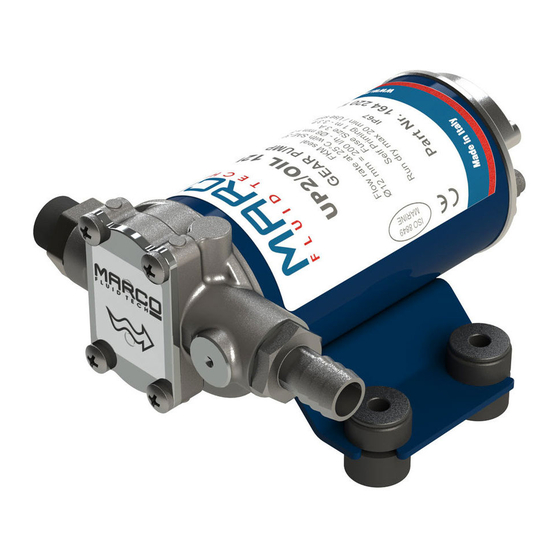

- Page 1 ELETTROPOMPA AUTOADESCANTE PER TRAVASO LIQUIDI SELF-PRIMING ELECTRIC PUMP FOR TRANSFERRING VARIOUS LIQUIDS AVVERTENZE D’USO INSTRUCTIONS FOR USE 164 662 12 - UP2/A 12V 164 662 13 - UP2/A 24V © 2014 S.p.A.
- Page 2 E N G ATTIVAZIONE VALVOLA DI SFIATO / AIR VENT VALVE ACTIVATION Al primo avvio della pompa, oppure in caso di svuotamento del serbatoio, agire brevemente sulla valvolina manuale per sfogare l'aria e favorire l'adescamento pompa. Una volta azionata la pompa, richiudere la valvolina. E’...
- Page 3 E N G PRODUCT DESCRIPTION Self-priming gear pump, integrated check valve and pressure switch: to be used as automatic pump for boats, trucks, camper, etc. Nichel-plated brass body, PTFE gear, stainless-steel shaft and lip seal. The pressure switch is preset at 1,5 bar. TECHNICAL DETAILS CODE TYPE...
-
Page 4: Transportation And Handling
E N G FLUIDS ALLOWED / NOT ALLOWED Allowed: FRESH WATER AND SEA WATER DIESEL FUEL with viscosity between 2 and 5.35 cSt (relative to 37,8°C temperature) Minimum flashpoint (PM): 55°C. Not allowed: Related dangers PETROL (GASOLINE) FIRE EXPLOSION FIRE EXPLOSION FLAMMABLE LIQUIDS with PM <... - Page 5 E N G WARNING: THE PUMP MOTOR IS NOT EXPLOSION PROOF. Do not install the pump where flammable vapours or gases may be present. Install the pump in an accessible place for inspection. The pump is IP53 protection rated. It is good practice to avoid any pump contact with water splashes possibly causing water seepage into the motor with high risk of internal oxidation and/or short circuit.
-
Page 6: Troubleshooting
E N G To ensure the correct directional flow of the fluid as indicated by the arrow on the top of the pump, it is necessary to connect the positive pole ( + ) of the battery supply to the red wire on the motor end-cap and the negative pole ( - ) to the black wire. -
Page 7: Environmental Disposal
- It is recommended that a specialized service technician be consulted for any pump repair work or the replacement of worn out internal components, exclusively with original spare parts; - During the warranty period, only by authorized Marco S.p.A. personnel, failing which the warranty will expire. ENVIRONMENTAL DISPOSAL Do not dispose of pumps into household waste. - Page 8 E N G SCHEDA DI ASSEMBLAGGIO / EXPLODED VIEW Pos. Q.tà Descrizione Pos. Q.tà Descrizione CORPO LINGUETTA PERNO INGRANAGGIO TRAINANTE ANELLO DI TENUTA O-RING TIRANTE PIATTELLO CARCASSA VITE CALOTTA VALVOLA DI NON RITORNO ANELLO ONDULATO O-RING CUSCINETTO TAPPO DI SFIATO INDOTTO PRESSOSTATO RONDELLA...
- Page 9 E N G INGOMBRI / DIMENSIONS © 2014 S.p.A.
- Page 10 E N G DIAGRAMMI / DIAGRAMS DIAGRAMMA PORTATA FLOW RATES DIAGRAM DIAGRAMMA ASSORBIMENTI AMPERE-DRAW DIAGRAM © 2014 S.p.A.
- Page 11 164 662 12 - UP2/A 12V Autoclave con controllo elettronico 10 l / gear pump 164 662 13 - UP2/A 24V Autoclave con controllo elettronico 10 l / gear pump E’ conforme alla Direttiva 2004/108/CE (ex.89/336/CE) relativa alla compatibilità elettromagnetica.
- Page 12 E N G NOTE / NOTES © 2014 S.p.A.
- Page 13 E N G NOTE / NOTES © 2014 S.p.A.
- Page 14 E N G NOTE / NOTES © 2014 S.p.A.
- Page 15 Per ulteriori informazioni vedere sito internet - www.marco.it Marco S.p.A Via Mameli 10 - 25014 Castenedolo - Brescia - Italy tel. +39 030 2134.1 / Fax +39 030 2134.300 For further information visit the web site - www.marco.it Marco S.p.A Via Mameli 10 - 25014 Castenedolo - Brescia - Italy...
