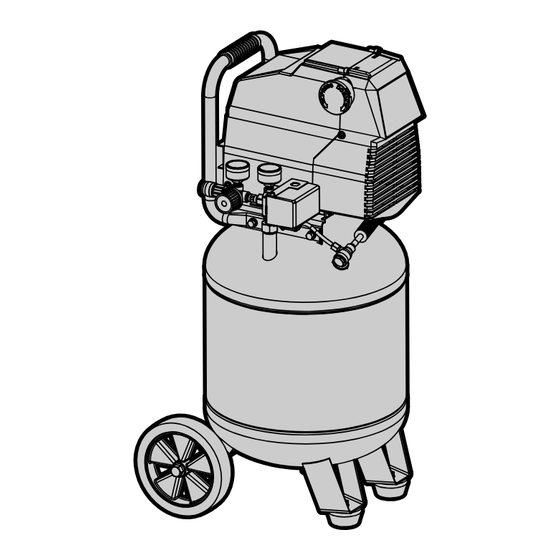

MODEL 2289
10-GALLON
AIR COMPRESSOR
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2289 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wen 2289

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Air Compressor Safety Warnings ..............6 Electrical Information ..................7 BEFORE OPERATING Know Your Air Compressor ................8 Assembly & Adjustment ................... 9 OPERATION & MAINTENANCE Operation ......................9 Maintenance ....................
  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Air Compressor. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.
  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6: Air Compressor Safety Warnings

    AIR COMPRESSOR SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. AIR COMPRESSOR SAFETY 8. Always operate the compressor in a well-ventilated 1. Do not use your air compressor if the pressure switch area away from combustible materials, gasoline, or sol- does not turn the compressor on and off.
  • Page 7: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.
  • Page 8: Before Operating

    KNOW YOUR AIR COMPRESSOR TOOL PURPOSE Plug in nailers, staplers, spray guns, or any other pneumatic tool to your WEN air compressor for a versatile and dependable set-up that answers a variety of woodworking and painting needs. Refer to the following diagrams to become familiarized with all the parts and controls of your air compressor.
  • Page 9: Assembly & Adjustment

    ASSEMBLY & ADJUSTMENTS INSTALLING THE WHEELS 1. Insert the bolt (Fig. 2 - 1) into the wheel (Fig. 2 - 2), through the wheel bracket (Fig. 2 - 3), through the flat washer (Fig. 2 - 4), and install the nut (Fig. 2 - 5). Tighten the nut. INSTALLING THE AIR FILTER 1.
  • Page 10 OPERATION NOTE: the compressor will not turn ON if the tank pressure is Fig. 6 above the cut-in pressure. Once the tank pressure drops below the cut-in pressure, the compressor will automatically start up, and then automatically shut down once the cut-out pressure is reached.
  • Page 11: Maintenance

    40 – 50 PSIG. If it does not automati- cally close, it needs to be replaced. Contact WEN customer service for assistance. 2. Open the tank drain valve underside the compressor to drain the tank daily after each operation. To minimize moisture inside of the unit, tip the compressor during drainage so that the drain valve is aimed directly towards the ground.
  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING! Stop using the generator immediately if any of the following problems occur or risk serious personal injury. If you have any questions, please contact customer service at 1-800-232-1195 (M-F 8-5 CST), or email techsupport@wenproducts.com. Problem Possible Cause Solution Air leaks from the regulator.
  • Page 13: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST...
  • Page 14 EXPLODED VIEW & PARTS LIST Model No. Description Qty. Model No. Description Qty. 2289-001 Pump Assembly 2289-021 Relief Tube 2289-002 Rubber Foot 2289-022 Outlet Tube 2289-003B Shroud Front 2289-023A 10-Gallon Tank 2289-004B Shroud Rear 2289-024 Handle 2289-005 Air Filter Intake Housing...
  • Page 15: Warranty Statement

    (2) years from date of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for professional or commercial use.
  • Page 16 THANKS FOR REMEMBERING V. 2019.11.19...
