Wen 2286 Manual

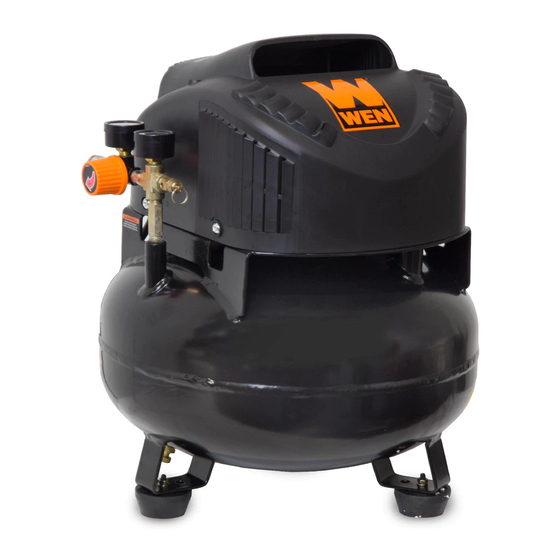

6-gallon air compressor
Hide thumbs

Advertisement

Quick Links

Download this manual
Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
AIR COMPRESSOR
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
6-GALLON
Model # 2286
(M-F 8AM-5PM CST)
bit.ly/wenvideo

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2286 and is the answer not in the manual?

Questions and answers

Related Manuals for Wen 2286

Summary of Contents for Wen 2286

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    Electrical Information Know Your Compressor Operation Maintenance Troubleshooting Parts List & Exploded View Warranty TECHNICAL DATA Model Number: 2286 Motor: 120V, 1.2 HP, 12A, 60 Hz Capacity: 6 Gallon Max PSI 150 PSI Air Outlet: Quick-Coupler, 1/4˝ NPT Air Flow: 2.6 CFM at 90 PSI...

  • Page 3: General Safety Rules

    8. SERVICING requires extreme care and knowledge of the tool. This should only be performed by a qualified service technician. When servicing, use only identical WEN replacement parts. 9. ALWAYS remove the power cord plug from the electrical outlet when making adjustments, changing parts, cleaning, or working on the tool.
  • Page 4 GENERAL SAFETY RULES 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories. 17. CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, jamming, breakage, improper mounting, or any other conditions that may affect the tool’s operation. Any part that is damaged should be properly repaired or replaced before use.

  • Page 5: Electrical Information

    SPECIFIC RULES FOR AIR COMPRESSORS 8. Keep your air compressor at least 20 feet away from explosive vapors. 9. Do not adjust the regulator higher than the marked maximum pressure of any attached pneumatic tools or equip- ment. 10. Do not direct the air stream at people or animals. 11.

  • Page 6: Know Your Compressor

    ELECTRICAL INFORMATION GUIDELINES FOR EXTENSION CORDS Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

  • Page 7: Operation

    OPERATION 1. Connect an air hose (not included) to the air line inlet. Make sure the air hose is rated high enough to meet the max PSI of the compressor. 2. Connect the electrical plug to a power supply. NOTE: the compressor must be at least one foot from any wall or obstruction in a well-ventilated area in order to maximize proper air flow.

  • Page 8: Maintenance

    MAINTENANCE CLEAN AND INSPECT DAILY CAUTION - Disconnect tool from power supply before cleaning and inspection. Correct all problems before operation. Oil-free operation requires no external lubrication. Open the air release valve after operation to drain water and contaminations out. Wipe the tool clean. Blow the tool clean using high compressed air, then use non-flammable cleaning solutions to wipe exterior of the tool as necessary, particularly before storage.

  • Page 9: Troubleshooting

    If there are still problems after consulting this list, or if you have any questions about the solu- tions provided above, feel free to contact the WEN help line at 800-232-1195 (M to F, 8 to 5 CST).
  • Page 10 EXPLODED VIEW AND PARTS LIST Part Number Description 2286-001 Motor/Pump Assembly 2286-002 Rubber Foot 2286-003 Shroud Top 2286-004 Shroud Hand Guard 2286-005 Washer 8mm (id) 36mm (od) 3.4mm (thick) 2286-006 Filter Housing 2286-007 Filter Intake 2286-008 Power Switch 2286-009 Power Cord...
  • Page 11 EXPLODED VIEW AND PARTS LIST...

  • Page 12: Warranty

    LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
