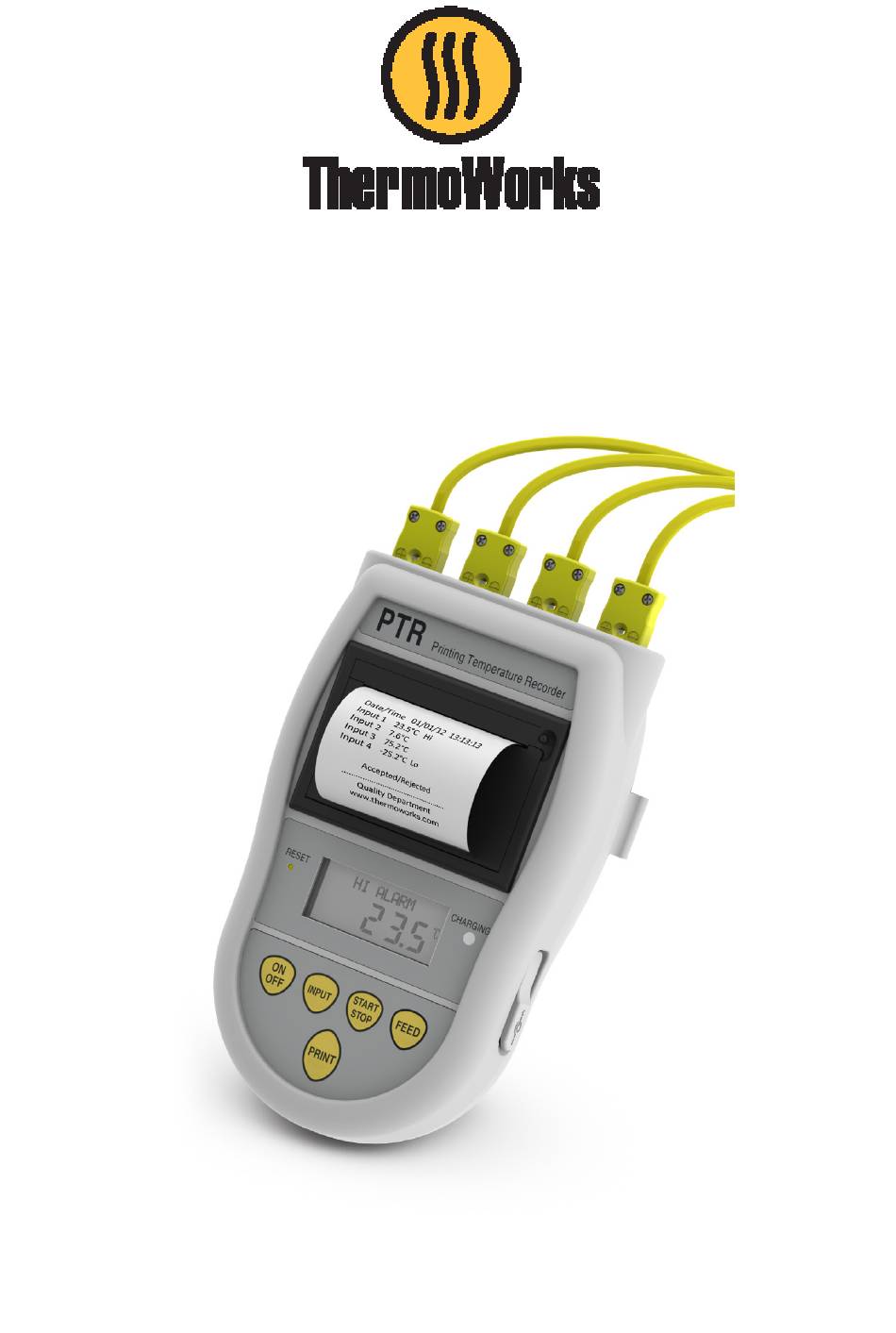

- Page 1 Printing Temperature Recorder Operating Instructions (226-275)
-
Page 3: Table Of Contents
CONTENTS Introduction Probes Functions Display PTR overview PTR operation Switching the PTR on or off Changing input Displaying limits Feeding paper Modes of operation 'On demand' mode 'Summary' mode 'Log mode' Batteries Recharging the PTR Connecting device to the PC... -
Page 4: Introduction
The PTR measures temperature across the range of -148 to 2501°F (-100 to 1372°C), with a resolution 0.1°C above 1999.9°F/C. When the PTR is fully charged, up to 500 prints can be achieved. Up to 8000 readings can be stored in memory. -
Page 5: Ptr Overview
PTR OVERVIEW probe sockets printer cover cover handle 'reset' button charge indicator USB socket power socket control panel... -
Page 6: Ptr Operation
PTR OPERATION SWITCHING THE PTR ON OR OFF The 'On/Off' button switches the PTR on or off. 'Switch off' will be displayed for two seconds before shut down is complete. The unit cannot be switched off using the 'On/Off' button during a log. The log must be stopped first. -
Page 7: Log Mode
STOP button once. To stop logging, press the START STOP button, 'Stop Log?' will be displayed. Press the START STOP button again to confirm the log is to be stopped. The log MUST be stopped before the instrument can be switched off. 'LOG' MODE The print button is disabled and the printing is automatically timed at set intervals selected by the user. -
Page 8: Batteries
Damage may occur if other power supplies are used. CONNECTING DEVICE TO THE PC To connect the PTR to a PC, remove the rubber cap and plug the USB cable into the socket on the left side of the instrument. Use the Printing Thermometer PC software to customize PTR settings and ticket layout and to download stored reading. -
Page 9: Paper Loading Procedure
3. Lift the lid until completely open (Fig 3). 4. Remove any existing paper or the plastic tube from the previous roll. The easiest way to do that is to turn the PTR upside down, so the printer contents fall out (Fig 4). - Page 10 Fig 1 Fig 2 Fig 3 Fig 4 Fig 6 Fig 5 Fig 7 Fig 8...
-
Page 11: Specifications
SPECIFICATIONS Range -148 to 2051°F (-100 to 1372°C) Operating Temp Range 41 to 122°F (5 to 50°C) 10 to 80% RH Resolution 0.1°F/°C (1°F above 1999.9°F) Accuracy ±0.4°C / ±0.1% of reading Battery Ni-MH 3.6V Battery Life Approximately 500 prints from a full charge Battery Charging Temp Range 41 to 104°F (5 to 40°C) Battery Charging Cycles... - Page 12 1762 W. 20 S. #100, Lindon, UT 84042 Ph: 801-756-7705 Fax: 801-756-8948 www.thermoworks.com 15.10.12 P-12-016-02-a...
