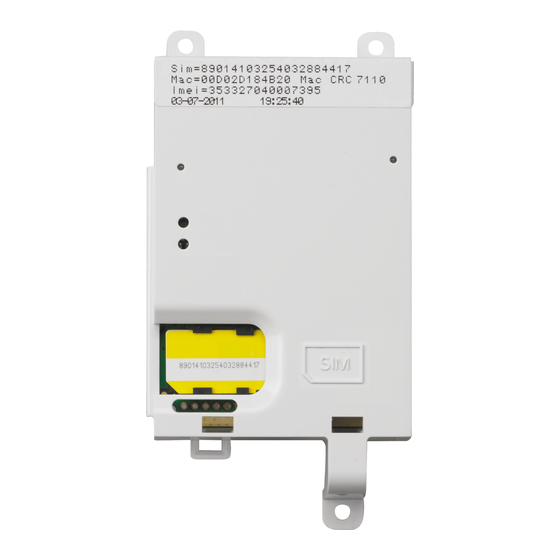

Honeywell GSMVLP5-4G Installation And Setup Manual

Gsm and ilp5 ethernet communications modules
Hide thumbs


Advertisement

Quick Links

Installing Communication Modules
Installing the GSMVLP5-4G/GSMVLP5CN4G in the LYNX Touch Series Control
Ensure that SIM card and the connector board are securely installed in the GSMVLP5-4G/GSMVLP5CN4G
before installing the module in the LYNX Touch.
1. Install the provided FCC/IC label (P/N 800-10341) on the control's case back (refer to Figure 1).
2. Release the LYNX Touch front case from the back case by depressing the two locking tabs at the top of the
unit with the blade of a medium size screwdriver (Refer to Figure 2).
3. Install the GSMVLP5-4G/GSMVLP5CN-4G into the LYNX Touch control front case. Ensure that the
connector board is properly seated into the receptacle on the control (Refer to Figure 2).
4. Secure the GSMVLP5-4G/GSMVLP5CN-4G with the three provided screws (Refer to Figure 2).
5. Enable the GSMVLP5-4G/GSMVLP5CN-4G device, configure alarm reporting and module supervision and
register the device. Refer to the "Program the Radio" and "Diagnostics" sections in the LYNX Touch Series
Installation and Setup Guide (P/N 800-10614 or higher).
For Documentation and Online Support: http://www.security.honeywell.com/hsc/resources/MyWebTech
Installation and Setup Guide
CONTAINS MODULE: FCC ID: QIPPH8
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS 210 of IC. Operation is subject to the
following two conditions: (1) This Device may not cause harmful interference. (2) This device must
accept any interference received, including interference that may cause undesired operation.
FCC ID: CFS8DLLYNXTOUCH2
IC: 573F-LYNXTOUCH2
IC MODEL: LYNXTOUCH2

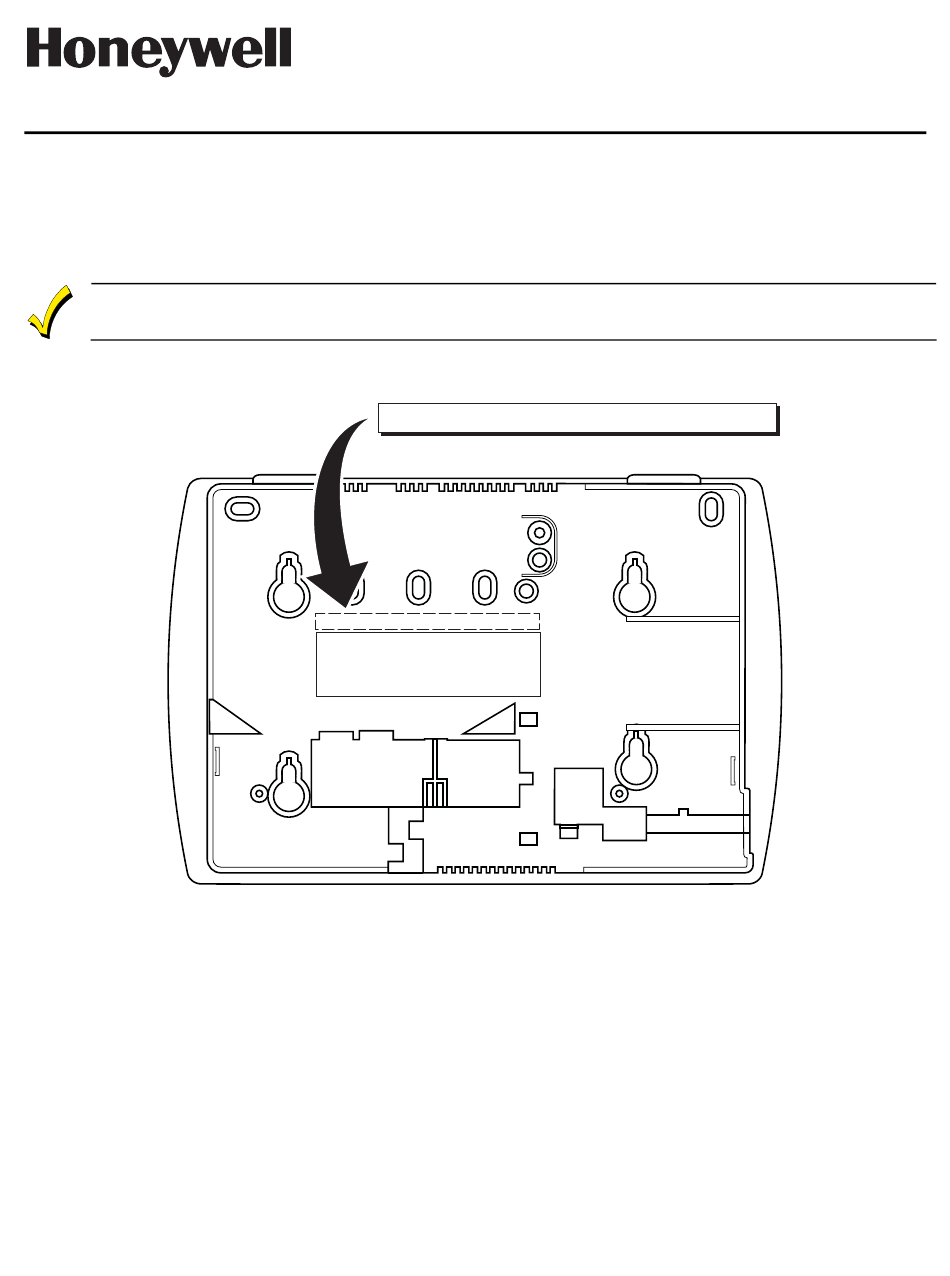

Figure 1. FCC/IC Label Location
GSMVLP5-4G/GSMVLP5CN4G
GSM and ILP5 Ethernet
Communications Modules
IC: 7830A-PH8
800-10341 Label
800-10259 11/11
Rev A
800-10344 12/11 Rev. A
IC MODEL: PH8
5000-100-186-V1

Advertisement

Table of Contents
loading

  Related Manuals for Honeywell GSMVLP5-4G

  Summary of Contents for Honeywell GSMVLP5-4G

  • Page 1 Installing Communication Modules Installing the GSMVLP5-4G/GSMVLP5CN4G in the LYNX Touch Series Control Ensure that SIM card and the connector board are securely installed in the GSMVLP5-4G/GSMVLP5CN4G before installing the module in the LYNX Touch. 1. Install the provided FCC/IC label (P/N 800-10341) on the control’s case back (refer to Figure 1).
  • Page 2 LYNX TOUCH LOCKING TABS 5000-100-151-V2 Figure 2. Installing the GSMVLP5-4G/GSMVLP5CN4G in the LYNX Touch Installing the ILP5 in the LYNX Touch Series Control Ensure that the connector board and cable are securely installed in the ILP5 before installing the module in the LYNX Touch.
  • Page 3 CONNECTOR BOARD SCREW ILP5 RECEPTACLE LYNX TOUCH LOCKING TABS 5000-100-154-V2 Figure 3. Installing the ILP5 in the LYNX Touch Electrical Specifications GSMVLP5-4G/GSMVLP5CN-4G Voltage Input 5V (provided by the control panel) Current Idle 15 mA, standby Average 300mA, average transmit Peak 1.6A peak transmit, 25% duty cycle...
  • Page 4 The communications module must be installed to provide a separation distance of at least 20 cm from all persons. WARRANTY INFORMATION For the latest warranty information, please visit: www.honeywell.com/security/hsc/resources/wa 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 Copyright © 2011 Honeywell International Inc. www.honeywell.com/security Ê800-10344zŠ 800-10344 12/11 Rev. A...
