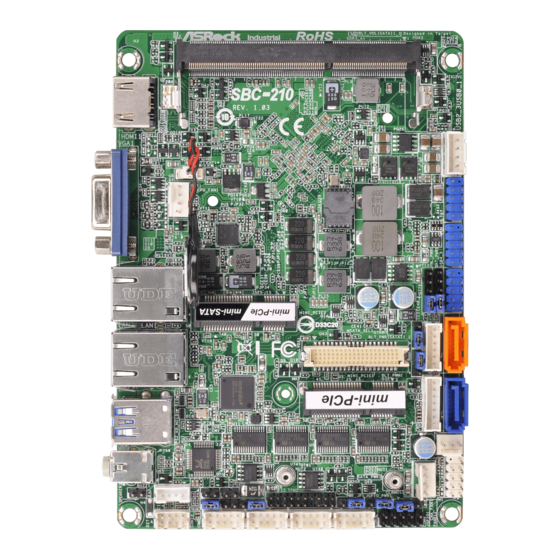

ASROCK SBC-210 Settings Manual

SBC-210
1 : Panel Power Selection (LCD_VCC)
(PNL_PWR1)
1-2 : +3V
2-3 : +5V
3-4 : +5V
4-5 : +12V
2 : ATX Power Connector
(Input 9V-36V)
1-4 : GND
2-3 : DC Input
3 : Backlight Power Selection
(LCD_BLT_VCC) (BKT_PWR1)
1-2 : +5V
2-3 : +12V
3-4 : +12V
4-5 : DC_IN Power
4 : USB2.0 Headers (USB0_1, USB2_3,
USB4_5)
DUMMY
GND GND
+B +A
-B -A
USB_PWR USB_PWR
1
5 : mSATA Selection
1-2 : SATAII_2 + mini-PCIe
2-3 : mSATA, SATAII_2 no function
6 : Inverter Power Control Wafer
(BLT_PWR1)
PIN Signal Name
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC

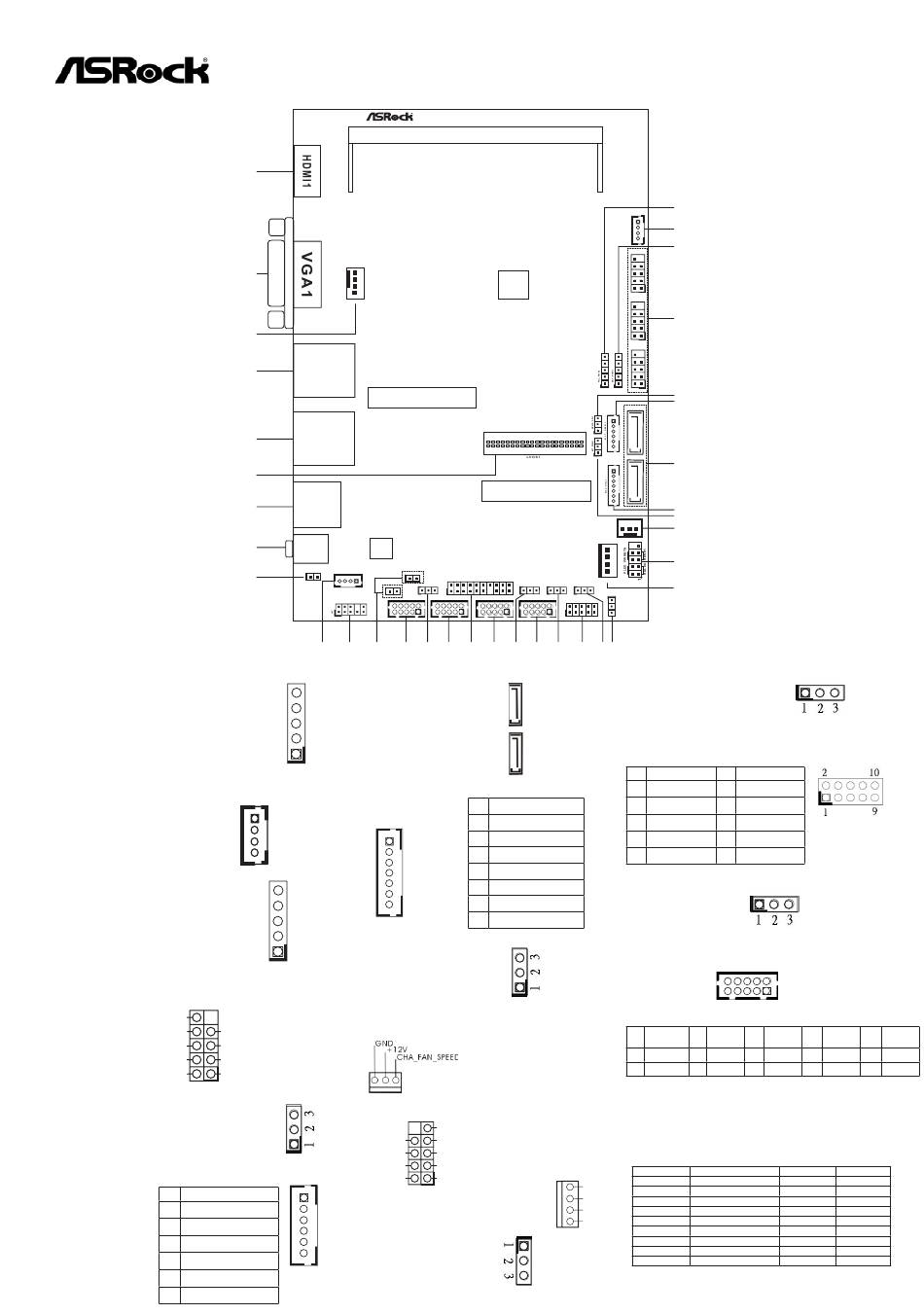

Jumpers and headers setting guide
Industrial
35
34
CPU_FAN1
33
LAN1
32
mini-PCIe / mini-SATA
LAN2
31
30
USB 3.0
29
T: USB1
B: USB0
28
AUDIO
Line Out
CODEC
SPEAKER1
27
1
1
1
BUZZ1
1
CI2
HD_AUDIO1
26 25 23
24
7 : SATA2 Connectors
(SATAII_1, SATAII_2)
1
8 : Backlight & Amp Volume Control
(BLT_VOL1)
1
1
9 : Backlight Control Level
1
(BLT_PWM1)
1-2 : +3V
2-3 : +5V
10 : 3-Pin Chassis FAN Connector (+12V)
11 : System Panel Header
GND
PWRBTN#
PLED-
1
PLED+
12 : SATA Power Output Connector
13 : GPIO Default Setting
1-2 : Pull-High
2-3 : Pull-Low
DDR3 (Support DDR3L Only)
SBC-210
BIOS
Chip
1
mini-PCIe
CI1
TPM1
SET_CM1
PWR_JP1 JGPIO_PWR1 CLRMOS1
1 1 1 1
1
COM1 COM2 COM3 COM4
JGPIO1
1
21 17 16 15
22 20 19 18
SATAII_2
SATAII_1
PIN Signal Name
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 GPIO_BLT_UP
5 GPIO_BLT_DW
6 GND
7 GND
GND
RESET#
GND
HDLED-
HDLED+
1
1
1
1
ATX12V1
2
3
USB0_1
1
USB2_3
4
1
USB4_5
1 1
1
5
6
SATAII_2
1
1
SATAII_1
1
7
1
8
9
10
CHA_FAN1
11
SATA_PWR1
PANEL1
12
1
JGPIO_SET1
14 13
14 : Clear CMOS Header
1-2 : Normal
2-3 : Clear CMOS
15 : Digital Input / Output Pin Header
PIN Signal Name PIN Signal Name
1 SIO_GP24 2 SIO_GP20
3 SIO_GP25 4 SIO_GP21
5 SIO_GP26 6 SIO_GP22
7 SIO_GP27 8 SIO_GP23
9 JGPIO_PWR 10 GND
16 : Digital Input / Output Power select
1-2 : +12V
2-3 : +5V
COM1, 2, 3, 4 Headers
17 : COM4
19 : COM3
21 : COM2
23 : COM1
Signal Signal
PIN PIN PIN
Name Name
10 DUMMY 8 CCTS# 6
9 DUMMY 7 RRTS# 5
* This motherboard supports RS232/422/485 on COM1 port. Please refer to below
table for the pin definition. In addition, COM1 port (RS232/422/485) can be adjusted
in BIOS setup utility > Advanced Screen > Super IO Configuration. You may refer to
page 29 of our user manual for details.
COM1 Port Pin Definition
PIN RS232
1 DCD
+12V
2 RXD
GND
3 TXD
GND
4 DTR
5 GND
+5V
6 DSR
7 RTS
8 CTS
9 NA/+5V/+12V
2
1
Signal Signal Signal
PIN PIN
Name Name Name
DDSR# 4 DDTR# 2 RRXD
GND 3 TTXD 1 DDCD#
RS422 RS485
TX- RTX-
RX+ N/A
TX+ RTX+
RX- N/A
GND GND
N/A N/A
N/A N/A
N/A N/A
N/A N/A
