TOGO
| pushing aid

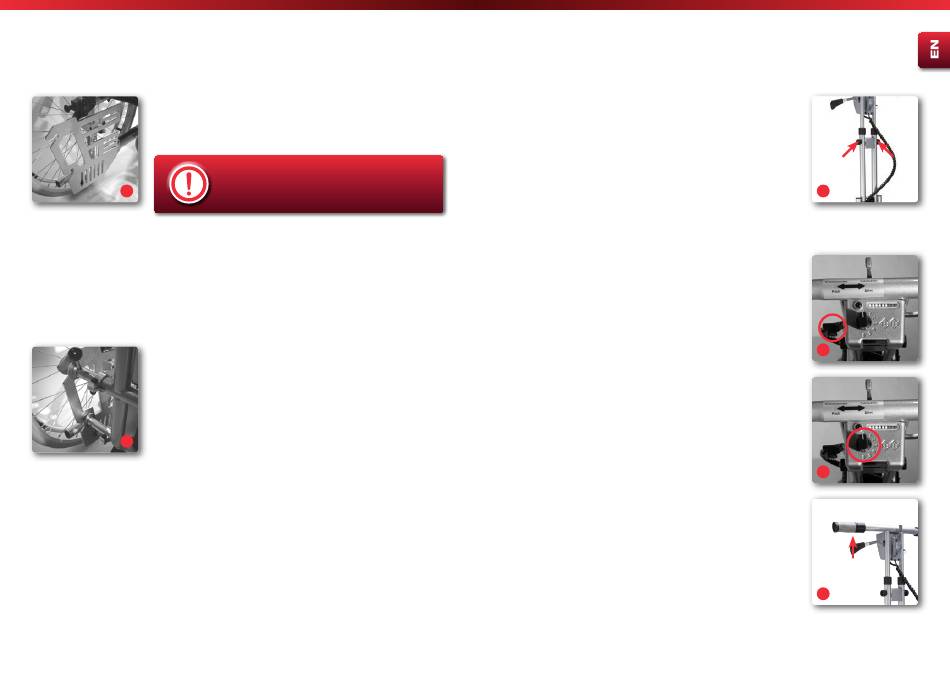

4. Installation

4.1. Attaching the adapter plate -
optional
02
The brackets are attached on the side of the standard wheelchair
frame. Depending on the type of wheelchair, the type of attachment
can vary. As a result, the bracket shown here may differ from yours.
The holes already available on the wheelchair frame are used to
attach the bracket. If these are not available, or insufficient, clamping
adapters are used.

4.2. Setting the width

As the pushing aid is not permanently fixed to the standard wheelchair,
it can be used by several wheelchair users. However, the width of the
attachment may need to be changed.
• To change the width, loosen the clamping screw of the adapter on
the drive unit.
03
• Position the pushing aid directly behind the wheelchair with the
brackets attached.
• Pull/push the adapter out and in evenly on the right and left until
the upper and lower adapters fit in the bracket.
• Now firmly tighten the clamping screw again.
28
The bracket may only be attached by a qualified
medical supplies retailer.

4.3. Push handle height

The height of the push handle can be adapted to the requirements of
the assisting person.
• Unscrew the plastic nut and pull the bolt completely out.
• Now you can change the height of the push handle.
• Push the bolt into the nearest hole and firmly tighten the plastic
nut.

5. Using the pushing aid

5.1. Functional description of the
control unit
Having adapted the pushing aid to your personal needs, make yourself
familiar with the functions of the control unit. All control elements can
be operated by an assisting person standing behind the pushing aid.
Key switch
The pushing aid is switched on and off by operating the key. In addition,
the lockable control unit offers reliable protection against misuse.
Speed levels
The speed can be preset at 6 levels on the rotary switch. For safety
reasons, there is only one level for reversing, at approx. 1.5 km/h.
Control lever
The electrical drive of the pushing aid is activated by operating the
control lever.
Bischoff & Bischoff GmbH | 01.06.2019
TOGO
pushing aid |
04
05
06
07
29
