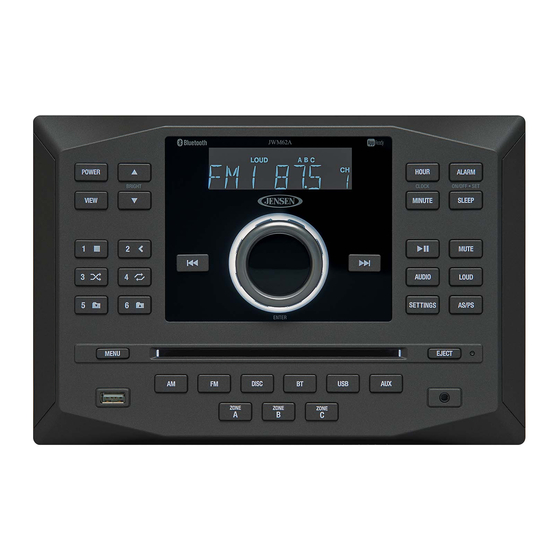

Jensen JWM62A Quick Reference Manual

POWER: Push to
turn ON or OFF.
BACK: Press to exit any menu.
VOLUME: Rotate clockwise
to increase volume or
counter-clockwise to
decrease volume.
AM: Press to change the
source to AM radio mode.
FM: Press to change the
source to FM radio mode.
DISC: Press to change the
source to Disc mode.
BT: Press to change the
source to BLUETOOTH
mode.
USB: Press to change the
source to USB mode.
AUX: Press to change the
source to AUX mode.
App download and
operation:
jControl app controls
all of the primary
functions of the
JWM62A directly from
your phone or tablet. It can be found by
searching for "JENSEN jControl".
After downloading and installing app, pair
your device to the JWM62A as instructed
in "Bluetooth Operation" section in this
guide. Once your device is paired, open
the app and use as instructed. (Device
must be paired to JWM62A before
opening and using app).
Rotate clockwise to
VOLUME:
increase volume or counter-
clockwise to decrease volume.
STATION STORE PRESETS:
Press & Hold to store current
station. Press once to recall
stored channel.
NOTE: Up to 18 FM & 12 AM
channels can be stored.
VOLUME: Rotate clockwise to
increase volume or counter-
clockwise to decrease volume.
1: Press once to SUSPEND
disc play and twice to RESET
disc back to first track.
2: Press to EXIT from setting
menu.
3: Press SHUFFLE songs.
Press again to SEQUENTIAL
play.
4: Press to REPEAT CD
track(s) once, continuously, all
track or to release function.
Press to REPEAT a DVD
chapter, title, ALL, or to release
function.
5: Press to go to next folder.
6: Press to go to previous
folder.
ZONE OUTPUT: Press any
zone button (A, B or C) to
control corresponding
speaker output from the stereo.
SPK A, SPK B, SPK C will
appear on the display.
Tablet Interface
Mode Menu
Audio Menu
Power
App Info
TUNE/SEEK/TRACK: Press
higher. Press button to tune frequency lower. Press
and hold to scan to next strongest station.
TUNE/SEEK/TRACK: Press
button to go back to PREVIOUS TRACK or CHAPTER/TITLE. In CD mode,
Press
press & hold to FAST FORWARD or REVERSE current play. In DVD mode, press & hold
to enter FAST FORWARD/REVERSE. Press & hold additional times to step through x2, x4,
x8, x20. Press PLAY ( ) to resume.
JWM62A
QUICK REFERENCE GUIDE
AUDIO:
ADJUSTMENT options: BASS,
TREBLE, BALANCE (left to
right), & FADE (front to back).
LOUDNESS:
LOUDNESS ON or OFF.
SETTINGS:
MENU options: BEEP,
ADJUST LCD BRIGHTNESS,
TUNING REGION, ADJUST
RCA OUT, BLUETOOTH
(ON/OFF) , PRESET
VOLUME, RESET VOLUME
KNOB will adjust each MENU
option except for 'RESET'.
RESET:
or thin metal object to press
the reset buttons.
AUX IN:
from your portable media device.
Back Play/Pause/Mute
MUTE:
Press again to resume volume.
AS/PS:
currently stored presets. Press &
Hold to STORE strongest broad-
cast stations in your area.
button to tune frequency
PLAY/PAUSE:
PAUSE current audio or video.
EJECT:
CD or DVD
button to advance to NEXT TRACK or CHAPTER/TITLE.
Press to bring up AUDIO
Push to turn
Press to bring up
Use a ball point pen
Insert 3.5mm cable
Forward Volume Control
Press to MUTE volume.
Press to SCAN through
Press to PLAY or
Press to EJECT
