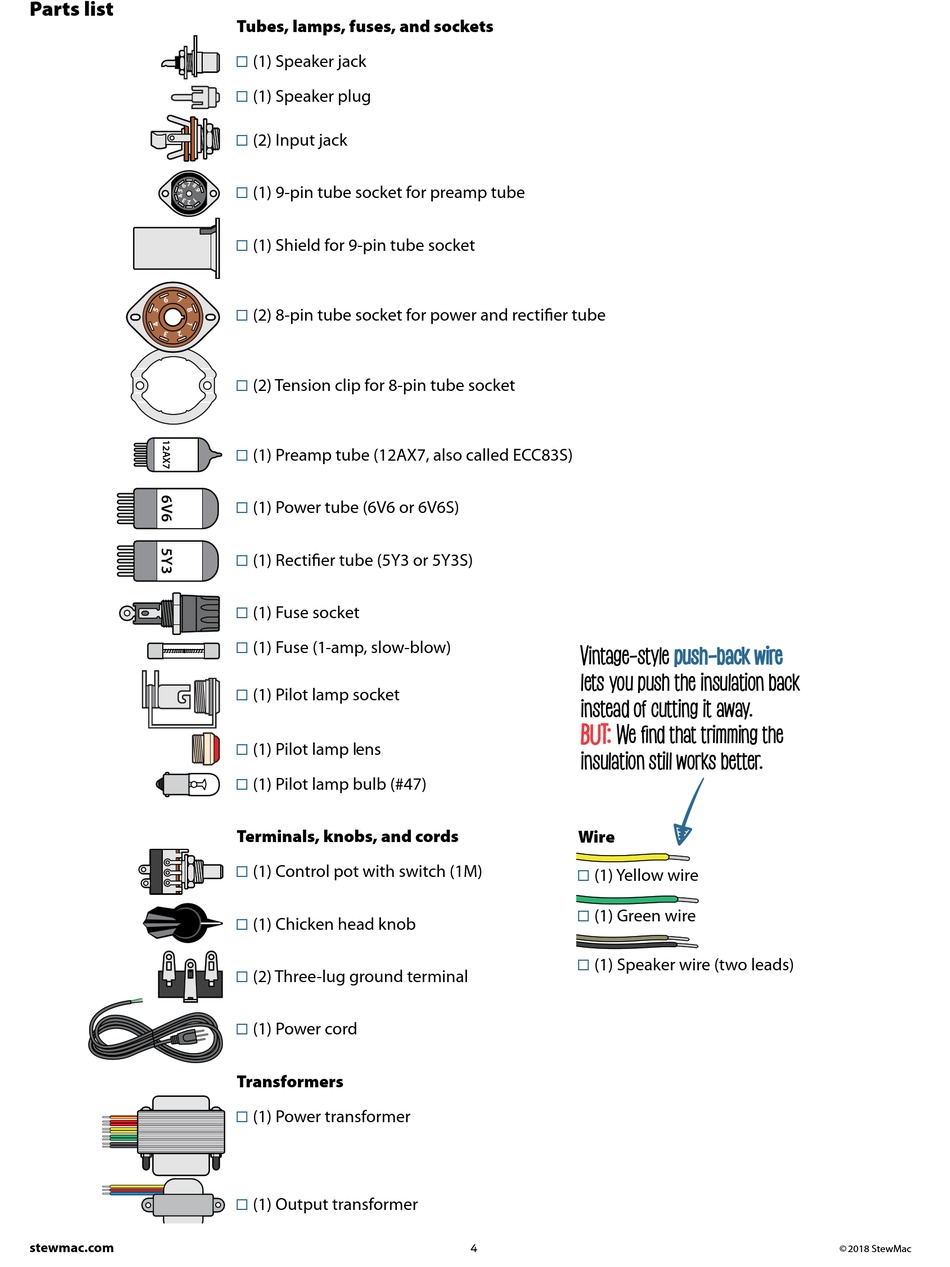

Parts list
7
stewmac.com
Tubes, lamps, fuses, and sockets
(1) Speaker jack
r
(1) Speaker plug
r
(2) Input jack
r
(1) 9-pin tube socket for preamp tube
r
(1) Shield for 9-pin tube socket
r
(2) 8-pin tube socket for power and rectifier tube
r
(2) Tension clip for 8-pin tube socket
r
(1) Preamp tube (12AX7, also called ECC83S)
r
(1) Power tube (6V6 or 6V6S)
r
(1) Rectifier tube (5Y3 or 5Y3S)
r
(1) Fuse socket
r
(1) Fuse (1-amp, slow-blow)
r
(1) Pilot lamp socket
r
(1) Pilot lamp lens
r
(1) Pilot lamp bulb (#47)
r
Terminals, knobs, and cords
(1) Control pot with switch (1M)
r
(1) Chicken head knob
r
(2) Three-lug ground terminal
r
(1) Power cord
r
Transformers
(1) Power transformer
r
(1) Output transformer
r
Vintage-style
lets you push the insulation back
instead of cutting it away.
BUT:
We find that trimming the
insulation still works better.
Wire
(1) Yellow wire
r
(1) Green wire
r
(1) Speaker wire (two leads)
r
4
push-back wire
