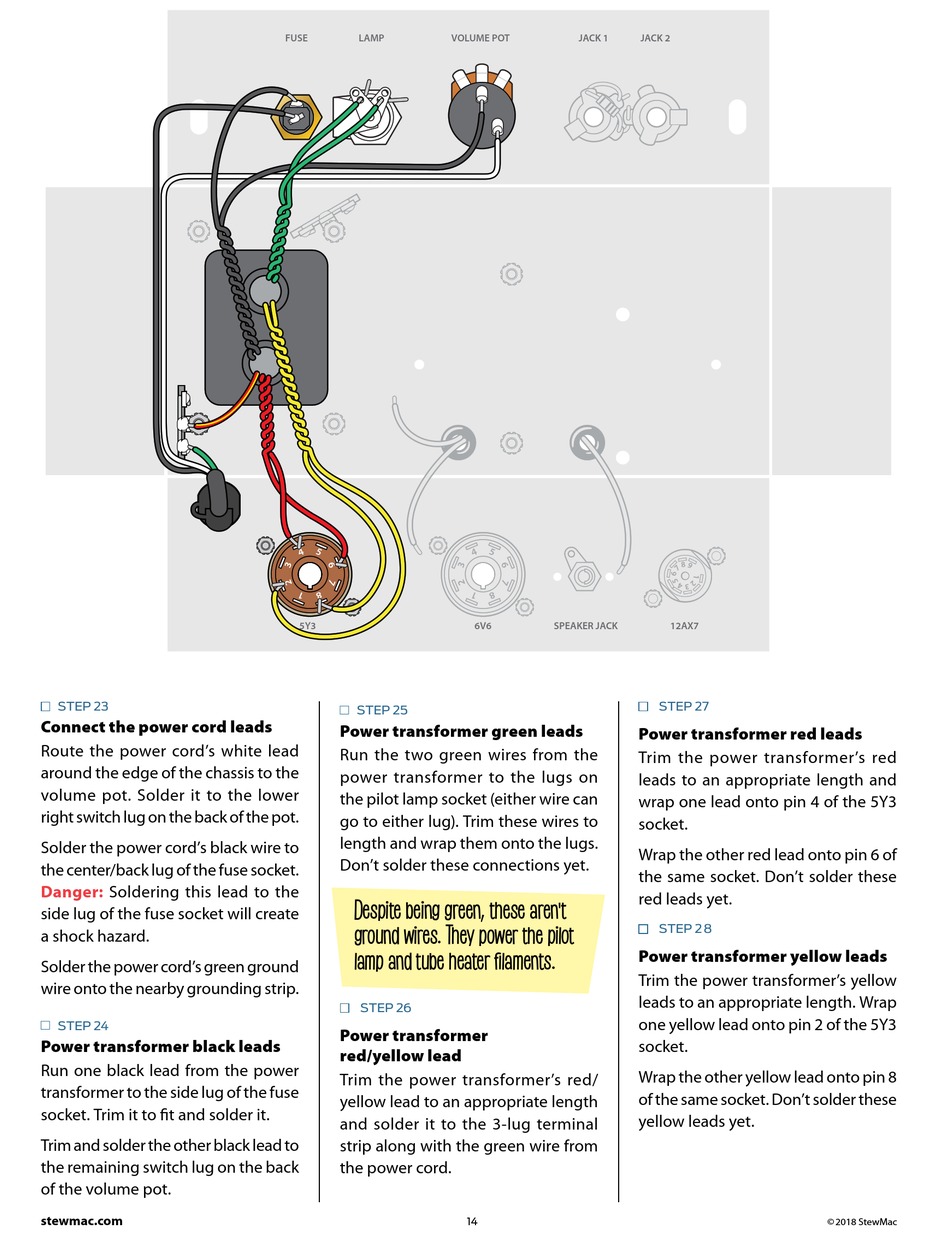

StewMac ’57 MINI TWEED Assembly Instructions Manual page 16

STEP 23
Connect the power cord leads
Route the power cord's white lead
around the edge of the chassis to the
volume pot . Solder it to the lower
right switch lug on the back of the pot .
Solder the power cord's black wire to
the center/back lug of the fuse socket .
Danger: Soldering this lead to the
side lug of the fuse socket will create
a shock hazard .
Solder the power cord's green ground
wire onto the nearby grounding strip .
STEP 24
u
Power transformer black leads
Run one black lead from the power
transformer to the side lug of the fuse
socket . Trim it to fit and solder it .
Trim and solder the other black lead to
the remaining switch lug on the back
of the volume pot .
stewmac.com
FUSE LAMP VOLUME POT
5Y3
STEP 25
u
Power transformer green leads
Run the two green wires from the
power transformer to the lugs on
the pilot lamp socket (either wire can
go to either lug) . Trim these wires to
length and wrap them onto the lugs .
Don't solder these connections yet .
Despite being green, these aren't
ground wires. They power the pilot
lamp and tube heater filaments.
STEP 26
Power transformer
red/yellow lead
Trim the power transformer's red/
yellow lead to an appropriate length
and solder it to the 3-lug terminal
strip along with the green wire from
the power cord .
JACK 1 JACK 2
6V6 SPEAKER JACK
Power transformer red leads
Trim the power transformer's red
leads to an appropriate length and
wrap one lead onto pin 4 of the 5Y3
socket .
Wrap the other red lead onto pin 6 of
the same socket . Don't solder these
red leads yet .
Power transformer yellow leads
Trim the power transformer's yellow
leads to an appropriate length . Wrap
one yellow lead onto pin 2 of the 5Y3
socket .
Wrap the other yellow lead onto pin 8
of the same socket . Don't solder these
yellow leads yet .
14
12AX7
STEP 27
STEP 2 8
© 2018 StewMac
