- Page 1 10kW VPOC™ Power System U S E R G U I D E Page 1 of 23 VP-3103-111U-UG-03 September 2016...
-
Page 2: Table Of Contents
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System © 2015 Copyright Lite-On Technology Corporation ALL RIGHTS RESERVED. Lite-On is a trademark of Lite-On Technology Corporation, registered in the United States and other countries. This document may contain inaccuracies and typographical errors. Lite-On cannot be held responsible for any errors or omissions contained in this document. -
Page 3: Introduction

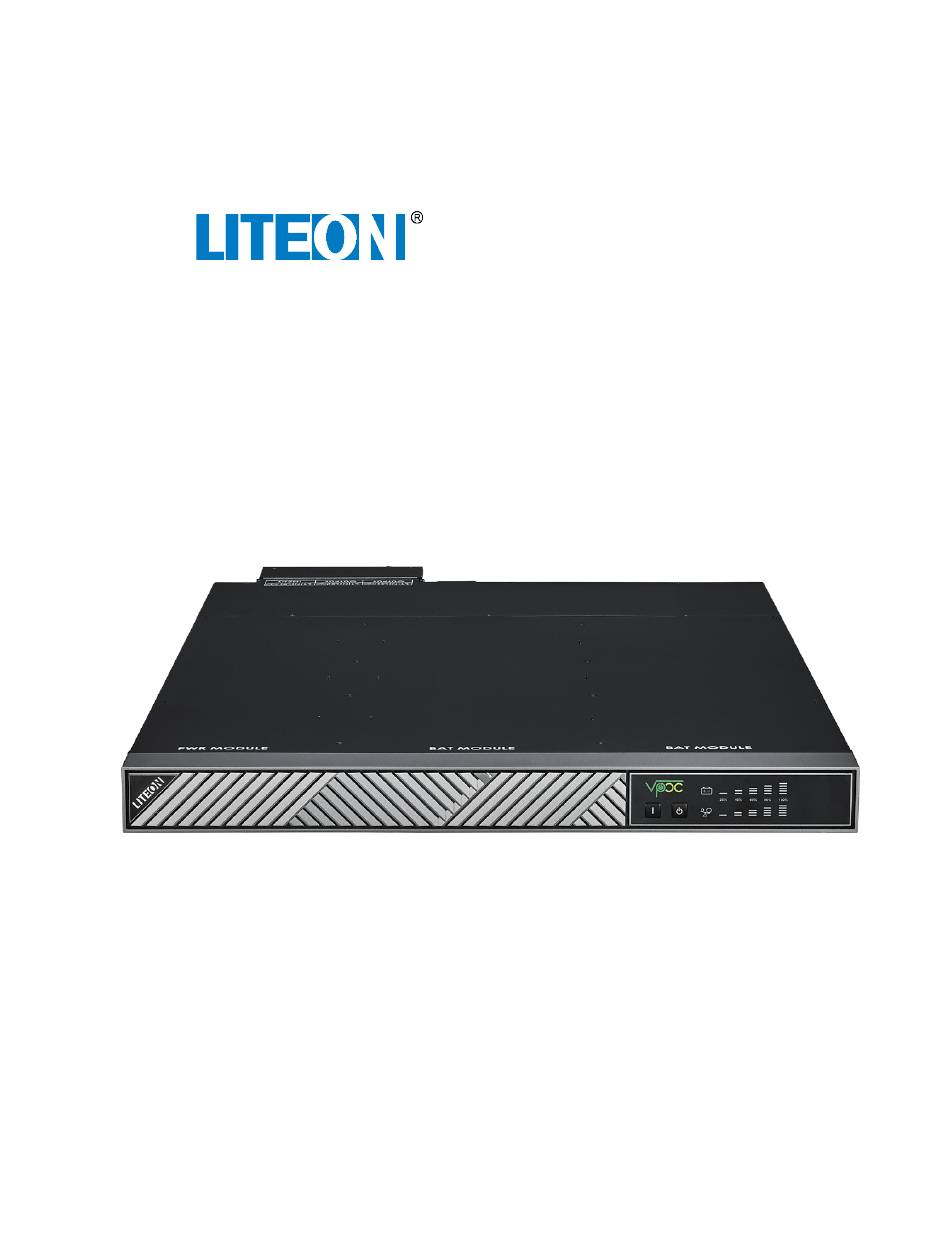

VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System Introduction Virtual Power On Call (VPOC™) is a highly-efficient backup power solution that uses a fraction of the space of a conventional Uninterruptable Power System (UPS). The 10kW VPOC™ module, along with two Lithium Ion (Li-ion) battery modules, slides into the 1U VPOC™... -
Page 4: Required Tools For Installation And Maintenance
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System Turn off the VPOC™ system before cleaning it. Use a soft cloth to clean it, never use WARNING liquid, or aerosol cleaners. WARNING Do not install the VPOC™ system near liquids or in a damp environment. Caution Do not expose the VPOC™... -
Page 5: Equipment Inspection
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System 2. Place the box upright and cut through the tape on the top of the box. 3. Remove the item(s) from the box along with any shipping foam if necessary. 4. -
Page 6: Vpoc™ Power Shelf Installation
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System VPOC™ Power Shelf Installation After the Rack Mounting Brackets have been installed on the VPOC™ Power Shelf and the Shelf Support Brackets have been installed into the rack, the VPOC™ Power Shelf can be installed into the rack. To prevent risk of electrical shock to personnel, ensure that power is not activated inside WARNING the rack while installing equipment. - Page 7 VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System 5. On the rear side of the VPOC™ Power Shelf, twist out the AC input knockout plugs (see ❶ below) and 1 or 2 output knockout plugs (see ❷...
- Page 8 VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System ❶ Protective wiring cover screws ❷ Protective wiring cover ❸ Input wiring port ❹ Output wiring ports ❺ AC Power input switch ❻ Remote Emergency Power Off connector To prevent risk of electrical shock to personnel, ensure that power is not activated when WARNING wiring the VPOC™...
-
Page 9: Remote Emergency Power Off Configuration
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System 11. Torque the wiring set screws to 1.5 N-m (1.2 ft-lbs). 12. Replace the protective wiring cover and secure with previously-removed cover screws. 13. Tighten the cable glands to secure input and out wiring. 14. -
Page 10: Nc (Normally Closed) Configuration - Repo Triggered By Opening A Switch
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System NC (normally closed) Configuration – REPO triggered by opening a switch The left graphic below shows an “energized” VPOC™ in the normally closed (NC) configuration. Pins 1 and 2 are closed, and pins 3 and 4 are open. - Page 11 VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System To install the VPOC™ Power Module: 1. Remove the bezel from the front of the VPOC™ Power Shelf by pressing in the tabs on each side of the bezel and pulling out the bezel (see ❶...
- Page 12 VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System 3. Pull out the locking handle of the VPOC™ Power Module (see ❶ below) and insert the module into the left-most slot labeled PWR MODULE as shown below. Put your thumb under the locking handle when pushing it in;...
- Page 13 VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System 6. Connect the bezel ground strap (see ❶ below) to the chassis as shown below. Page 13 of 23 VP-3103-111U-UG-03 September 2016...
- Page 14 VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System 7. Push the connector vertically into the channel (see ❶ below). Page 14 of 23 VP-3103-111U-UG-03 September 2016...
-
Page 15: Pdu Installation
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System 8. Secure cable to chassis with cable locking bracket and two screws that were removed in a previous step (see ❶ below). 9. Push the bezel back onto the front of the VPOC™ Power Shelf until the tabs lock into place (see ❶... -
Page 16: Vpoc™ Lithium Ion Battery Module Installation
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System To install a PDU to a rack: 1. Using the supplied M3 screws, install rack mounting brackets on the PDU in accordance to your mounting requirements so the brackets align with the holes on the rack. The rack mounting brackets can be mounted so the tabs are flush to the front of the PDU or flush to the rear of the PDU. -
Page 17: Vrla Battery Installation
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System VRLA Battery Installation After the VRLA Battery Shelf Support Brackets are installed into the rack, it can be installed into the rack. To prevent risk of electrical shock to personnel, ensure that power is not activated inside WARNING the rack while installing equipment. -
Page 18: Vpoc™ Power System Startup
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System ❶ VPOC™ Power Shelf VRLA battery connector ❷ VRLA Battery Shelf battery connector ❸ VRLA Battery Shelf battery connector Note: multiple VRLA Battery Shelves can be connected to the VPOC™ Power Shelf to extend runtime. To connect another VRLA Battery Shelf, install it close to an existing VRLA Battery Shelf and install the supplied electrical cable between the batteries (see ❷... -
Page 19: Vpoc™ Power Shelf Front Panel Controls And Lights
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System VPOC™ Power Shelf Front Panel Controls and Lights Refer to the graphic and table below for an explanation of the buttons and lights located on the VPOC™ Power Shelf front panel. -
Page 20: Vpoc™ Rear Panel
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System VPOC™ Rear Panel Communication to a site monitor for the operating status CAN Port of the VPOC power module and battery DA-15 connector used to provide operating conditions communicated via simple open/closed switches. -
Page 21: Dry Contact Configuration
VP-3103-111U U S E R G U I D E 10kW VPOC™ Power System Dry Contact Configuration The graphic and table below describe the DA-15 dry contact connector located on the rear of the VPOC™ Power Shelf (see ❷ above). DA-15 Position Name Description... -
Page 22: Related Documentation
For instructions on initial startup for the 10kW VPOC™ Power System, refer to the Lite-On VPOC™ Power System Startup Guide. For more information related to the Lite-On Power Systems, visit the Lite-On Power Systems Solutions web site at: http://www.liteon-pss.com. Page 22 of 23 VP-3103-111U-UG-03... - Page 23 Lite-On Power System Solutions USA Lite-On Power System Solutions Taiwan 3001 Summit Ave, Suite 400, Plano, TX 75074 No. 90, Chien 1 Rd., Chung Ho Dist, New Taipei City 23585 +1 (469) 331-9838, email: pss.sales@liteon.com +886 -2-2226181 ext 5026, email: pss.sales@liteon.com www.liteon-pss.com www.liteon-pss.com...
