LiteOn PF-2123-1LDM User Manual

Pf-2123-1ld series 3-phase, dual-input, 12.5kw power supply system
Hide thumbs Also See for PF-2123-1LDM:

Advertisement

Quick Links

3-Phase, Dual-Input, 12.5kW
Power Supply System
U S E R G U I D E
Page 1 of 19
PF-2123-1LDx-UG-02
April 2017

Advertisement

Table of Contents
loading

Summary of Contents for LiteOn PF-2123-1LDM

  • Page 1 3-Phase, Dual-Input, 12.5kW Power Supply System U S E R G U I D E Page 1 of 19 PF-2123-1LDx-UG-02 April 2017...
  • Page 2: Table Of Contents

    Bus Bar Insulator Installation ........................10 Front Panel Bolts ............................. 12 Input Power Connections ......................... 12 PF-2123-1LDM Input Power Connection ..................13 PF-2123-1LDN Input Power Connection ..................14 C13 Receptacle Connections ........................15 Power Supply Unit Installation and Removal ....................16 Power Shelf Controller Installation (Optional) ....................
  • Page 3: Introduction

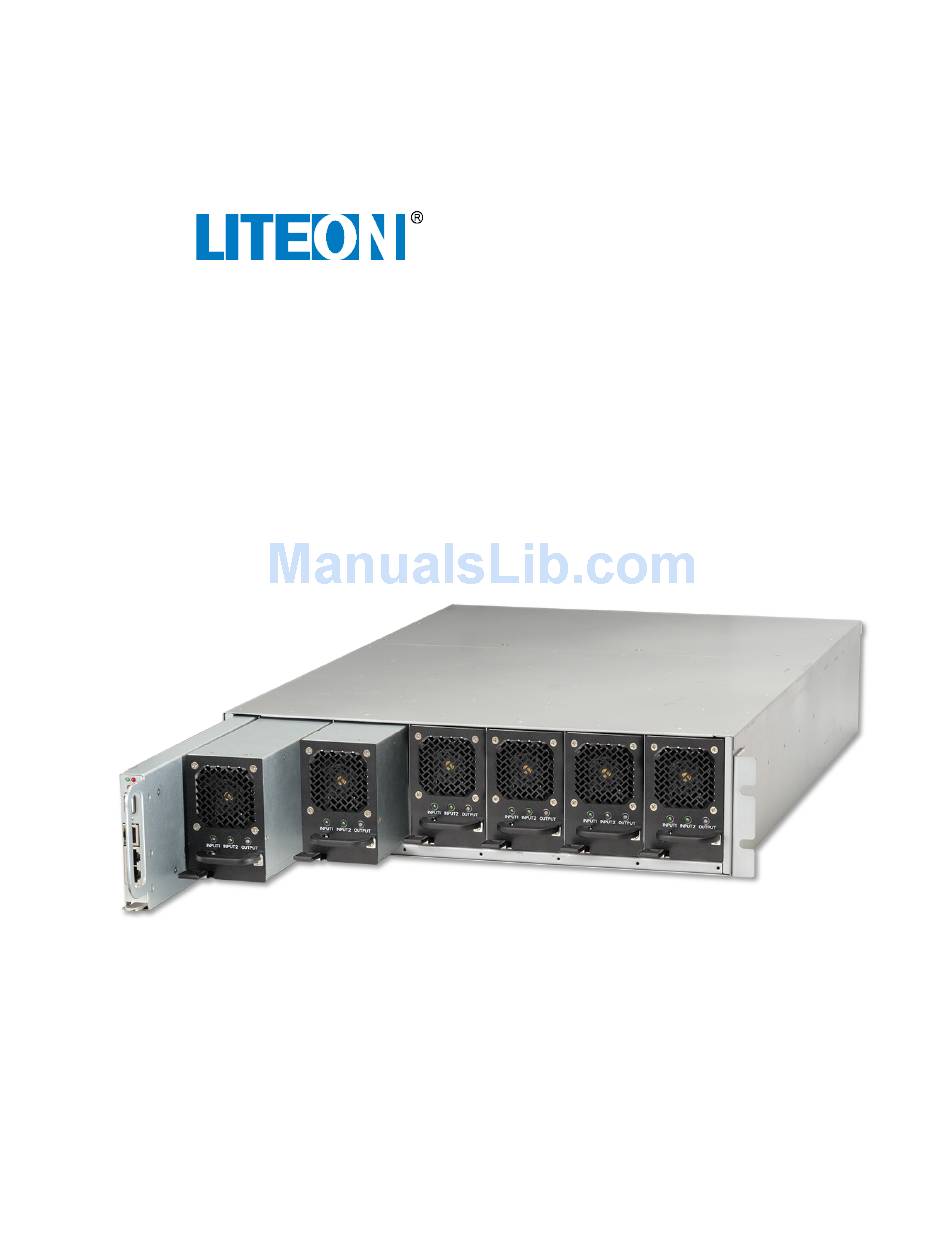

    PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System Introduction The 12.5kW Power System is a 3-phase, dual-input, 6-slot chassis with 2.5KW Power Supply Units (PSUs) that provides stable DC output power (12.5VDC / 1000A). This 19-inch power system uses up to 6 high- power, dual-input, hot-swappable PSUs for flexibility in full power or redundant operation.
  • Page 4: Equipment Inspection

    PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System A least two people are required to remove the rack from its shipping container to ensure WARNING that the rack stays upright and does not fall on personnel. To unpack the rack from its shipping crate: 1.
  • Page 5: Shelf Support Brackets Installation (Non-Lite-On 19-Inch Rack)

    PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System Shelf Support Brackets Installation (non-Lite-On 19-inch rack) The weight of the power shelf is supported in the rack by two Shelf Support Brackets. To install the Shelf Support Brackets into the rack, follow the instructions from the manufacturer of the rack.
  • Page 6 PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System 2. Torque all M6 support bracket screws to 6.1 N-m (4.5 ft-lbs). The support brackets should be connected to the rack as shown below. Installed Support Brackets 3.
  • Page 7: Linking Bus Bar Installation (Single Bus Bar)

    PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System Linking Bus Bar Installation (single bus bar) If using a 3-bus bar adapter, skip to the next section. Linking Bus Bars are installed, but not tightened, to the output power connectors on the rear of the Power Shelf before it is mounted into the rack.
  • Page 8 PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System Linking Bus Bars are installed, but not tightened, to the output power connectors on the rear of the Power Shelf before it is mounted into the rack. After the Power Shelf is installed in the rack, the other ends of the Linking Bus Bars are connected to the rack bus bars and their bolts are tightened then.
  • Page 9: Power Shelf Installation

    PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System Finger tighten bolts before installing shelf Power Shelf Installation After the Shelf Support Brackets are installed into the rack and the Linking Bus Bars are installed on the rear of the Power Shelf, it can be installed into the rack.
  • Page 10: Cable And Wire Installation

    PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System Cable and Wire Installation After the Power Shelf is installed into the rack, it can be connected to rack bus bars. Output Power Connections Output power from the Power Shelf is connected to the rack bus bars via Linking Bus Bars. At this point in the installation, the Linking Bus Bars should already be connected to the Power Shelf bus bars, but not yet tightened.
  • Page 11 PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System Sliding Cover Bus Bar Cover 2. Slide the Sliding Cover over the bus bars and bolts. Refer to the illustration below. Extended Bus Bar Bolt Insulator Page 11 of 19 PF-2123-1LDx-UG-02 April 2017...
  • Page 12: Front Panel Bolts

    There are two input power connectors on the rear of the power shelf. The input power connections for model PF-2123-1LDM (EU market) and PF-2123-1LDN (US market) are different as shown below. To prevent risk of electrical shock to personnel, ensure that power is not active from WARNING utility power when connecting the input power connectors.
  • Page 13: Pf-2123-1Ldm Input Power Connection

    3-Phase 12.5kW Power System PF-2123-1LDM Input Power Connection The pinout for AC Input Plug for PF-2123-1LDM model is shown below. The input cable contains AC power for L1, L2, L3, Frame Ground, and Neutral. The connector is P/N C532P6S by HUBBELL.
  • Page 14: Pf-2123-1Ldn Input Power Connection

    PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System PF-2123-1LDN Input Power Connection PF-2123-1LDN supports two different types of power systems: 1) Delta power system or 2) Y connection 4- wire power system. These systems are shown in more detail below. 1.
  • Page 15: C13 Receptacle Connections

    3. For model PF-2123-1LDN, twist the input power connectors in matching receptacle until they lock into place. 4. For model PF-2123-1LDM, twist the collars on the input power connectors to lock into place. C13 Receptacle Connections There are four (4) C13 receptacles on the rear of the Power Shelf that provide single-phase AC power output.
  • Page 16: Power Supply Unit Installation And Removal

    PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System If necessary, connect devices to one or more of the C13 receptacles. Each set of three C13 receptacles are protected by a 20A circuit breaker. Power Supply Unit Installation and Removal The Power Shelf supports up to six (6) hot-swappable Power Supply Units (PSUs).
  • Page 17: Battery Backup System Installation (Optional)

    PF-2123-1LDx U S E R G U I D E 3-Phase 12.5kW Power System Spring Latch To install a Power Shelf Controller: • Slide the Power Shelf Controller into the Power Shelf Controller slot of the Power Shelf until it clicks into place.
  • Page 18: Warranty

    For instructions on initial startup of the 3-Phase 12.5kW Power Supply System, refer to the Lite-On 3-Phase 12.5kW Power Supply System Startup Guide. For more information related to the Lite-On Power Systems, visit the Lite-On Power Systems Solutions web site at: http://www.liteon-pss.com. Page 18 of 19 PF-2123-1LDx-UG-02...
  • Page 19 Lite-On Power System Solutions 3001 Summit Ave, Suite 400 No. 90, Chien 1 Rd., Chung Ho Dist Plano, TX 75074 New Taipei City 23585, Taiwan +1 (469) 331-9838 +886 -2-2226181 ext 5026 www.liteon-pss.com www.liteon-pss.com email: pss.sales@liteon.com email: pss.sales@liteon.com Page 19 of 19...
