DRILLING THE HOLE

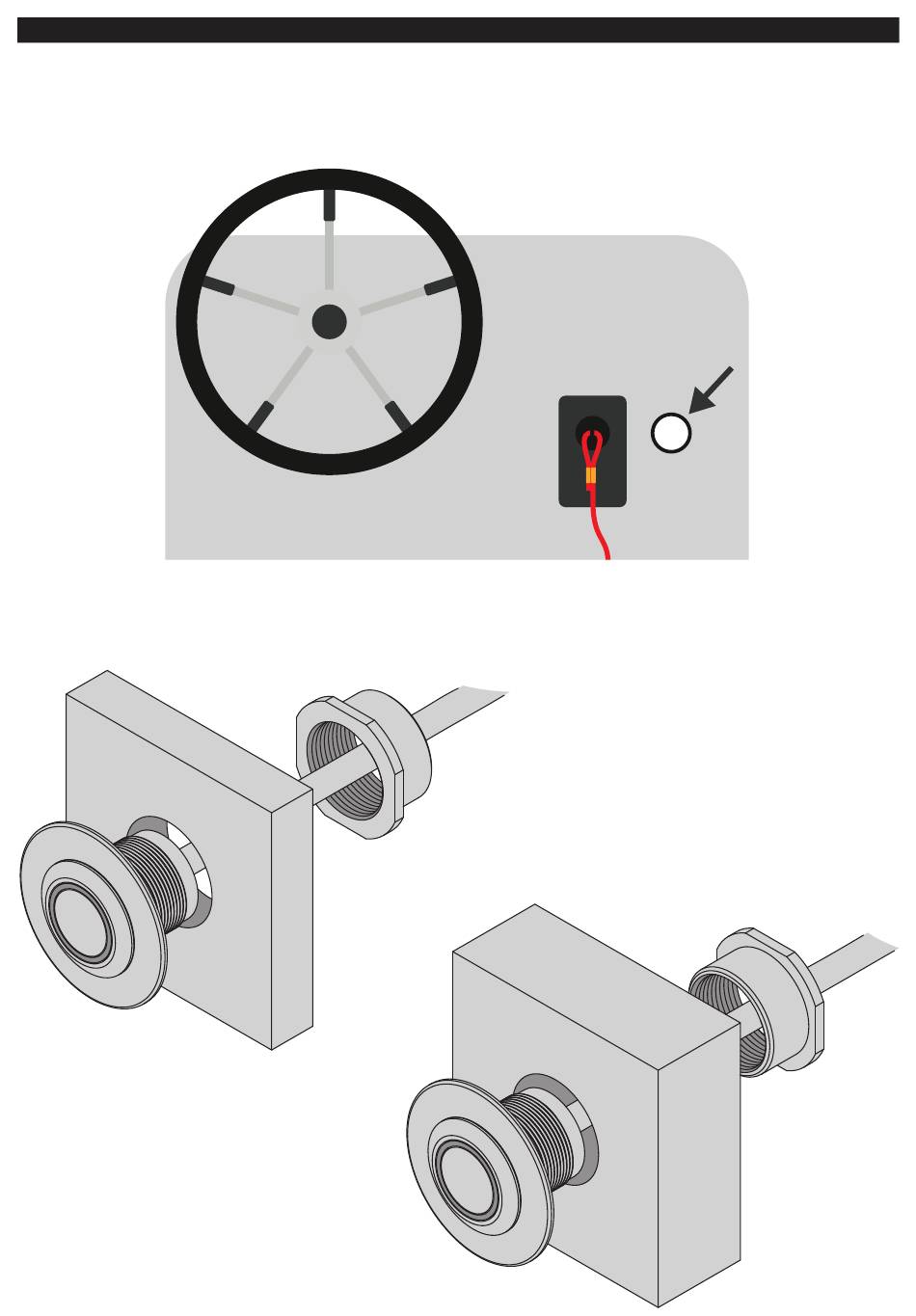

Find a location to install the Guardian's control switch, either next to or near your existing kill switch, then drill
a 0.8 inch (21mm) diameter hole.
0.8" diameter hole
The orientation of the securing nut shown below is dependent on panel thickness:
0.04"-0.31" (1-8mm) panel thickness
0.31"-0.71" (8-18mm) panel thickness
5
