- Page 1 Quick Start Guide Engine Kill Switch • Overboard Alarm • Rescue App • • Scalable System...
- Page 2 1.38” 0.75” 3.29” 0.61” 0.63”...

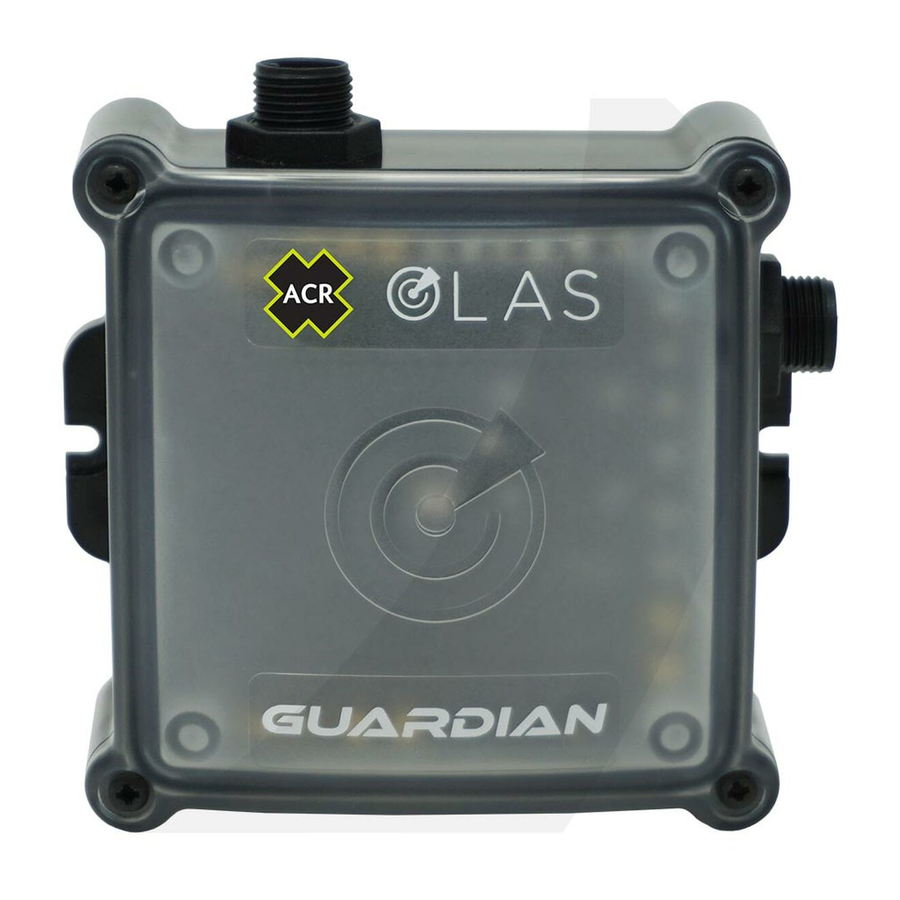

- Page 3 Control Switch with green and red indication LED Control switch cable Guardian Hub Internal emergency Power cable light Internal buzzer Power and signal wires...
- Page 4 OLAS TRANSMITTERS The OLAS TAG or the OLAS FLOAT-ON are considered OLAS transmitters. They emit a Bluetooth signal which is monitored by the OLAS receivers. OLAS RECEIVERS The OLAS receivers track the OLAS transmitters. OLAS receivers are: GUARDIAN - Wireless Engine Kill Switch and Man Overboard (MOB) Alarm System CORE - Base Station for OLAS Transmitters and Man Overboard (MOB) Alarm System OLAS Mobile application EXTENDER - This operates as a repeater to increase the range of the GUARDIAN and CORE...
- Page 5 DRILLING THE HOLE Find a location to install the Guardian’s control switch, either next to or near your existing kill switch, then drill a 0.8 inch (21mm) diameter hole. 0.8” diameter hole The orientation of the securing nut shown below is dependent on panel thickness: 0.04”-0.31”...
- Page 6 CONNECTING THE POWER WIRES (10-32VDC) Connect power cable to Guardian hub. Ensure Power supply is switched OFF. Connect the white (+ or positive) wire to the positive voltage terminal Connect the black (- or ground) wire to the negative voltage terminal Install a 1-3 A fuse in line with the positive connection The Guardian uses a double throw relay enabling it to open or close any circuit.
- Page 7 OPEN TO STOP Existing Signal Wires Kill Switch Control Switch *22mm hole required 1-3A Fuse *19mm hole required Power Ground Battery 10-32Vdc Volvo Penta Input: 10-32Vdc 13~17mA CLOSE TO STOP Existing Signal Wires Kill Switch Control Switch *22mm hole required 1-3A Fuse *19mm hole required Yamaha...
- Page 8 QUICK START GUIDE Turn on OLAS transmitters within 1 meter of the Guardian (press button on OLAS Float-On for 4 secs. or press button on OLAS Tag for 3 secs. The green light will fl ash on the transmitter when it turns on.) Turn on power to the Guardian or press the control switch once Wait for 30 seconds –...
- Page 9 GUARDIAN FUNCTIONS There are 3 operating states which can be applied to individual OLAS Transmitters using the OLAS mobile app: Cut-off and Alert Alert only Paused Add new transmitters within 1 meter Pause all tracking a. Cut-off and Alert (DEFAULT) When an OLAS transmitter goes out of range, within 2 seconds the Guardian will cut-off the engine, sound its internal alert and trigger the MOB alert on the ACR OLAS app.
- Page 10 OPERATION MANUAL Index Start up or returning to the vessel Checking logged OLAS transmitters (without the OLAS mobile application) Checking logged OLAS transmitters (with the OLAS mobile application) OLAS mobile application features Pause Tracking Adding an OLAS transmitter (without the OLAS app) Adding an OLAS transmitter (with the OLAS App) Remove an OLAS transmitter Low battery alert...
- Page 11 4. OLAS MOBILE APPLICATION FEATURES (AVAILABLE FROM HOME SCREEN) • Customise the OLAS transmitters name (press the unique number associated with the transmitter - e.g. OLAS-Float On 1670 - then type the custom name) • Check OLAS tag battery status •...
-
Page 12: Low Battery Alert
9. LOW BATTERY ALERT • A low battery alert will be initiated by the Guardian when an OLAS Tag’s battery level goes below 20% • The alert is indicated by a red flash every 10 seconds on the control switch and the Guardian Hub •... -
Page 13: Specification
LIMITATIONS The connection signal can be blocked by carbon and metal. Operation on carbon or, metal boats will require the Guardian box to be mounted externally. SOUND AND LIGHT INDICATIONS OPERATION ACTION/REACTION DURATION Control switch - Green Turning ON Box – Low red 2 seconds Buzzer ON Control switch –... - Page 14 If you are experiencing any problems with your ACR product or accessories please contact our Technical Service Department at 954-981-3333 or service@acrartex.com ACR Electronics, Inc. 5757 Ravenswood Rd. Fort Lauderdale, Florida 33312 - USA Check web for additional product details and downloads: www.acrartex.com...
-
Page 15: Terms And Conditions
