DEVICE SETUP
2.1 Assembly
Please follow the steps below to install a PCIe card in the Mercury Helios 3S.
The Mercury Helios 3S and your PCIe card are static-sensitive devices. They are susceptible to invisible
damage if not protected during installation. For proper grounding, we recommend using a grounding strap.
Work in a clean, static-free area, and avoid wearing clothing that retains static charges. Please visit this URL for
more information:
www.owcdigital.com/anti-static

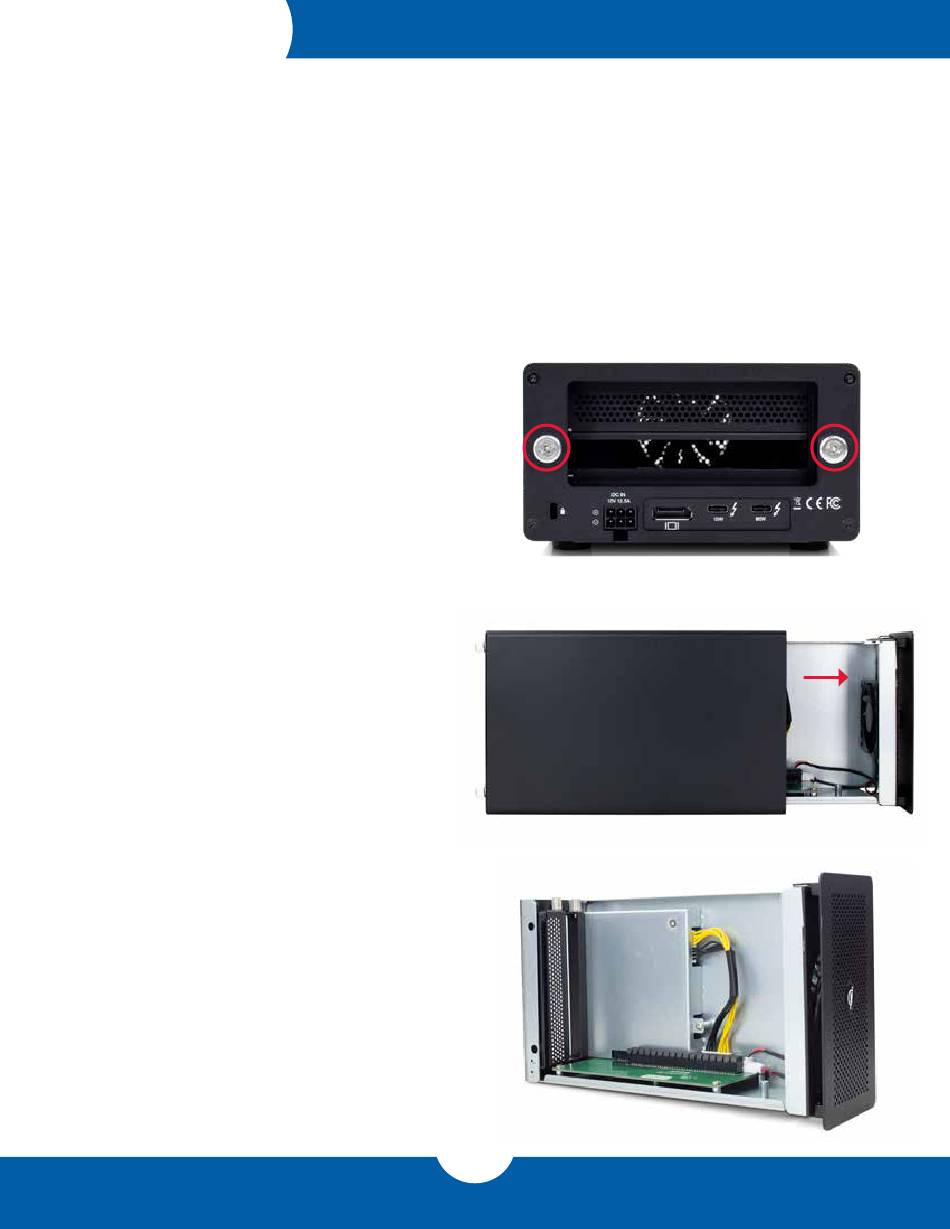

1. Loosen the thumbscrews on the rear panel
until they spin freely. These are captive
screws; they cannot be removed.
2. Set the Mercury Helios 3S on its side, then
grip the front grill and pull the inner-chassis
so that it slides out of the outer-enclosure.
3. Set the inner chassis on a working surface,
with the rear ports oriented to the left, as
shown.
OWC Mercury Helios 3S
4
Device Setup
