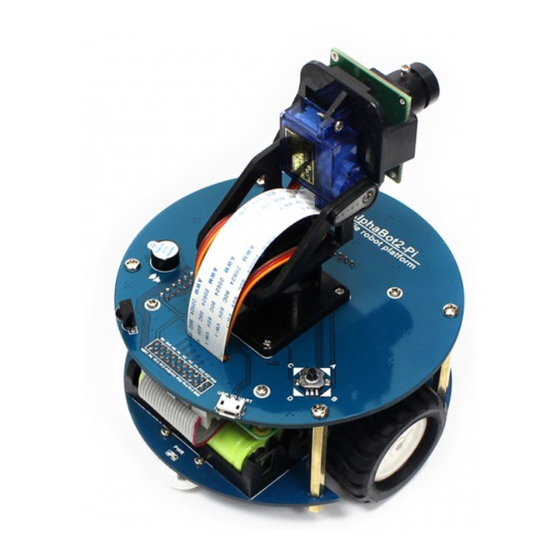

- Page 1 AlphaBot2-Pi Assembly Diagram AlphaBot2-Pi Assembly Diagram 1.Base Chassis Assembly Install the 14500 batteries 2pcs (A), FC-20P cable 8cm and screw (C & D) pillars/caps onto the AlphaBot2-Base (base chassis).
- Page 2 AlphaBot2-Pi Assembly Diagram 2.Camera Pan & Tilt Assembly Place the steering gear in the middle of the stands and fix it with the screw (7). Please make sure the rotor on the steering gear is installed in a correct direction.
- Page 3 AlphaBot2-Pi Assembly Diagram Insert the steering gear describe above to cross-shape rocket arm and fix the installation with a screw (1). Fix another in the stand steering gear into the stand (e), and fix it with two screws (7). Install...
- Page 4 AlphaBot2-Pi Assembly Diagram 3.Integral Assembly Fix the Camera Pan & Tilt unit to AlphaBot2-Pi (adapter board) with the screws/caps (I & J). Pass the motor cable through the flat cable hole and connect it to the pins on the other side of the adapter board.
- Page 5 Fix your Pi to the adapter board with screw pillars/screw caps and then connect the camera cable to the Pi. Plug the FC-20P cable to both the AlphaBot2-Pi (adapter board) and AlphaBot2-Base (base chassis). Note: the connector of the cable...
- Page 6 AlphaBot2-Pi Assembly Diagram the cable is connected correctly. Fix your Pi to the AlphaBot2-Pi (adapter board) with the screws (I). Fix the AlphaBot2-Pi (adapter board) to the AlphaBot2-Base (base chassis) with the screws (F).
