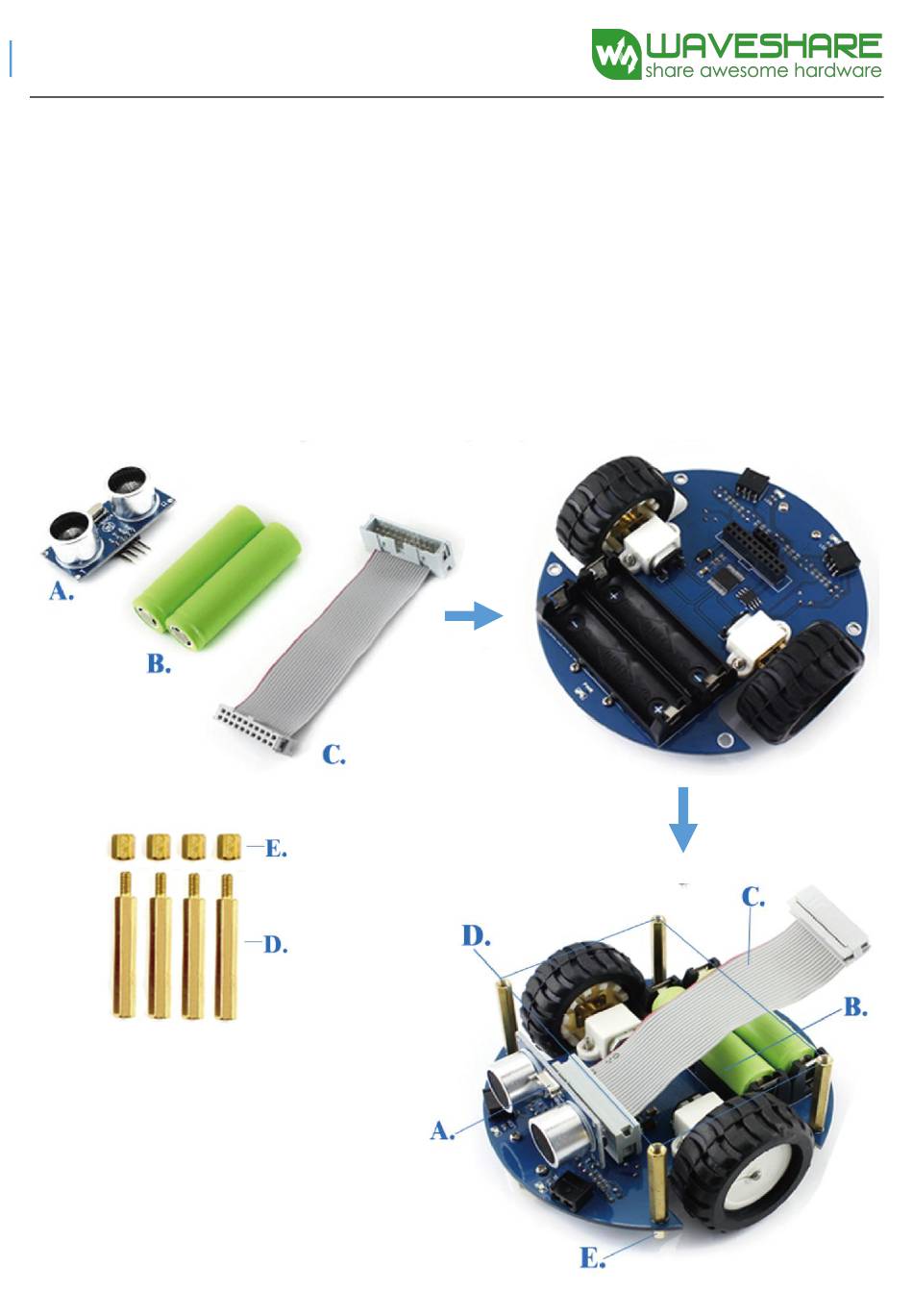

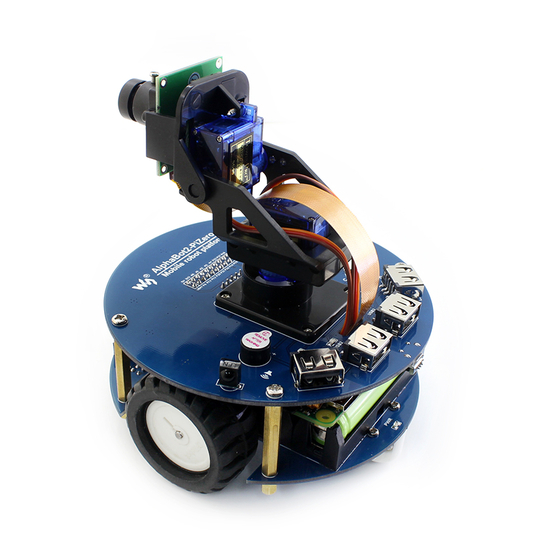

- Page 1 AlphaBot2-PiZero Assembly Diagram AlphaBot2-PiZero Assembly Diagram 1. Base Chassis Assembly Install the Ultrasonic sensor (A), 14500 batteries 2pcs (B), FC-20P (D and E) cable 8cm and screw pillars/caps onto the AlphaBot2-Base (base chassis).
- Page 2 AlphaBot2-PiZero Assembly Diagram 2. Camera Pan & Tilt Assembly Place the steering gear in the middle of the stands and fix it with the screw (7). Please make sure the rotor on the steering gear is installed in a correct direction.
- Page 3 AlphaBot2-PiZero Assembly Diagram Insert the steering gear describe above to cross-shape rocket arm and fix the installation with a screw (1). Fix another in the stand steering gear into the stand (e), and fix it with two screws (7). Install...
- Page 4 AlphaBot2-PiZero Assembly Diagram 3. Integral Assembly Fix the Camera Pan & Tilt unit to AlphaBot2-PiZero (adapter board) with the screws/caps (I & J). Pass the motor cable through the flat cable hole and connect it to the pins on the other side of the adapter board.
- Page 5 AlphaBot2-PiZero Assembly Diagram Attach the Pi to the AlphaBot2-PiZero (adapter board) and plug the Micro USB connector. Plug the FC-20P cable to both the AlphaBot2-PiZero (adapter board) and AlphaBot2-Base (base chassis). Note: the connector of the cable must be plugged following the marks on the PCB. Please make sure...
- Page 6 AlphaBot2-PiZero Assembly Diagram Fix the AlphaBot2-PiZero (adapter board) to the AlphaBot2-Base (base chassis) with the screws (F).
