Summary of Contents for Lamona LAM3801

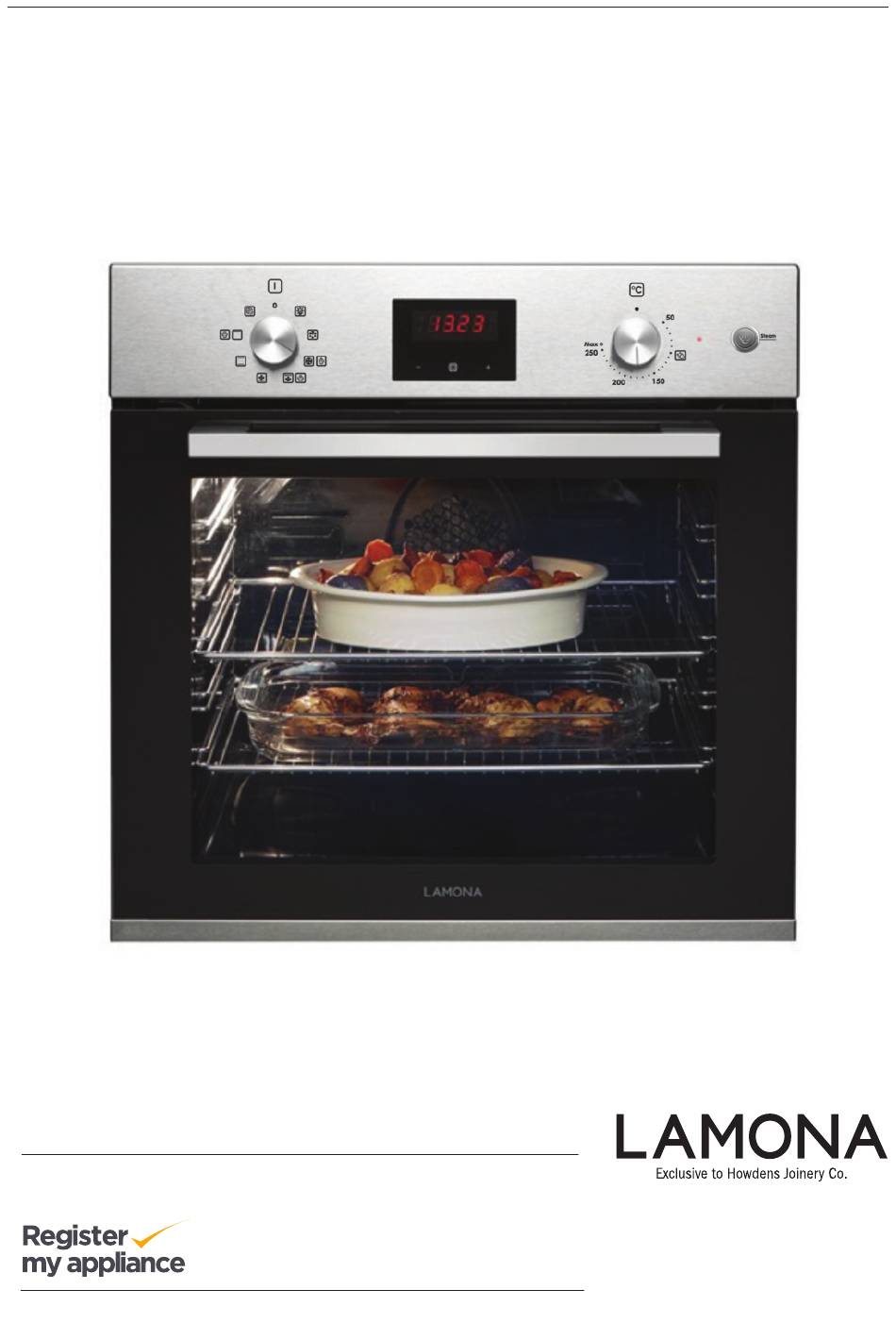

- Page 1 Built-in Oven LAM3801 INSTRUCTIONS AND INSTALLATION www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 LAMONA Appliances Dear Customer, Congratulations on your choice of oven. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the oven. Always follow the safety instructions. Keep this user manual within easy reach for future reference.
-
Page 4: Table Of Contents
User manual LAM3801 Index Before using the oven & Safety Using the steam function Cooking table General Oven cooking table Safety for children Safety when working with electricity Cooking and baking advice General information Care and maintenance Oven layout General information... -
Page 5: Before Using The Oven & Safety
LAMONA Appliances Before using the Oven • Make sure that you have removed all packaging, wrappings, stickes r and film from the oven's surface (see page 10). • It is recommended that you clean and wash the oven's surface before using for the first time. - Page 6 User manual LAM3801 WARNING FIRE RISK: Do not place aluminium foil, baking trays or cook on the base of this oven, doing so will cause permanent damage to your appliance and cabinetry with the potential risk of fire. • Keep all ventilation slots clear of obstructions, as this may cause premature failure of the oven element.
-
Page 7: Safety For Children
When filling in the water tank the level of the water must not exceed the maximum level indicated on the tank. • WARNING: Risk of burn and damage to the appliance: using the steam function released steam can cause burns: Open the door carefully to avoid injury after using a cooking function with steam. -
Page 8: General Information
User manual LAM3801 Control panel Steam button Light Heating element Oven shelf positions / Lateral wire grid Grill pan wire rack / trivet Oven tray / grill pan Oven shelf Telescopic shelf Oven door Handle °C oven / grill function knob... -
Page 9: Operating Modes
LAMONA Operating modes Operating modes or the ovens and grill are listed in this section. Please not der of operating modes av y deviate from the illustrations sho Fan and Lower element Lamp Turns on the oven light. This will The bottom heating element is used with the automatically activate the cooling fan. -
Page 10: Preparation
User manual LAM3801 Preparation First cleaning of the appliance Tips for saving energy 1. Remove all packaging materials. The following information will help you to use your 2. Wipe the surfaces of the appliance with a appliance in an ecological way, and to save energy: damp cloth or sponge and dry with a clean cloth and mild detergent. -
Page 11: How To Operate The Main Oven
LAMONA Appliances How to operate the main oven and grill Setting the correct time How to use the Oven & Grill 1. Set thermostat knob to the desired temperature. 2. Set function knob to the required operating mode. 3. Close the oven door The oven heats up to the adjusted temperature and maintains it. -
Page 12: Clock Programmer
User manual LAM3801 Clock Programmer To Check time left: Press mode button Minute Minder (0.01 min - 23.59hr) To Cancel: Press mode button x 1 time until Cook symbol is displayed. Touch the + or – buttons until alarm sounds and display shows 00.00. -
Page 13: Delayed Start Cooking
LAMONA Appliances Delayed Start Cooking USING THE STEAM FUNCTION The two timed cooking modes can be combined to Steam function lets you have better hummidity during create a delayed start cooking period. cooking cycle. We recommend alternating steam Programme a Timed Operation Period cooking with traditional cooking. -
Page 14: Cooking Table
User manual LAM3801 Cooking Tables The values indicated in the tables below are Baking and roasting indicative. They may vary according to the type of Level 1 is the lowest shelf level. food, the quantity and your preferences of cooking. -
Page 15: Cooking And Baking Advice
LAMONA Appliances Cooking and baking advice Tips for baking cake Risk of scalding by hot steam! Take care when If the cake is too dry, increase the temperature opening the oven door as steam may escape. by 10°C and decrease the cooking time. -
Page 16: Care And Maintenance
User manual LAM3801 Care and maintenance General information Cleaning oven door glass Service life of the product will e end and the e cleaners or sharp oduct is metal scrapers for cleaning the oven door. They cleaned at regular intervals. -
Page 17: R Eplacing The Oven Lamp
Removing and cleaning wire racks 1- Remove the wire racks by pulling them in the direction of the arrows (see below) 2- To clean the wire racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards. -
Page 18: General Notes On Cleaning
User manual LAM3801 General notes on cleaning The lifecycle of the appliance can be extended through regular cleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. -
Page 19: Installation
LAMONA Appliances Installation Before installation The appliance is intended for installation in Howdens kitchen cabinets. The product should only be installed by suitably Surfaces, synthetic laminates and adhesives used must be heat resistant. The product must be installed in accordance with all local regulations. -
Page 20: Installation And Connection
User manual LAM3801 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your oven is intended for permanent installation. Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation. -
Page 21: Connection To Mains Supply
LAMONA Appliances Your oven comes prefitted with a mains cable. Terminal If you need to change it: Neutral : Live: Brown 1. Open the terminal block cover with screwdriver. Earth: Green / 2. Pass the mains lead under the cable clamp and secure clamp with the screw over the outer cable insulation. -
Page 22: Technical Specification
User manual LAM3801 TECHNICAL INFORMATION General Voltage /Frequency 220-240 V ~ 50/60 Hz Total power consumption 2.5 kW Fuse min. 13A Oven/Grill External dimensions (height / width / depth) 595 mm/595 mm/545 mm Installation dimensions (height / width / depth) 585-595 mm/560 mm/min. -
Page 23: Troubleshooting
LAMONA Appliances Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Food is being cooked with a high It is normal that steam escapes from food during Oven emits steam when it water content is in use. cooking. This is not a fault. -
Page 24: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 25 LAMONA Appliances Notes www.howdens.com...
- Page 26 Product serial number (Place sticker here) ISSUE v0 12.11.19...
