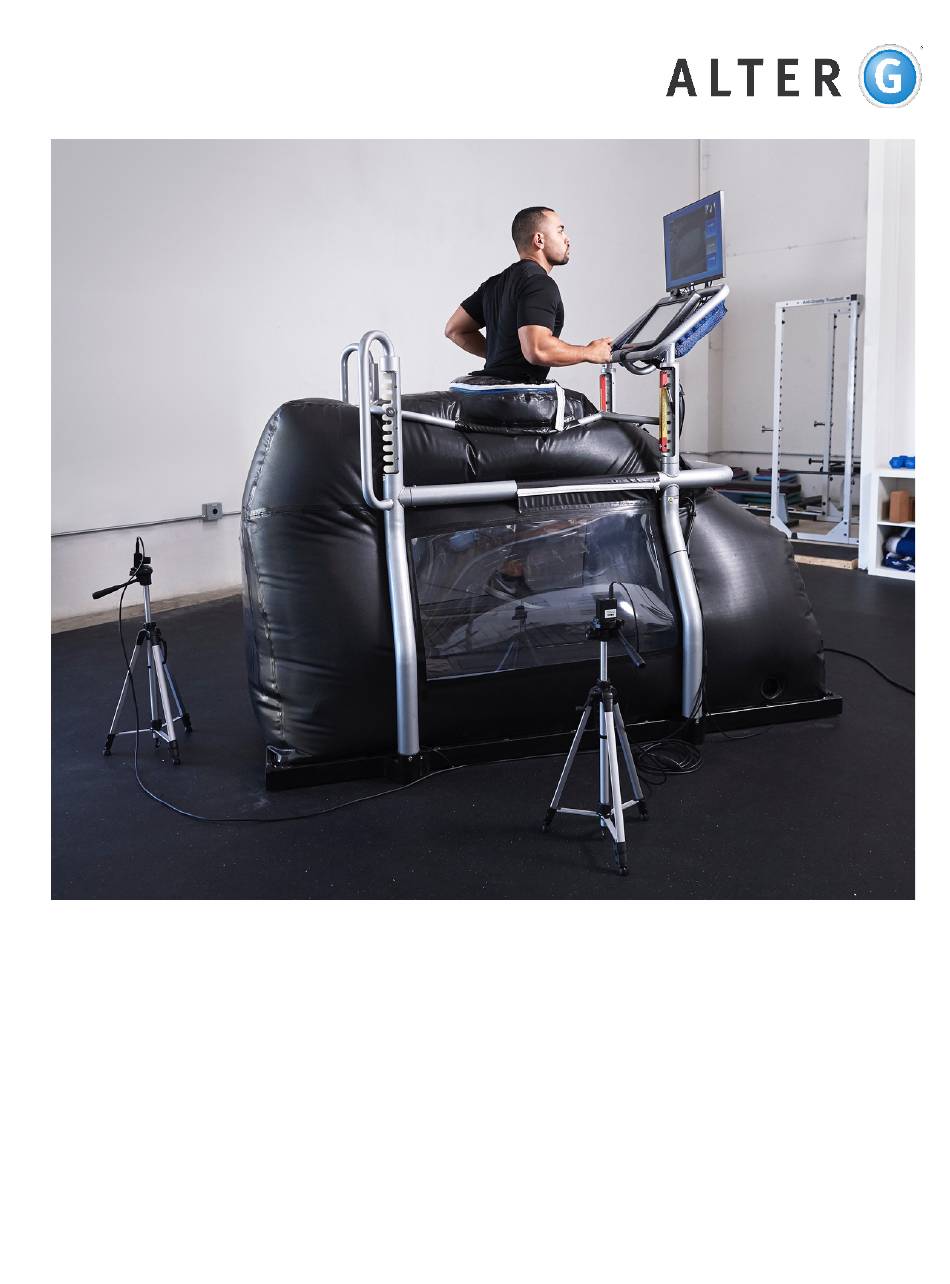

User Manual
®
AlterG Anti-Gravity Treadmill
Pro 200 Plus

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AlterG Anti-Gravity Treadmill Pro 200 Plus and is the answer not in the manual?

Questions and answers

Related Manuals for AlterG AlterG Anti-Gravity Treadmill Pro 200 Plus

Summary of Contents for AlterG AlterG Anti-Gravity Treadmill Pro 200 Plus

  • Page 1 User Manual ® AlterG Anti-Gravity Treadmill Pro 200 Plus...
  • Page 2 AlterG Anti-Gravity Treadmill Pro 200 Plus NOTE: The following symbol is used throughout this manual to call attention to Warnings, Cautions or operational procedures that may directly affect the safe operation of the AlterG Anti-Gravity Treadmill. Read and understand these instructions and statements before operating the AlterG Anti-Gravity Treadmill.

  • Page 3: Table Of Contents

    Electrical Requirements .....................11 Grounding Requirements ....................11 Location Requirements ......................11 Transporting Your AlterG Anti-Gravity Treadmill .............12 SECTION 3: OPERATING THE ALTERG ANTI-GRAVITY TREADMILL ....13 Powering Up ........................13 Putting on the Shorts ......................13 Stepping Into the Anti-Gravity Treadmill ................13 Installing the Oval Support Frame ..................14 Zipping Into the Enclosure ....................15...
  • Page 4 Enclosure Removal Procedure for Cleaning ..............31 APPENDICES ....................... 35 APPENDIX A: ANTI-GRAVITY TREADMILL SPECIFICATIONS ........ 36 SIZES ...........................36 PERFORMANCE ........................36 DIMENSIONS ........................36 RECOMMENDED ROOM DIMENSIONS ................36 ENVIRONMENTAL .......................36 ELECTRICAL RATINGS ......................36 APPENDIX B: EMC STATEMENT ................38 APPENDIX C: OPTIONS AND ACCESSORIES ............42 APPENDIX D: TROUBLESHOOTING ................

  • Page 5: User Responsibility

    Should such repair or replacement become necessary, it is recommended that a request for service be made to AlterG, Inc. The Anti-Gravity Treadmill, or any of its parts, should only be repaired in accordance with instructions provided by AlterG, Inc., authorized representatives of AlterG, Inc., or by AlterG, Inc.

  • Page 6: Contact Information

    Contact Information AlterG welcomes your inquiries and comments. If you have any questions or comments, please contact our service and support. Contact information list is below. AlterG Headquarters 48438 Milmont Drive Fremont, CA 94538 510 270-5900 www.alterg.com Service and Support...
  • Page 7 D000161-00 Rev. C...

  • Page 8: Safety: Warnings And Cautions

    Keep all liquids away from electric components. Always unplug the machine before cleaning and maintenance. • Service should be performed by an authorized technician. Contact AlterG before you or an electrician attempt any maintenance. • Do not place any liquids on any part of the Anti-Gravity Treadmill (except in the water bottle baskets), including the treadmill running surface.
  • Page 9 • Always use the emergency safety lanyard supplied with the Anti-Gravity Treadmill. It should be clipped to an article of clothing while exercising. This is very important for your safety in case you fall during your workout. • The oval support frame must be pushed all the way into the height adjusters located at the front and the rear of the machine and the red safety latches must be closed and secured before beginning operation of the machine.

  • Page 10: Section 1: Introduction

    SECTION 1: INTRODUCTION Considerations Before Starting an Exercise Program Consult a Physician Anyone considering an exercise program or an increase in activity should consult a physician. If you have heart disease, high blood pressure, diabetes, chronic respiratory disease, elevated cholesterol, if you smoke cigarettes, are currently inactive, are obese, or have any other chronic disease or physical impairment or if there is a history of such disease in your family, it is highly recommended that you follow the guidance of your physician before and during an exercise program or any other increase in physical activity.

  • Page 11: Section 2: Setup And Installation

    Blue Conductor: Neutral Brown Conductor: Line Green/Yellow Conductor: Ground If Stride Smart is being installed, a 110V power outlet is required within ten feet of the front of the AlterG Anti-Gravity Treadmill to power the display monitor. Grounding Requirements The Anti-Gravity Treadmill must be grounded electrically. If there is an electrical malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

  • Page 12: Transporting Your Alterg Anti-Gravity Treadmill

    An 8 foot (2.4m) ceiling may be too low for taller users. Transporting Your AlterG Anti-Gravity Treadmill Contact AlterG if you plan on moving your Anti-Gravity Treadmill. Damage sustained by improperly moving the Anti-Gravity Treadmill will not be covered by your warranty. D000161-00 Rev. C...

  • Page 13: Section 3: Operating The Alterg Anti-Gravity Treadmill

    Place a foot on either side of the belt (on the side rails) during boot-up to avoid this problem. Once you see the “Welcome to the AlterG Anti-Gravity Treadmill” screen you are ready to begin. Putting on the Shorts...

  • Page 14: Installing The Oval Support Frame

    Enter from the back and step into the opening in the enclosure. It is fine to step on the enclosure as you enter, but make sure that you have no rocks or sharp objects embedded in the soles of your shoes that could mar or damage the enclosure. Installing the Oval Support Frame Figure 2 Figure 3...

  • Page 15: Zipping Into The Enclosure

    Close the red safety latches located on the front height adjusters and secure them with the spring loaded safety pins. CAUTION: Never operate the Anti-Gravity Treadmill without the safety latches closed and locked in place (Figure 5). This is an essential safety item that prevents the oval support frame from inadvertently disengaging from the height adjusters during exercise.

  • Page 16: Operating The Software & Using The Touch Screen

    If you lose the safety magnet, immediately order a replacement from AlterG. As a precaution, the machine will not operate without the magnet directly over the Emergency Stop label. Operating the Software & Using the Touch Screen You are now zipped into the Anti-Gravity Treadmill and sealed to the enclosure. A great deal of effort was made to make the Anti-Gravity Treadmill control screens as easy as possible to operate.

  • Page 17: Control Screen (Figures 11 &12)

    out to your sides or crossed on your chest, away from any structures, during the calibration procedure. Control Screen (Figures 11 &12) Figure 11 Once calibration is complete, click “Continue” to proceed to the session screen to begin your workout. Figure 12 The graphic chart displays in the middle of the screen show the user’s workout speed, percent body weight and...

  • Page 18: Adjusting Treadmill Grade

    Refer to “Facility Screens Function” (pg. 20) for information on how to switch between MPH and KPH measurements. To walk or run forward, press the up arrow speed control until the treadmill surface begins to move and you find yourself having to walk in a forward direction. Note that the speed reading is displayed as a positive number.

  • Page 19: Stopping The Exercise Session

    Refer to our Stride Smart User Manual for more information about how to save your session videos and report at: www.alterg.com/user-resources Stepping Out of the Anti-Gravity Treadmill To get out of the Anti-Gravity Treadmill, press “End” on the touch-screen and wait for the enclosure to completely deflate.

  • Page 20: Facility Screen Functions

    Facility Screen Functions The Welcome Screen (Figure 9) has a hidden function, “Facility Settings,” that allows the user to make adjustments to the operation of the treadmill. These adjustments are meant to be made by facility personnel, not by the individual about to exercise. To access the “Facility Settings”...

  • Page 21: Operation Of The Optional Accessories

    treadmill just begins to move forward. Let’s say you pressed the red arrow 5 times; on the fifth time the belt began to move forward. There are 5 presses that define a range over which the treadmill does not move. You want to leave the creep adjustment in the middle of this range. To arrive at this position for this example, the green arrow is pressed 3 times.
  • Page 22 Workout Programmer Reference: www.alterg.com/workout-programmer Stride Smart Reference: www.alterg.com/user-resources D000161-00 Rev. C...

  • Page 23: Section 4: Safety Features Of The Anti-Gravity Treadmill

    If you lose the safety magnet, immediately order a replacement from AlterG. As a precaution, the machine will not operate without the magnet directly over the “Magnet Here” label.

  • Page 24: Section 5: Labels, Locations, Interpretation

    Anti-Gravity Treadmill and should be followed for a safe and enjoy able exercise experience. Should any of the labels become damaged and unreadable, immediately contact AlterG for replacements. The location of the labels are indicated in Figure 19. Refer to this diagram to locate the label being described.
  • Page 25 Label #1 These labels are located on the top front face of the operator’s screen console. It identifies the on/off switch used for turning on or shutting down the Anti-Gravity Treadmill, and the USB port. Label #2 This label is located on areas of the Anti-Gravity Treadmill frame that present a pinch hazard when the enclosure is inflated.
  • Page 26 Label #5 You must be in good health to exercise on the machine. Consult with your Physician before beginning an exercise program on the machine. If you experience any pain, discomfort or unusual symptoms while exercising on the machine, stop immediately and consult your physician before resuming an exercise program.
  • Page 27 If you see this label, do not get close to or disassemble any of the components to which it is attached. Because the high voltage can cause serious injury or death, only a qualified AlterG service technician should attempt any repairs. D000161-00 Rev. C...

  • Page 28: Section 6: Anti-Gravity Treadmill Maintenance

    Use a mild detergent. Air dry. Do not place in dryer. AlterG’s Shorts should be cleaned and disinfected in accordance with standing clinical policy regarding patient apparel and the degree of exposure risk. Consult the CDC website for the latest guidelines on decontamination of patient equipment and apparel.
  • Page 29 Following exposure to infectious agents, clean the surfaces of the machine in accordance with CDC guidelines or consult AlterG Inc. General Cleaning and Inspection Periodic cleaning and inspection will help lengthen the life of your machine and keep it looking good.

  • Page 30: Cleaning The Enclosure Windows

    NOTE: If your Anti-Gravity Treadmill is exposed to the sun, it is necessary to order a special window cleaner that contains UV protection. For a list of retailers and distributors in your area, contact AlterG or visit Amazom.com and order the IMAR™ Strataglass protective cleaner. If you have any problems with your Strataglass, contact AlterG immediately.

  • Page 31: Enclosure Maintenance

    If this or other leaks start affecting the maximum pressure capabilities of the Anti-Gravity Treadmill, contact AlterG for troubleshooting and support. Lubricate the zipper on the enclosure as needed using a zipper lubricant. Keep sharp objects away from the enclosure at all times.
  • Page 32 3. Once you slide out all the plastic tabs on a frame, Figure 22 tilt the metal slat towards the inside of the machine (in the locked down position, it should be at a 45 degree angle pointing towards the outside of the machine.) You may have to push down on the slat as you rotate it inwards.
  • Page 33 To Re-attach the enclosure: Figure 26 It is easiest to attach the back of the enclosure first and follow with the sides. Place the bottom edges of the enclosure in the small groove (Figure 26) between the outer edge of the wood and the inside of the metal base.
  • Page 34 Figure 29 Figure 29 shows the slat has been pushed down and rotated outwards to capture the top of the slat under the metal tabs. Figure 30 Take the black plastic sliders and slide one under each metal tab (Figure 30). Push them far enough so the metal tab rests on the flat surface of the slider.

  • Page 35: Appendices

    APPENDICES A: Specifications B: Options and Accessories C: Troubleshooting D: Warranty D000161-00 Rev. C...

  • Page 36: Appendix A: Anti-Gravity Treadmill Specifications

    22 inches (56 cm) wide  62 inches (158 cm) long • Speed range: AlterG Anti-Gravity Treadmill Pro 200  Forward 0 – 18 miles per hour (0 – 29 km/hr)  Reverse 0 – 10 miles per hour (0 – 16 km/hr) •...
  • Page 37 • Electrical Connection: 30 ampere circuit, NEMA L6-30R receptacle • International Configuration: The appropriate plug should be attached to the power cord of the AlterG Anti-Gravity Treadmill using the following wire connection scheme:  Blue Conductor: Neutral  Brown Conductor: Line ...

  • Page 38: Appendix B: Emc Statement

    APPENDIX B: EMC STATEMENT Warning: • The use of accessories, transducers and cables other than those specified by AlterG, Incorporated, may result in increased EMISSIONS or decreased IMMUNITY of the EQUIPMENT. • This EQUIPMENT should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, the EQUIPMENT should be observed to verify normal operation in the configuration in which it will be used.
  • Page 39 Electrostatic +/-6 kV contact +/-6 kV contact Floor should be wood, concrete or discharge (ESD) ceramic tile. If floors are covered with IEC 61000-4-2 +/-8 kV air +/-8 kV air synthetic material, the relative humidity should be at least 30%. Electrical fast +/-2 kV for power +/-2 kV for power...
  • Page 40 Guidance and manufacturer’s declaration - electromagnetic emissions The EQUIPMENT is intended for use in the electromagnetic environment specified below. The customer or the user of the EQUIPMENT should assure that it is used in such an environment. Immunity Test IEC 60601 Compliance level Electromagnetic environment - Test level...
  • Page 41 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT The EQUIPMENT is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.

  • Page 42: Appendix C: Options And Accessories

    APPENDIX C: OPTIONS AND ACCESSORIES Please visit the AlterG Store: http://store.alter-g.com/ or contact your AlterG Sales representative for pricing and ordering. D000161-00 Rev. C...

  • Page 43: Appendix D: Troubleshooting

    APPENDIX D: TROUBLESHOOTING In most cases any repairs to your Anti-Gravity Treadmill will need to be completed by an AlterG qualified technician. There are however, many things that you can do to troubleshoot problems before a repair technician will be required.

  • Page 44: Leaks

    Leaks If you find a tear in either the fabric enclosure or shorts, discontinue use and contact AlterG. System Errors The Anti-Gravity Treadmill software has built in error checking to ensure all systems are operating within specifications. If an error is detected, an “Unexpected Error” screen will be displayed.

  • Page 45: Appendix E: Warranty Information

    APPENDIX E: FEATURE CHANGES Below is a table of feature changes that you may encounter if upgrading from a previous model of the Pro 200 to the Pro 200 Plus. Calibration Failure If unit will fail during calibration if it cannot unweight the user below 90% BW and/or if it cannot gather more than 5 calibration points.
  • Page 46 At the end of a session user needs to hit “stop” to quit the session. This allows the user to do a cool down after their workout is complete. Workout Programmer “Select Workout” goes to pre-programmed workouts. Pre-programmed Workout Programmer Insert USB key to select personalized workouts.
  • Page 47 AlterG offers an Extended Warranty on a year by year basis for the AlterG Anti-Gravity Treadmill as follows: If you purchase the Extended Warranty at the time of your purchase, AlterG will provide one (1) free preventative maintenance check and service of the Pro 200 by a qualified technician at the end of the first year of use.
