Summary of Contents for Ouring 3DTALK Future

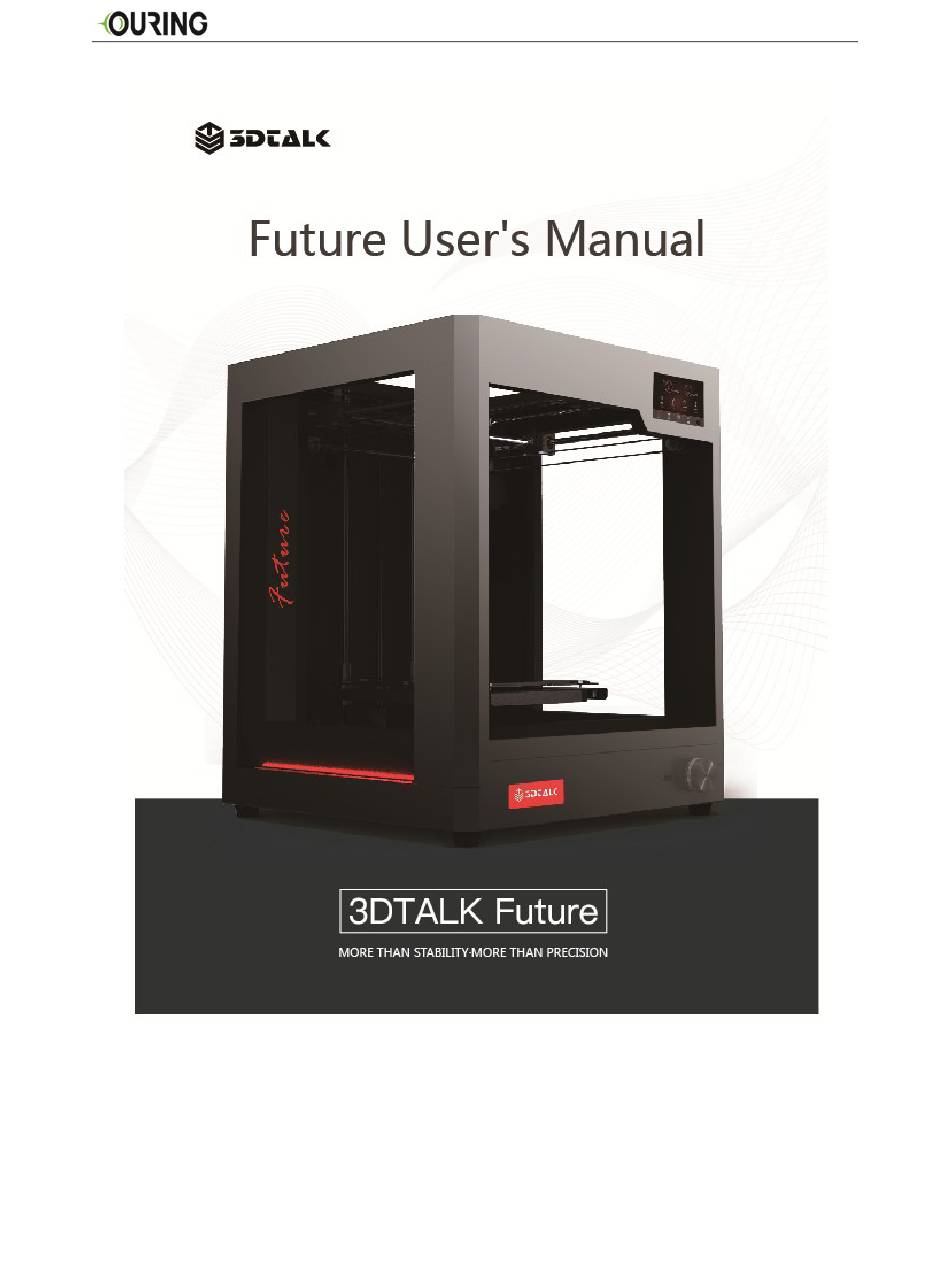

- Page 1 Jiangsu Ouring 3D Technology Co.,Ltd...
-
Page 2: Table Of Contents
Jiangsu Ouring 3D Technology Co.,Ltd Contents 1.INSTALLING SOFTWARE…………………………..……………………………………………….………..……2 ………………………..……………………………………………………….…………3 Production Introduction …….…………………………………..………………………………………..….…4 Important safety warning ………………………………………..……………………………………………………..……5 Filament Storage 2. PRODUCT PROFILE………………………………………………….…………………………………..…..……6 2.1 Product Appearance ……………………………………………………………………………………………6 2.2 Spare Accessories…………………………………………………………………………..………………….11 2.3 Specification………………………………………………………………………………………………………13 3. INSTALLING AND DEBUGGING PRINTERS………………………………………………………………16 3.1 Install the printer………………………………………………………..……………….…………………….16 3.2 Changing filament………………………………………………………..…………………………..……….22 3.3 Extruder calibration………………………………………………………..…………………………..…….23... -
Page 3: Installing Software
This 3d printer provide you with different color of filament to help you achieve your creativity with no waiting. New customer of 3DTALK Future need to read this user guide carefully before unpacking, ouring will retain all its rights and we will... -
Page 4: Important Safety Warning
Jiangsu Ouring 3D Technology Co.,Ltd 1.2Important safety warning Modification or disassembly without special approval will make the the failure of the equipment warranty. Please observe all the safety rules in this section,and follow all the precautions and warnings in this guide. In order to get the correct printing,please operate carefully and not to touch the hot surface Please do use the designated power adapter included in the machine. -
Page 5: Filament Storage
Jiangsu Ouring 3D Technology Co.,Ltd 1.3 Filament storage Although all polymers will degrade over time,but the following conditions can help you ensure the quality of the material 1.Only unpack the package when you need to use 2.Seal the package of filament under dry environment of temperature 18~29℃... -
Page 6: Product Profile
Jiangsu Ouring 3D Technology Co.,Ltd 2. Product Profile 2.1 Product Appearance Front view of the printer 1、Touching Screen 2、extruder 3、Printing plate 4、Power Button 5、USB port... - Page 7 Jiangsu Ouring 3D Technology Co.,Ltd Side view of printer 1、cooling fan 2、camera 3、filament holder 4、LED light...
- Page 8 Jiangsu Ouring 3D Technology Co.,Ltd Back view of the printer 1、quick plug 2、feeding motor 3、filament break sensor 4、filament 5、Power port (DC/220V/50Hz) 6、Power button...
- Page 9 Jiangsu Ouring 3D Technology Co.,Ltd extruder illustration 1、quick plug 2、extruder heating cube 3、nozzle 4、extruder heating stick 5、cooling fan 6、auto-leveling detector...
- Page 10 Jiangsu Ouring 3D Technology Co.,Ltd 1、extruder flat cable 2、printing guide tube 3、tube holder xyz axis illustration...
-
Page 11: Spare Accessories
Jiangsu Ouring 3D Technology Co.,Ltd 2.2 Spare accessories Filament holder power plug Allen wrench PLA filament (1KG) Nozzle (0.2mm) Flat shovel nipper pliers L shape socket spanner solid gum PC sand paper filament guide tube Spare screws printing plate detaching tube... - Page 12 Jiangsu Ouring 3D Technology Co.,Ltd Note: All screws in the accessories list are spares and can be replaced according to the actual situations. All of the colors of PLA filaments listed in the accessory list are random Regarding accessory pictures in the accessories list, the actual accessory appearances...
-
Page 13: Specification
Jiangsu Ouring 3D Technology Co.,Ltd 2.3 Specification Specification data FutureSpecifications and Characteristics parameters 0.2mm/0.4mm Build volume 205*205*255mm Nozzle diameter 0.075mm-0.3mm Max 120mm/s 0.2mm nozzle for thickness 60mm/s-80mm/s Layer thickness Printing speed under 0.1mm Positioning Z axis2.5um，X/Y axis11um Extruder quantity precision... - Page 14 Jiangsu Ouring 3D Technology Co.,Ltd Printer Package 466*472*550mm 565*525*635mm dimension dimension ≈26.3kg ≈29kg power 200V-240V 50Hz 200W structure High strength sheet metal Framework connectivity USB/WIFI spraying XYZ moving Z axis high precision Build plate aluminum alloy structure screw rod 4.3 inch full color...
-
Page 15: Installing And Debugging Printers
Jiangsu Ouring 3D Technology Co.,Ltd Environmental requirements Room temperature: 15°C-30°C Relative humidity: 20%-50% Avoidance of machine movement and strong vibration during printing. Stable output of voltage Installing and Debugging Printers... -
Page 16: Install The Printer
Jiangsu Ouring 3D Technology Co.,Ltd 3. Installing the printer 3.1Installing the printer unpack the package, take out the printer .Hold the metal plates of the two sides and lift out the printer out of the carton box step 1 step 2... - Page 17 Jiangsu Ouring 3D Technology Co.,Ltd plug, until the tube cannot continue downward into the (picture 2), and black tube natural decline to the spray head can quickly plug filament feeder guide tube installation picture 1 extruder guide tube installation illustration...
- Page 18 Jiangsu Ouring 3D Technology Co.,Ltd down detaching tube assistor, and at the same time pull out the guide tube. If you need to remove the guide tube at the feeder motor ,you just need to keep pressing the black cushion pad at the quick plug,and at the same time,pull out the feeding guide tube.
- Page 19 Jiangsu Ouring 3D Technology Co.,Ltd Picture 1 picture 2 picture 3 Firstly swivel open the fixing clamp of the build plate（picture1） then take out the platform, stick the sand paper on the plate, and put it on platform holder（picture 2）...
- Page 20 Jiangsu Ouring 3D Technology Co.,Ltd （picture 1） （picture 2）...
- Page 21 Jiangsu Ouring 3D Technology Co.,Ltd 3.2 Changing the filament at the extruder Take out the power plug,connect and turn on the power button(picture 1).Press the screen button in the front of the printer(picture 2),then you Step 1 will find the two side LED lights are consistent red.
-
Page 22: Changing Filament
Jiangsu Ouring 3D Technology Co.,Ltd filament will be extruded from the nozzle as picture 2.After feeding successfully, press stop icon to cancel the feeding. When you need to change a new filament,Press”turning back”button until the filament turns back out of the tube totally, press stop icon. Then load the new... -
Page 23: Extruder Calibration
Jiangsu Ouring 3D Technology Co.,Ltd 3.3 Extruder calibration Picture 1 picture 2 press “advanced” icon and choose “Nozzles” ,press “start calibration”, wait to display picture 2, then put an A4 paper between nozzle and build plate, via clicking “^/v”function to find the proper friction. after that, press “start calibration” and wait the success notice to finish Receive the success notice of nozzle calibration,it means succeed.The function is used... -
Page 24: Build Plate Leveling
Jiangsu Ouring 3D Technology Co.,Ltd 3.4 build plate leveling 3DTALK Future is equipped with auto leveling with one button pressing. Notice: before leveling, make sure platform and nozzle is clean. step 1: press setting icon, choose “bedlevel” icon(picture 1) and press one button “leveling”(picture2), wait for the success notice to press ok to finish leveling. -
Page 25: Setting"And Advanced Setting"Introduction
Jiangsu Ouring 3D Technology Co.,Ltd 3.5 setting and advanced setting function introduction setting： Set the language adjust the bed level Feed/return the filament factory set and hotspot... - Page 26 Jiangsu Ouring 3D Technology Co.,Ltd Update for firmware and software Basic information of the printer <only available for USB) QR code for APP connection switch to network mode Notice：1.hotspot mode：printer is equipped with hotspot function for remote printing control 2.Internet：workable for WIFI and APP connection, choose searching wifi account and...
- Page 27 Jiangsu Ouring 3D Technology Co.,Ltd Advanced setting extruder calibration manual control of XYZ axis Heat up plate manually cooling fan on/off motor power off to manually move axis...
- Page 28 Jiangsu Ouring 3D Technology Co.,Ltd 1.extruder calibration: adjust gap between nozzle and platform 2.control of XYZ axis：control movement of XYZ axis. 3.build plate heat up：manually preheat。（default temperature is 50°） 4.cooling fan：turn on or off the fan manually。 5.motor power off：XYZ axis will be locked when power on, this function will unlock XYZ axis to manually move.
