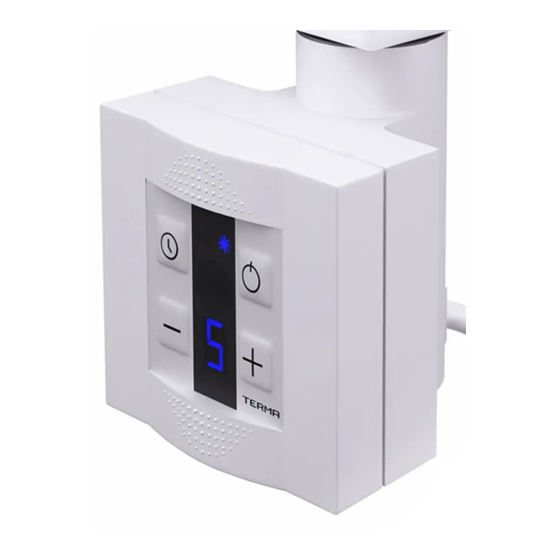

TERMA KTX 1 User Manual

Electric heating

Hide thumbs Also See for KTX 1:

User manual (136 pages)

User manual (132 pages)

User manual (89 pages)

Table Of Contents

Need help?

Do you have a question about the KTX 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for TERMA KTX 1

Page 1 Electric Heating KTX 1, KTX 2, KTX 3, KTX 4. Gebrauchsanweisung Elektroheizpatrone KTX 1, KTX 2, KTX 3, KTX 4. Mode d’emploi Kit résistance électrique KTX 1, KTX 2, KTX 3, KTX 4. Návod na obsluhu Topné těleso KTX 1, KTX 2, KTX 3, KTX 4. Návod na obsluhu...
Page 2: Safety Regulations
INTENDED USE OF DEVICE Colour Letter code Wire type Terma heating elements and control heads are electric heating devices and are intended Brown Live for installation and use in radiators used for heating interior spaces or drying towels or Blue Neutral clothes.
Page 3: Technical Information
TECHNICAL INFORMATION – PW (straight cable with plug) Model code – PB (straight cable without plug) (type of power wire) – SW (spiral cable with plug) – MS (masking cover + on/off switch) Electric supply 230 V / 50 Hz Heating output 120, 200, 300, 400, 600, 800, 1000 W available...
Page 4 CONSTRUCTION OF THE HEATING ELEMENT UNIT Tools required for installation of heating element unit Complete KTX unit contains Terma-SPLIT heating element and – Allen key 1.5 (included) – spanner no 24 controller for it. Depending on the model of the controller, it can also be completed by a remote programmer.
Page 5 12. Set the maximum possible temperature required and observe the liquid level rise – the excess liquid may be slopping through the upper opening – remove excess liquid in order not to allow for the controller to be flooded or wetted. 13.
Page 6 Installation of the heating element unit WARNING! The device must not be connected to electricity during installation. Unlug the device prior to installation. 8. Position the controller casing in a way providing an easy and comfortable access. WARNING! If you feel resistance when twisting the controller that means that you have reached the maximum twisting span in that direction.
Page 7: Maintenance
INSTALLATION OF THE MS VERSION OF DEVICE (WITHOUT THE POWER SUPPLY WIRE) DEVICE DISASSEMBLY 1. Release the screw at the back of the controller casing. 2. Take off the casing. 3. In case of a radiator connected to a central heating system, close the valves and remove the heating agent.
Page 8: Problem Solving
PROBLEM SOLVING KTX 1 Problem Possible cause Solution Device is connected, no Device is not turned on Turn the device using diodes are on, heating ele- button ment does not heat. Connection problem Check the connection, plug and the socket.
Page 9: Timer Mode
KTX 2 2. TIMER Mode can also be used to TURN the device ON: Turn the device off using the button, press the button – the device will turn on after 2 hours, with the same temperature it was set to prior to being turned off. If the required temperature is different to the one from before when the device was turned off, set the required temperature before turning the device off.
Page 10: Anti-Freeze Function
KTX 3 Turning the device on does not mean that it uses the same maximum power for the whole time it is on. On turning the device on, it operates with the nominal power for a short period of time in order to heat up the radiator to the set temperature. After that it turns Control Panel itself on and off periodically, using only as much energy as it is required to maintain the set temperature of the radiator for current external conditions.
Page 11: Clock Programming
CLOCK PROGRAMMING TIMER PROGRAMMING Press both arrow buttons at the same time Turn on the device by pressing Hour field will start flashing Press and hold → button ON or OF will start flashing Set the required hour using Confirm it by Activate (On) or deactivate (Of) the mode with the use of pressing .
Page 12 PROBLEM SOLVING KTX 4 Problem Possible cause Solution Device is plugged in, LCD Problem with the con- Check the power wire display is empty. nection. connection, plug and the socket. Device does not heat, E7 Device signals emergency, Disconnect the device or E9 is flashing on the temperature sensor has completely and wait until...
Page 13 LOCAL MODE OPERATION (WITHOUT IR TRANSMITTER) 1. Meter reading: Press and hold the button – the display panel will show letter E followed by 4 digits Heating mode separated by a hyphen (actual operating time of the device), ie. E..0..2..-..1..5 means that the device was actually working for 2 hours and 15 minutes from the last time It is possible to set 5 temperature levels in the local mode.
Page 14 PROBLEM SOLVING Use of the remote transmitter Detailed description of the basic and advanced features of the IR transmitter depends on Problem Possible cause Solution a given type (please see user manual attached to your IR transmitter). Examples of features of an IR transmitter – type DT-IR1 Device is connected to Connection problem Check the power wire...
Page 15: Warranty
Warranty Terms & Conditions 1. The subject of this warranty is microprocessor-equipped controller for KTX heating elements, which uses the TERMA-SPLIT system. Product name and characteristics are specified on the packaging. 2. By accepting the device on purchase, the Client confirms that the product is of full value.
Page 16 TERMA Sp z o.o. Czaple 100, 80-298 Gdańsk, Poland tel.: +48 / 58 694 05 00, fax: +48 / 58 694 05 06 terma@termagroup.pl www.termagroup.pl...
