Summary of Contents for TERMA vario term UNICO ALL IN ONE
- Page 1 USER’S MANUAL Integrated thermostatic valve set with immersion tube UNICO ALL IN ONE...

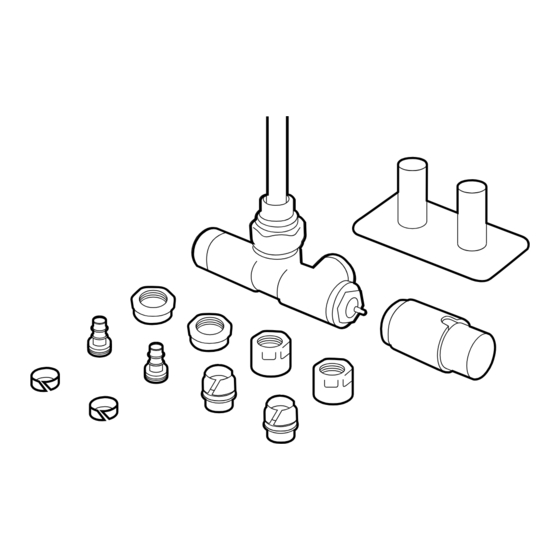

- Page 2 UNICO ALL IN ONE – INTEGRATED THERMOSTATIC VALVE SET The set contains: • Integrated thermostatic valve with immersion tube • Thermostatic head M30 × 1.5 • Pipe-masking set • 2 × adapter PEX, ALU-PEX 16×2 • 2 × adapter CU Ø 15 The valve should be installed in accordance with the specified direction of the heating medium supply and return.
- Page 3 On request, the set is available in all single-coating colours from the Terma palette, i.e. in all RAL colours and in most special colours, as well as in colours: Soft 9005, Soft 7047, Mat 7016 The set is not available in the RAL colours in SOFT and MAT finishes and in special colours: Black Crocodile New, White Gold.
-
Page 4: Technical Data
TECHNICAL DATA Operating temperature 120°C Nominal pressure 1MPa Heating medium water Test pressure 1,5 MPa Valve pressure differential 0,06 MPa Initial setting on lockshield valve insert Hysteresis 0,3 °K Initial settings and corresponding Kv coefficients for the thermostatic insert Proportional deviation 0 ,5K 0 ,75K 0,12... - Page 5 Warning: • Mount the thermostatic head on the return side (if the supply is on the right when looking at the radiator, the thermostatic head should be on its left side). • UNICO connections are factory set in the open position. •...
- Page 6 CORRECT ASSEMBLY OF THE UNICO CONNECTION TO THE INSTALLATION Assembly and setting details available at www.varioterm.pl – LEFT version Max. torque 3Nm when tightening RETURN SUPPLY – RIGHT version Max. torque 3Nm when tightening RETURN WARNING! SUPPLY The neck on the sleeve must be on the thermostatic head side User’s manual –...
- Page 7 DETAILED ASSEMBLY INSTRUCTIONS Set catalogue number: UGS02..CFK/L - left | UGS02..CFK/P - right Warning: Using a pipe union ratchet wrench, screw the coupling into the radiator manifold. When tightening, make sure not to damage the O-ring responsible for tightness between the radiator and the coupling.
- Page 8 powrót zasilanie protective kołpak ochronny kołpak Warning: ochronny The neck on the sleeve must be on the thermostatic head side. kołpak ochronny Warning: Before assembling the head, unscrew the protective cap - point 3. Warning: Flow adjustment in accordance with the Product Data Sheet (www.varioterm.pl) User’s manual –...
- Page 9 2.b (Cu 15x1) Warning: Supply on the lockshield insert side!! Before assembling the coupling, you can install a rosette and masking sleeves in the same colour as the connection (additional accessories). Remove any sharp material residue from the outside of the tube that may damage the O-rings inside the coupling when pushing it onto the tube.
-
Page 10: Warranty Terms
WARRANTY TERMS The manufacturer provides a warranty for a period of 3 years from the date of purchase. Defects revealed during the warranty period will be removed free of charge within 14 business days from the date of their notification. A defect or damage must be notified by email at reklamacje@varioterm.pl or by phone at (022) 8724214.
