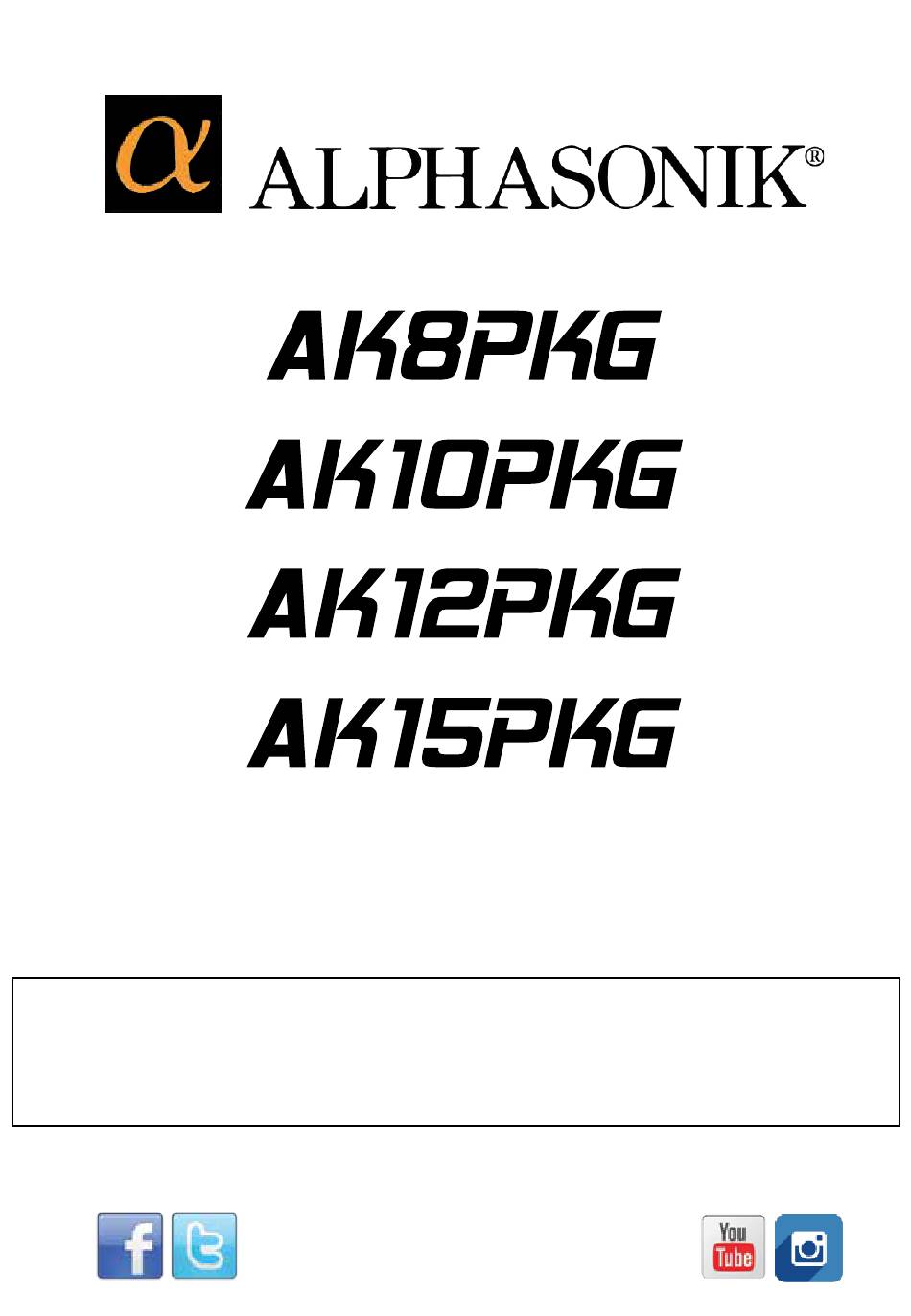

- Page 1 Be Revolutionary. Be Alphasonik Amplified PRO DJ Portable Speaker System Operating Instructions Please Retain Manual for Future Use and Reference www.alphasonik.com...
-
Page 2: Our History
Alphasonik’s spirit has resulted in a line of audio products built on a foundation of high quality, proven performance and sophisticated design elements. -
Page 3: Table Of Contents
Welcome to Alphasonik. This manual has been designed to provide information for the owner, salesperson, installer, and consumer. We at Alphasonik have worked very hard to make sure that all of the information in this manual is current, but, as we are constantly finding new ways to improve our products, this information is subject to change without notice. -
Page 4: Introduction
Congratulations on your purchase of the world’s finest brand of audio products. Here at Alphasonik, we are devoted to making our musical reproduction the very best, and we are pleased you have chosen our product. Through years of engineering expertise, hand craftsmanship, and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve. -
Page 5: Features And Specifications
White LED ring on woofer surround with on / off switch • Alphatough cabinet – durable & rugged material made to be on the road • Industrial strength rugged protective cabinet grill • LED indicators: white LED for power / orange LED for clipping www.alphasonik.com... - Page 6 Features & Specifications (CONTINUED) AK8PKG • 8” 800 Watts amplified PRO DJ ALPHABASS portable speaker system • (1) 3.5mm Auxilary Input • (1) XLR Output • (1) XLR Input • (1) Composite RCA audio input • (1) Banana plug (1/4”) input for wired microphones / electric guitars •...
- Page 7 60 Oz. HQ graphite Y-30 magnet • 2” VC kapton 2-layer copper voice coil • High compression 1” titanium driver with horn tweeter • Frequency response: 30Hz – 20kHz • Sensitivity: 114dB (±3dB) • Impedance: 8-ohm • Operation voltage: switchable 110 – 240 volts www.alphasonik.com...
-
Page 8: Input Wiring
Connect Jumper (XLR Plug) by the following order: • Terminal (-2, Left) with (-1, Right) = Negative • Terminal (+2, Top) with (+1, Bottom) = Positive • 1/4” Mono Jack Connector: • Tip = Signal (+) • Connector Sleeve = Signal (-) www.alphasonik.com... -
Page 9: Safety Overview
— Use appropriate mounting brackets to avoid bodily harm — Protect from any water or liquids — Never try to repair unit yourself — Keep out of reach of children, as there is high voltage and could cause injuries. www.alphasonik.com... -
Page 10: Operations
(According to music) Pairing a Bluetooth Device The Alphasonik Speaker includes Bluetooth functionality, and as such, is configured to automatically launch in “Discoverable Mode” upon launching the Bluetooth mode, to make the device itself detectable by other Bluetooth-Enabled devices, such as a mobile phone or tablet. -
Page 11: Controls (Overview)
16 Speaker Output: STC (Speaker Twist Connector) - Use to connect both speakers together (Cable Included) 17 Power LED: LED will illuminate when the power switch is in the on position. 18 Clipping: LED will blink when the input signal reaches saturation, reduce the input level to eliminate saturation. www.alphasonik.com... - Page 12 Controls (Continued) AK8PKG www.alphasonik.com...
- Page 13 Controls (Continued) AK10PKG www.alphasonik.com...
- Page 14 Controls (Continued) AK12PKG www.alphasonik.com...
- Page 15 Controls (Continued) AK15PKG www.alphasonik.com...
-
Page 16: Troubleshooting
Troubleshooting In the event that your Alphasonik speaker appears to require service, we ask that you first do a little troubleshooting to determine if the problem is actually the speaker, or a problem located in the area where the speaker was connected. -
Page 17: Disclaimer & Warranty
(Products purchased by consumers from an Authorized Alphasonik Dealer outside the United States are covered only by the Distributor of that specific country and are not covered by Alphasonik). You may inquire with Alphasonik to determine the corre- sponding authorized distributor in your country. - Page 18 - Any product that is new, and/or found to be in working condition - Burned Out Voice Coils caused by Neglectful Operation - L.E.D. indicators on electronics (Alphasonik will only replace L.E.D.(s) found to be defective at the time of purchase).
- Page 19 Alphasonik. Any product found to have no manufacturer defect will be returned to the sender at their cost.
- Page 20 Be Revolutionary. Be Alphasonik www.alphasonik.com...
