Sealey CST806 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PlEaSE rEaD tHESE iNStructioNS carEfully. NotE tHE SafE oPEratioNal rEQuirEmENtS, WarNiNgS & cautioNS.
uSE tHE ProDuct corrEctly aND WitH carE for tHE PurPoSE for WHicH it iS iNtENDED. failurE to Do So may cauSE
DamagE aND/or PErSoNal iNJury aND Will iNValiDatE tHE WarraNty. PlEaSE kEEP iNStructioNS SafE for futurE uSE.
1. SafEty iNStructioNS
 Always distribute the load evenly over the surface of the bed of
the platform truck.
 Do Not leave unattended, especially when loaded, unless the
wheels are chocked or the truck is otherwise secured.
 Do Not use platform truck on uneven ground and do not run
over kerbs or steps - use a ramp.
 Do Not allow others to ride on the platform truck.
 Do Not use the truck if any part is damaged, paying particular
attention to the wheels. Inspect it before use each time and
replace or repair damaged or worn parts immediately.
 check tyre pressures on the platform truck on a regular basis.
 Do Not over inflate the tyres. recommended pressure is 25psi.
 Do Not exceed maximum load capacity of 450kg.
 Do Not allow children to play on, stand upon or climb on the
cart.
 Be mindful of the location of the handle it may fall from the upright
position.
 chock the wheels when loading and unloading the cart.
 alWayS use caution when operating the platform truck. When
moving it, proceed at a safe speed, especially at corners where
there could be a danger of the load shifting. Extra care should be
taken on inclined surfaces.
 Do Not use the platform truck when you are tired or under the
influence of alcohol, drugs or intoxicating medication.
 Do Not store material on the platform truck for an extended
period of time.
2. SPEcificatioN
Maximum Load capacity:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450kg
Wheel size: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ø300mm x 90mm
Internal size (Length x Width x Depth): . . . . . . 1120 x 560 x 300mm
Platform Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .390mm
overall Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .650mm
InstructIons for:
Platform truck -
450kg caPacity
MoDEL no:
3. iNtroDuctioN
Heavy-duty rust resistant steel construction. smooth steering action
for easy manoeuvrability with soft rubber gripped handle and
pneumatic tyres for easy transportation over the toughest terrain. All
four sides drop down using locking pin function, for easy loading. can
also be used as a flatbed for transporting oversized items. fitted with
additional removable storage tray for carrying smaller items. suitable
for a variety of warehouse, office, garden and domestic applications.
Original Language Version
cSt806
cst806 Issue: 1 - 05/10/11

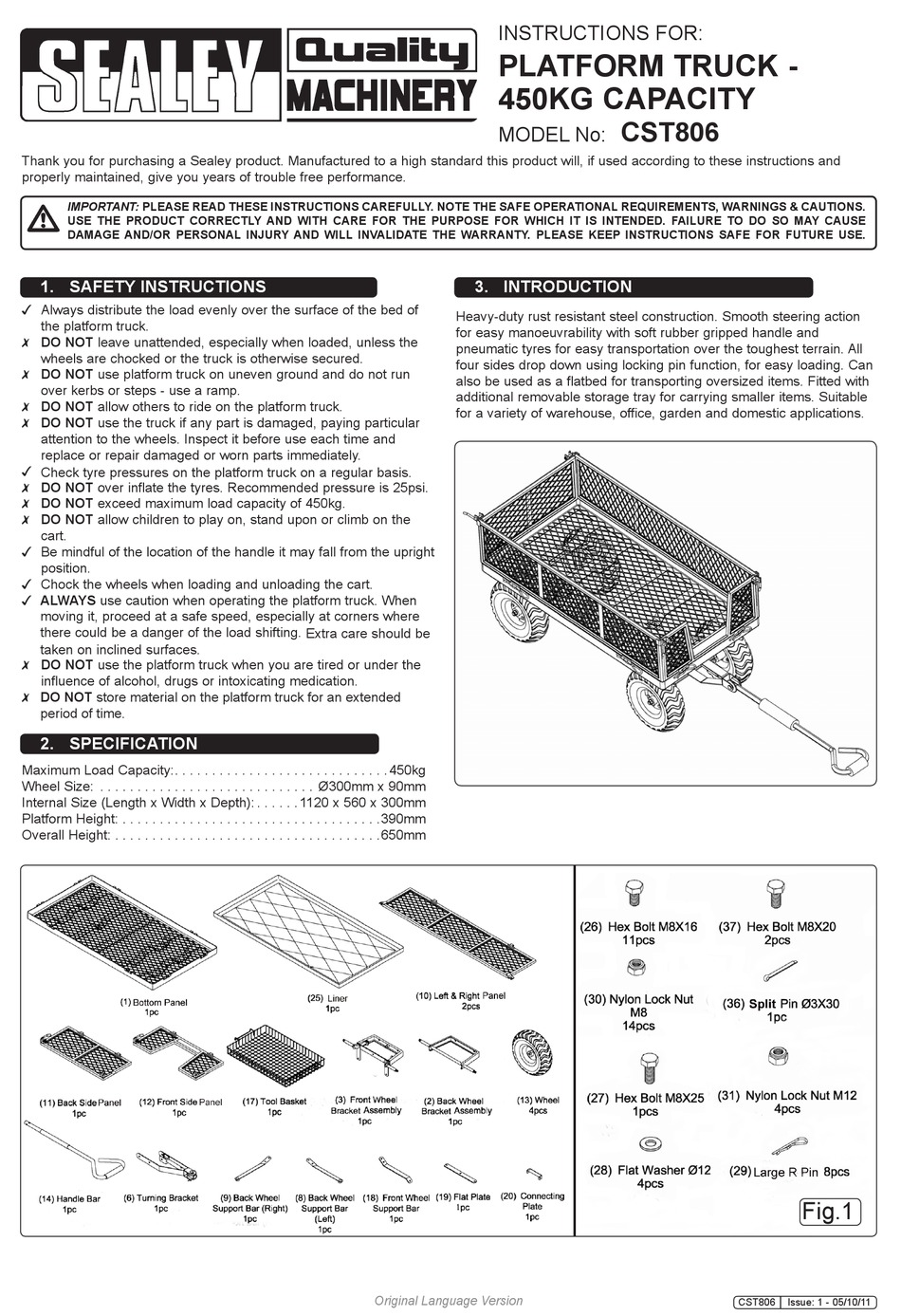

fig.1
