SECOLink PAS8 Series Manual page 6

Intruder alarm system
PAS808
PAS808M
PAS808R
PAS816
PAS832
X1
BAT
AC1 AC1 AC2 +BELLCOM -PGM +PGM COM CLK DAT +AUX Z1 COM Z2 +AUX Z3 COM Z4 +AUX Z5 COM Z6 +AUX Z7 COM Z8
The control panel is monitoring the operation of modules constantly. If the operation of module fails and the module gives no response to the control panel
commands, then the control panel turns OFF for a short time the PGM output +AUX that powers the modules in such a way trying to restart the module.
PAS808
PAS808M
PAS808R
PAS816
PAS832
X1
BAT
AC1 AC1 AC2 +BELLCOM -PGM +PGM COM CLK DAT +AUX Z1 COM Z2 +AUX Z3 COM Z4 +AUX Z5 COM Z6 +AUX Z7 COM Z8
The such wiring way ensures, that even in case of the short circuit between +AUX and COM the module will be able to execute the its main duty - reporting
to the Central Monitoring station or to the user. If the module is wired under this diagram, the control panel can not execute module monitoring and restore its
normal operation in case of failures.
RX-DAT +13,8 V
TX-CLK COM
Attention! The consumption current
of the transmitter should not exceed
of 3A. The power supply circuit has
no short-circuit protection. In case of
short circuit the PCB damage is
possible.
Page 6

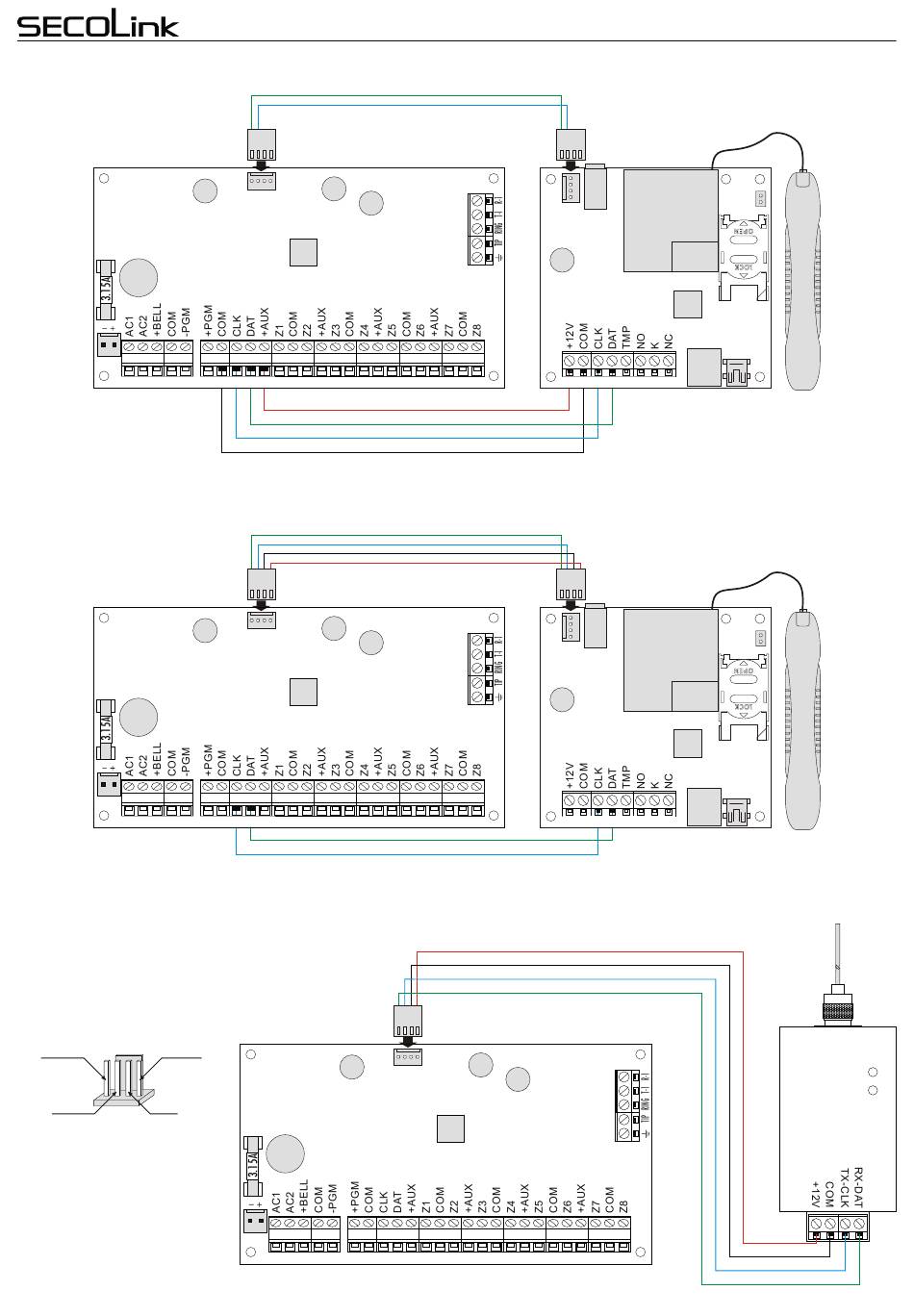

Wiring of GSV2 (with monitoring of modules)
Wiring of GSV2 (without monitoring of modules)
Wiring of compatible transmitter via SERIAL connector
PAS808
PAS808M
PAS808R
PAS816
PAS832
X1
BAT
AC1 AC1 AC2 +BELLCOM -PGM +PGM COM CLK DAT +AUX Z1 COM Z2 +AUX Z3 COM Z4 +AUX Z5 COM Z6 +AUX Z7 COM Z8
R-1
T-1
RING
TIP
+12V COM CLK DAT TMP NO K NC
+AUX
DAT
CLK
COM
R-1
T-1
RING
TIP
+12V COM CLK DAT TMP NO K NC
DAT
CLK
Control Panels PAS8xx Control Panels PAS8xx
Short wiring manual – basic information
GSV2M, GSV2C
GSV2M, GSV2C
R-1
T-1
RING
TIP
Transmitter
