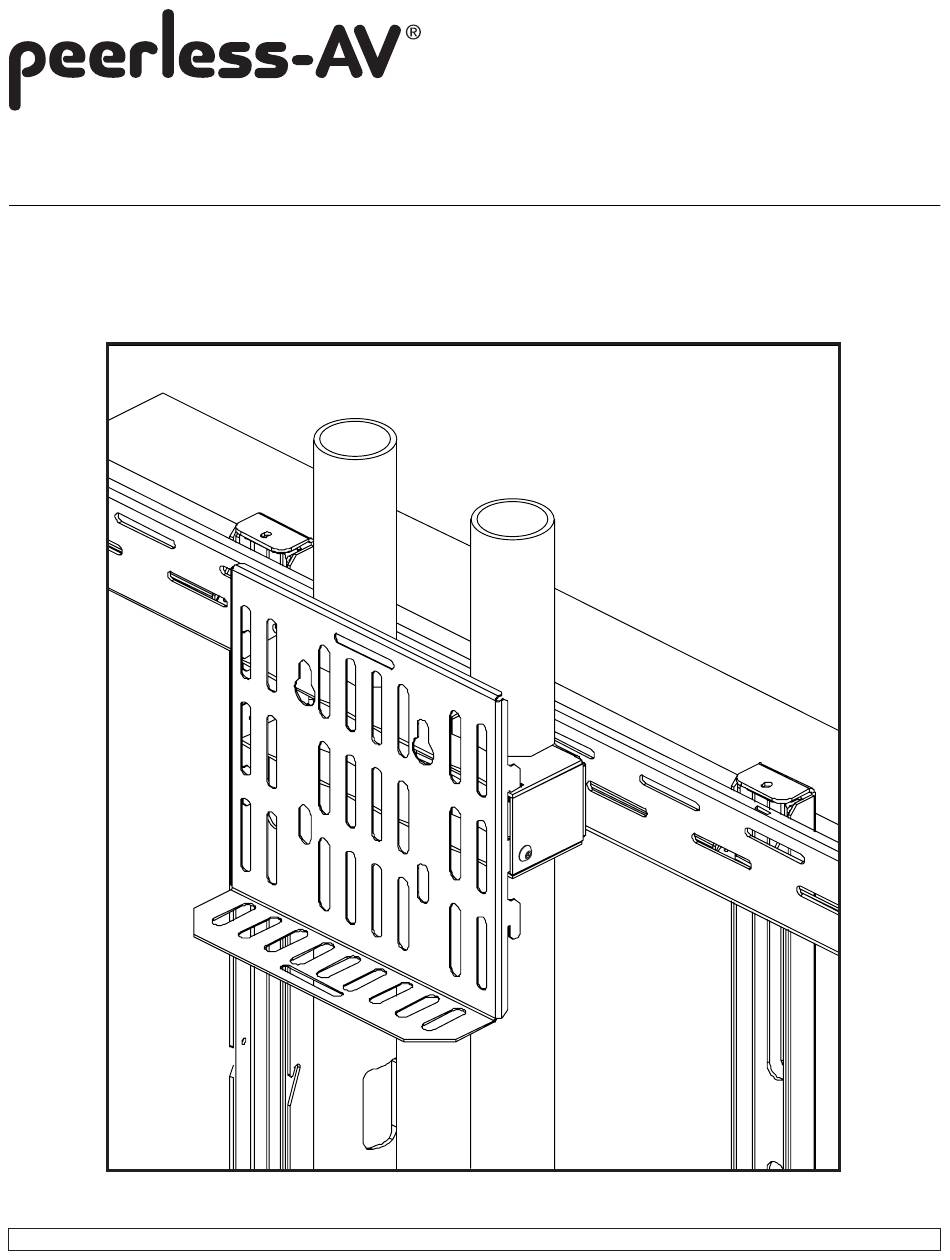

- Page 1 Installation and Assembly: Media Storage Shelf for FPZ-600 and DS-VWS546-2X2 Model: ACC340 1 of 5 ISSUED: 01-16-13 SHEET #: 125-9400-2 05-20-13...
- Page 2 NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
- Page 3 SAFETY BELT Connect belt with buckle to belt without buckle. Continue by sliding one belt guide and one tri-bar belt clip on each side of the buckle. Refer to drawing below. NOTE LINES FACES UP BOTTOM BELT GUIDE TRI-BAR CLIP Place belt assembly over electronic component. Note: keep buckle closer to left side of the electronic component to allow for movement when tightening belt assembly.
- Page 4 Take belt and hold it so that the tri-bar belt clip (A) is facing as illustrated. Feed belt through the slot you have chosen. Now feed belt through belt clip as shown. Repeat on other side of tray using other belt.

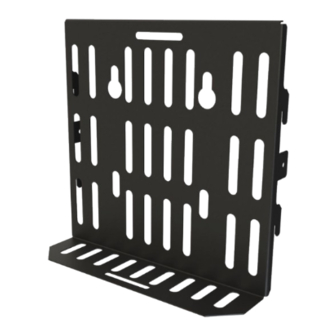

- Page 5 MEDIA SHELF ATTACHMENT Secure media shelf (A) to mount using two M5 x 10mm screws (B). MEDIA SHELF ATTACHMENT TO ACC604 Secure media shelf (A) to ACC604 (supplied separately) using two M5 x 10mm screws (B) as shown. ACC604 NOT SUPPLIED 5 of 5 ISSUED: 01-16-13 SHEET #: 125-9400-2 05-20-13...
