  • Page 1 20°C 22°C 21°C ADDITIONAL ZONE CONTROL C5 INSTALLATION MANUAL...

  • Page 2: Table Of Contents

    ..............14 UAB KOMFOVENT reserves the right to make changes without prior notice...

  • Page 3: Introduction

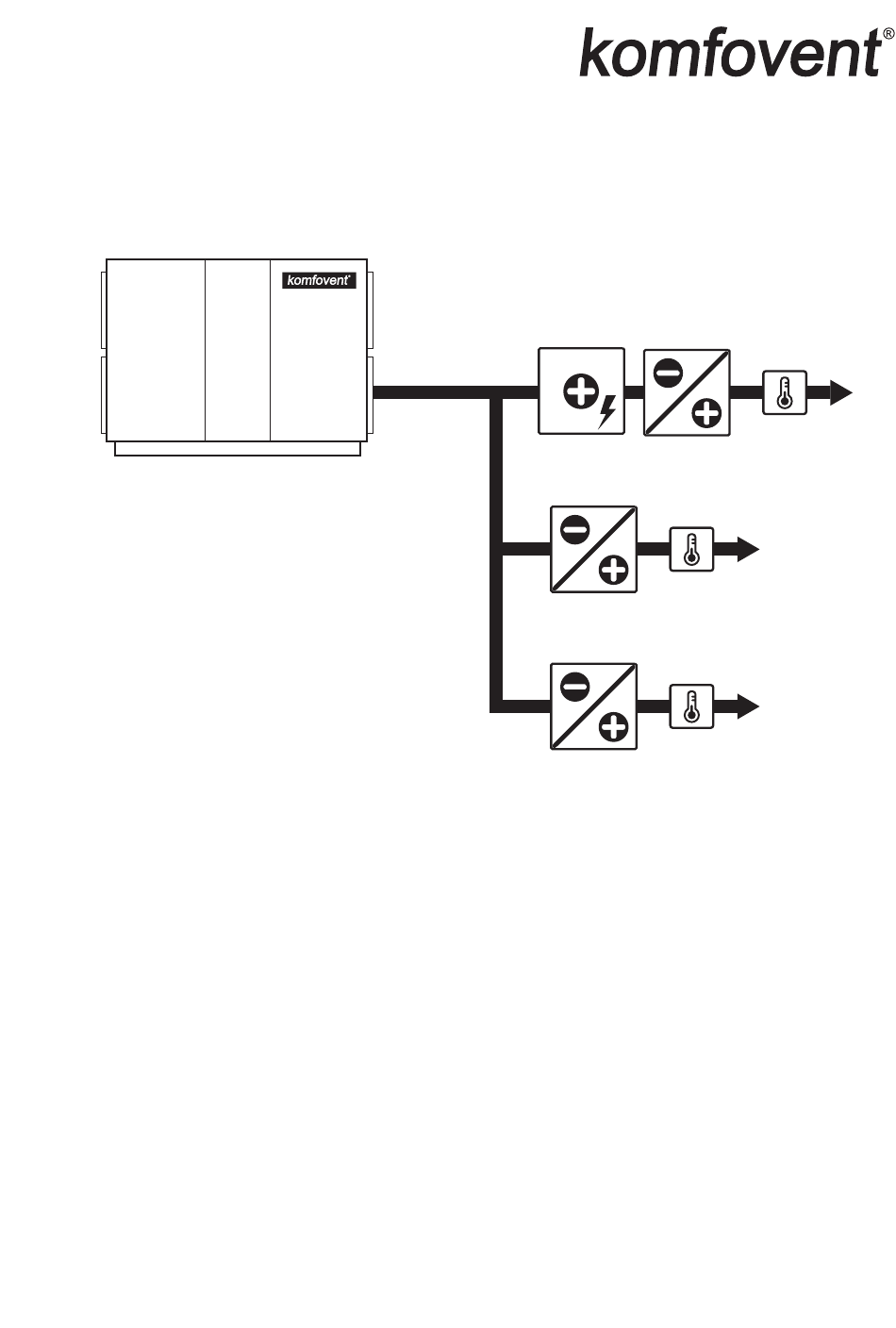

    All illustrations in this manual are for explanation purposes and may differ from actual product. Additional zone control function is available for Verso Standard and Verso Pro air handling units with C5 controller. This function allows to have up to three different temperature zones in the same ventilation system. Temperature in the main zone will be maintained by the existing heaters/coolers of the AHU.

  • Page 4: Application Examples For Verso Pro Units

    * If complete Verso Pro electrical heater section is used, additional zone control modules are not needed and PM boards inside of electrical heater section will be used for the same purpose. UAB KOMFOVENT reserves the right to make changes without prior notice ZC-19-02...
  • Page 5 * If complete Verso Pro electrical heater section is used, additional zone control modules are not needed and PM boards inside of electrical heater section will be used for the same purpose. UAB KOMFOVENT reserves the right to make changes without prior notice ZC-19-02...

  • Page 6: Installation

    * If complete Verso Pro electrical heater section is used, additional zone control modules are not needed and PM boards inside of electrical heater section will be used for the same purpose. UAB KOMFOVENT reserves the right to make changes without prior notice ZC-19-02...

  • Page 7: Zone Module Connection To Verso Standard Units

    To Verso Standard AHU zone module must be connected to external connection terminals of C5 controller board. Depend- ing on the AHU model, C5 board is located in the heat exchanger section or in the automation box (for C5 board position please refer to the “Verso Standard installation manual”).

  • Page 8: Zone Module Connection To Verso Pro Units

    PD2 box or from the first zone module. Maximum length of the cable from C5 board to the last zone module cannot exceed 150 m. Zone control module is not needed, if complete Verso Pro electrical heater section is used as additional temperature zone heater or additional heating step (see application examples in section 1.2.).

  • Page 9: Configuration And Wiring

    1 2 3 4 5 Zone 2 Cooling 1 2 3 4 5 Heating+Cooling 1 2 3 4 5 Combi-coil UAB KOMFOVENT reserves the right to make changes without prior notice (heating/cooling) ZC-19-02 1 2 3 4 5 Heating 1 2 3 4 5...

  • Page 10: Zone Module Configuration For Water Heater/Cooler

    25 26 27 28 29 30 31 32 33 34 35 36 1 2 3 4 5 6 7 Temperature setpoint UAB KOMFOVENT reserves the right to make changes without prior notice (11..50°C) 1 2 3 4 5 6 7...

  • Page 11: Zone Module Configuration For Modulating Type Direct Expansion (Dx) Units

    2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 UAB KOMFOVENT reserves the right to make changes without prior notice ZC-19-02...

  • Page 12: Zone Module Configuration For On/Off Type Direct Expansion (Dx) Units

    2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 UAB KOMFOVENT reserves the right to make changes without prior notice ZC-19-02...

  • Page 13: Zone Module Configuration For Additional Electrical Heater

    2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 UAB KOMFOVENT reserves the right to make changes without prior notice ZC-19-02...

  • Page 14: Settings On The C5 Controller

    Enable Stage 4 Setpoint 20.0 °C Electric Stage 5 Heat pump Stage 6 Independent Min. switching delay between heating/cooling 2ND ADDITIONAL ZONE CONTROL (ZN2) UAB KOMFOVENT reserves the right to make changes without prior notice ZC-19-02 Enable Setpoint 22.0 °C...
  • Page 15 None Humidity control unit Heat pump Additional zone 1 Additional zone 2 CF defrost module HEATING/COOLING SEQUENCE Stage 1 Water Zone1 Stage 2 Zone2 Stage 3 UAB KOMFOVENT reserves the right to make changes without prior notice ZC-19-02 Stage 4...
