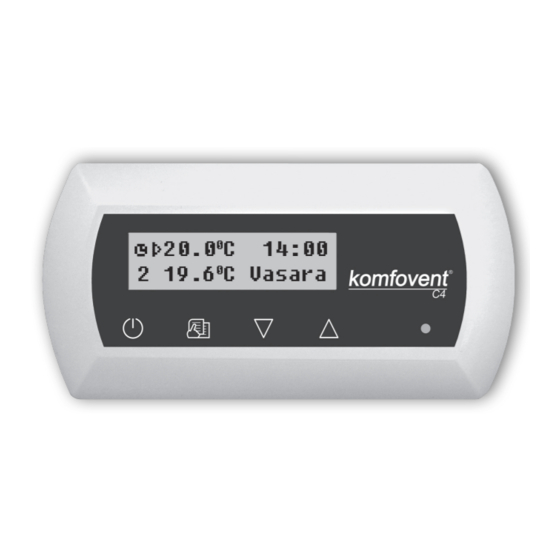

Komfovent C4 User Manual

Air handling unit controller
Hide thumbs Also See for C4:

Advertisement

Quick Links

USER MANUAL:
HOW TO CONNECT TO C4 CONTROLLER
USING KOMFOVENT HOME APP

Advertisement

loading

Related Manuals for Komfovent C4

Summary of Contents for Komfovent C4

  • Page 1 USER MANUAL: HOW TO CONNECT TO C4 CONTROLLER USING KOMFOVENT HOME APP...

  • Page 2: Table Of Contents

    THROUGH THE PHONE, USING THE ROUTER..................3 2. CONNECTING THE ROUTER TO THE AIR HANDLING UNIT ..............4 3. CONNECTION TO THE AIR HANDLING UNIT WITH KOMFOVENT HOME APP ........4 4. CONCEPTS OF EXTERNAL NETWORK AND LOCAL AREA NETWORK ..........5 5.

  • Page 3: Access To The Air Handling Unit Parameters In The Local Area Network Through The Phone, Using The Router

    All Komfovent air handling unit settings are available through the web site integrated in Ping2, at the IP address 192.168.0.29, which is set by default at the factory. There are several methods for connection to the controller scheme based on the way of connection.

  • Page 4: Connecting The Router To The Air Handling Unit

    (192.168.1.29), and the Port number (502), then click ü . The app will add it to the list. 4. Select an object created from the list and click the Exit arrow, then confirm the changes. UAB KOMFOVENT we reserve the right to make changes without prior notice C4KH2-17-06...

  • Page 5: Concepts Of External Network And Local Area Network

    When you leave, the connection to the ventilation unit will be terminated. UAB KOMFOVENT we reserve the right to make changes without prior notice C4KH2-17-06...

  • Page 6: Access To The Air Handling Unit Parameters Online (In The External Network) Through The Phone, Using The Router

    (internet). COMPLEXITY (Situation 1 – the phone on the Internet wants to reach the Komfovent air handling unit) First, create a route – tunnel in the router (Port forwarding), and indicate in it: the way in which the device from the external network will communicate with the device in the router’s local area network.
  • Page 7 Let’s have a look at what’s going on in the picture above. The phone 1, using the Komfovent home app, wirelessly (GSM/WiFi) connects to the Internet by specifying the router address 84.15.200.253 and the Port number, for example: 4502.
